150t/h Granite Crushing Plant

    Granite is a good material for construction with many good advantages such as hard texture, high strength, weather resistance, corrosion resistance, abrasion resistance, and low water absorption. Because of the good hardness and large shape of granite, generally a crusher cannot solve it, so a secondary high-hardness crushing system is needed. The granite crushing production line designed by Mecru is mainly composed of ZSW-3896 vibrating feeder, C96 jaw crusher, CH440 cone crusher, Yk2460 vibrating screen, belt conveyor, centralized electric control and other equipment.

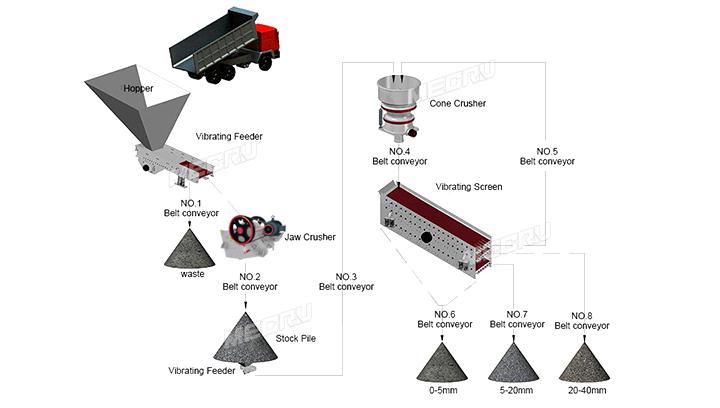

    Large granite stones are fed into the jaw crusher by vibrating feeder through the silo for coarse crushing. The coarse crushed stones are sent to the cone crusher by the belt conveyor for further crushing; and then the finely crushed stones are transported by the belt conveyor Feed into the vibrating screen for sieving, finally 0-5mm, 5-20mm, 20-40mm stones were screened out. Stones that meet the particle size requirements are sent to the finished product pile by the finished tape conveyor; stones that do not meet the particle size requirements are returned to the cone crusher for crushing again. This process forms a closed circuit multiple cycles. The particle size of the finished product can be combined and graded according to the needs of users. To protect the environment, auxiliary dust removal equipment can be equipped.

Advantage

•

  High degree of automation and large crushing ratio: The stone crushing production line has many advantages such as high degree of automation, large crushing ratio, high production efficiency and large processing capacity. The crushed product has a cubic shape with low needle content, no internal cracks, and high compressive strength.

•

  Small loss and long service life: the equipment is easy to maintain. And the wearing parts use the current domestic high-strength wear-resistant materials with small loss and long service life, which can bring considerable economic benefits to customers.

•

  Wide range of application: The designed stone crushing production line has been successfully applied to the crushing of limestone, basalt, granite, cobblestone and other rocks. The quality of the finished product after crushing completely reaches the standard of GB14685-2001, which could be used as qualified aggregates in high-grade highway, railway, water conservancy, concrete mixing plants.

•

  Strong applicability: it can meet various grading requirements, such as coarse crushing, medium crushing and fine crushing, and it can build various crushing production lines of different requirements.

•
