Introduction
Calcination and roasting is an intense process involving high temperatures, heavy loads and significant thermal stress. The stability of Mecru rotary kiln can effectively improve production efficiency and reduce operating costs. According to the types of materials processed, Mecru rotary kilns can be divided into cement calcining kilns, metallurgical chemical kilns and lime calcining kilns.
Application Areas

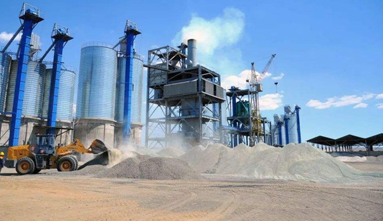

Cement Production

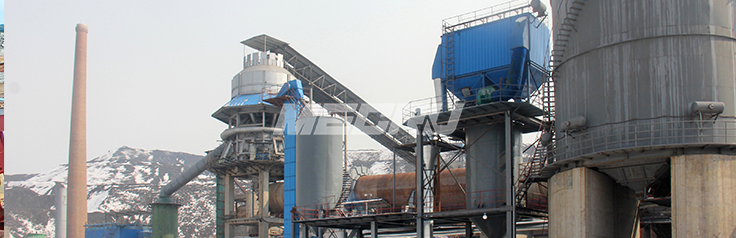

Lime Production

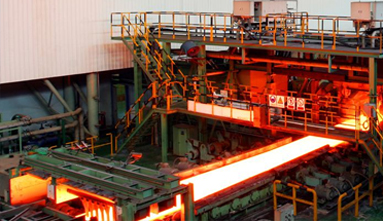

Metallurgical Industry

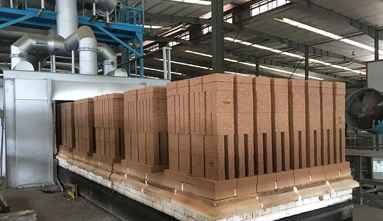

Refractory Materials Production
Technical Parameters
| Model | Technology Parameters | Main Reducer | Main Motor Power | Catch Wheel | Catch Points | Weight(t) | |||||
| Rotation Speed(r/min) | Inclination(%) | Capacity(t/d) | Model | Speed Ratio | Model | Power(kw) | Speed(r/min) | ||||
| Φ1.9/1.6x36 | 0.53-1.59 | 4 | 2.5-3 | JZQ750-1 | 45.58 | JZT-72-4 | 30 | 1200/400 | Machinery | 3 | 53 |
| Φ2.1/1.8x36 | 0.5-1.51 | 4 | 4 | UT2-110 | 163.36 | JZS-81 | 30/10 | 1410/470 | -- | 3 | 75 |
| Φ1.2x25 | 0.5-1.6 | 3 | PM650 | 40.17 | JZTY71-4 | 22 | 1200/120 | -- | 3 | 34 | |
| Φ1.6x32 | 0.158-0.258 | 3 | PM750 | 48.57 | JZJY61-4 | 15 | 1200/120 | -- | 3 | 46.82 | |
| Φ1.8x45 | 0.66-1.98 | 4 | 3.5 | UT2-110 | 163.36 | JZS-81 | 10/30 | 1410/470 | -- | 3 | 80 |
| Φ2.2x50 | 0.125-1.25 | 3.5 | 4 | ZS145-11 | 157 | YCT280-4A | 30 | 1320/132 | -- | 3 | 130.71 |
| Φ2.5x50 | 0.516-1.549 | 3.5 | 5.5 | ZS165-7 | 99.96 | YCT355-4A | 55 | 1320/440 | -- | 3 | 167.5 |
| Φ3x48 | 0.3309-3.309 | 3.5 | 35 | ZL130-14 | 32.11 | ZSN4-250-21B | 90 | 1000/100 | -- | 3 | 237 |
| Φ3.2x50 | 0.398-3.975 | 3.5 | 50 | ZL130-16 | 40.85 | ZSN4-280-11B | 190 | 1500/150 | -- | 3 | 263 |
| Φ3.3x52 | 0.391-3.91 | 3.5 | 50 | ZSY500-28 | 27.707 | ZSN4-135-082 | 190 | 1000/100 | -- | 3 | 280.8 |
| Φ4x60 | 0.396-3.96 | 3.5 | 104 | ZSY630-35.5 | 34.601 | ZSN4-355-092 | 315 | 1000/100 | Hudraulic | 3 | 487.5 |
| Φ4.2x60 | 0.4165-4.165 | 3.5 | 116 | ZSY710-35.5 | 35.526 | ZSN4-355-12 | 420 | 1000/100 | -- | 3 | 576.1 |
| Φ4.3x62 | 0.398-3.98 | 3.5 | 125 | ZSY710-35.5 | 35.714 | ZSN4-355-12 | 420 | 1000/100 | -- | 3 | 598.5 |
| Φ4.8x74 | 0.35-4 | 4 | 208 | JH710C-SW305-40 | 42.226 | ZSN4-400-092 | 630 | 1500/130 | -- | 3 | 841 |
Note：Technical parameters may change, please contact us for the latest values.
Product Advantages
Full negative pressure production, smooth gas flow, stable production operation and high safety.
The finished product has good quality and high output, which is very suitable for large-scale production of large-scale chemical materials.
Centralized control system, high degree of automation, few on-site operators, and high labor efficiency.
The process is stable, the quality of fired clinker is high, the strength level of clinker is high, there is less dust in the grinding process, and there is less fly ash at the end of the kiln.
Work Principle
The motor drives the rotary kiln to rotate. After the material is preheated by the preheater, it enters the rotary kiln through the kiln tail for calcination. The calcined raw material enters the cooler through the kiln head cover for cooling, and then is discharged.
Customer Case

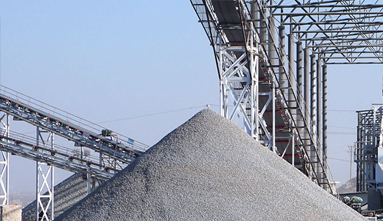

Cement production line is a production line composed of a series of equipment for producing cement. It is mainly compose...
Read more
