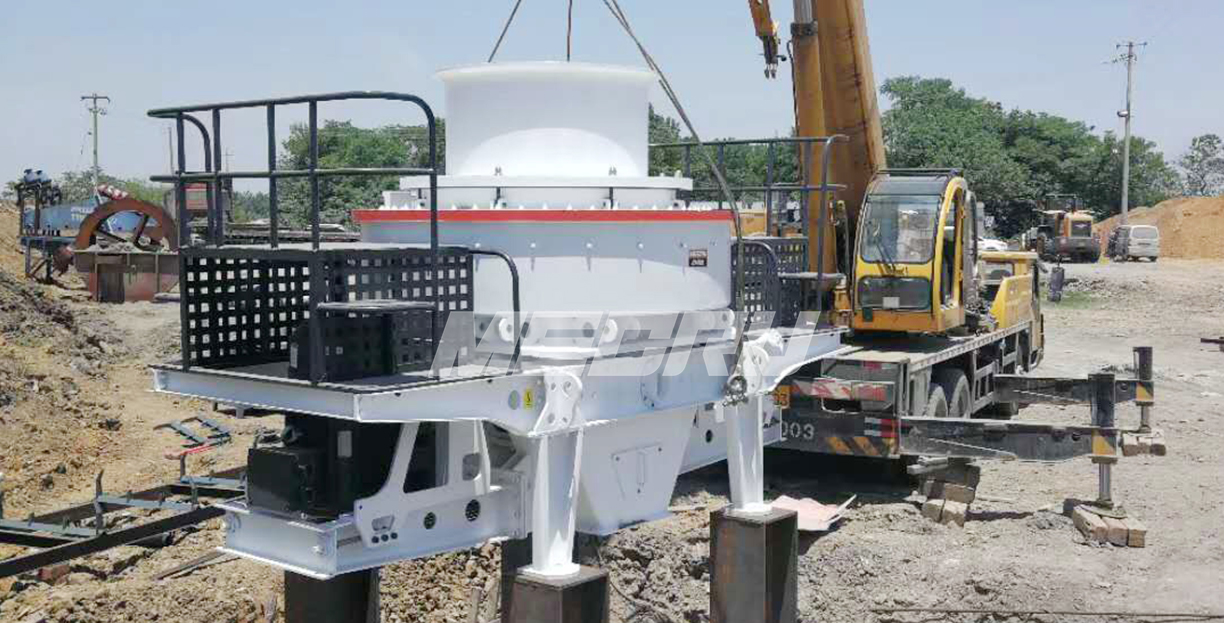

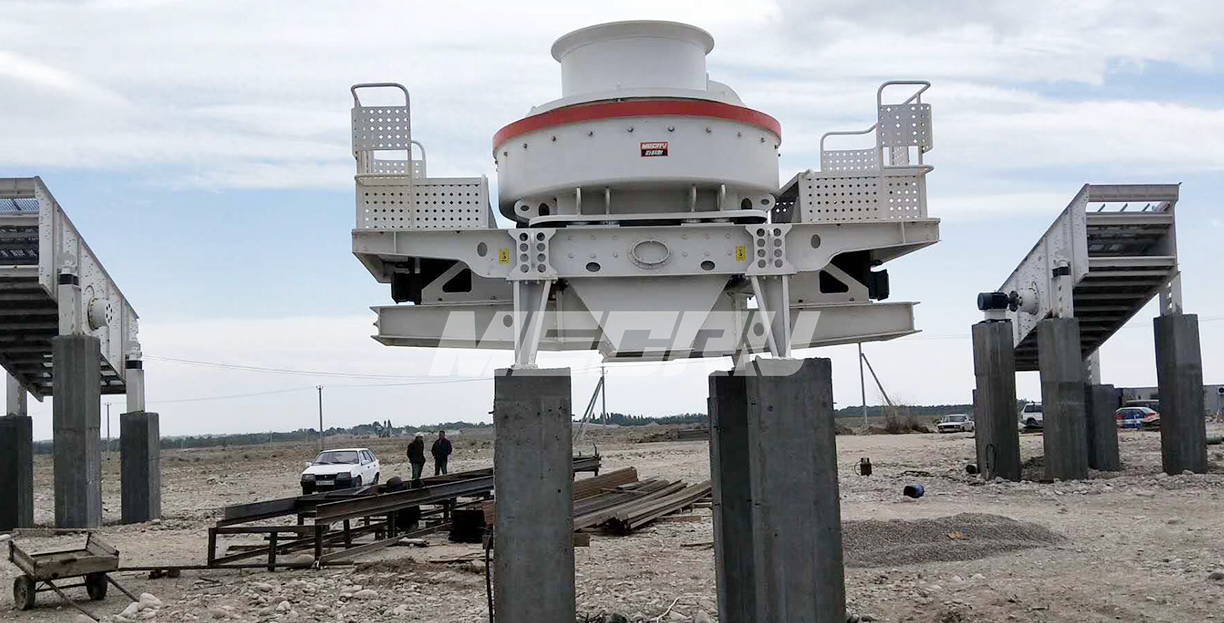

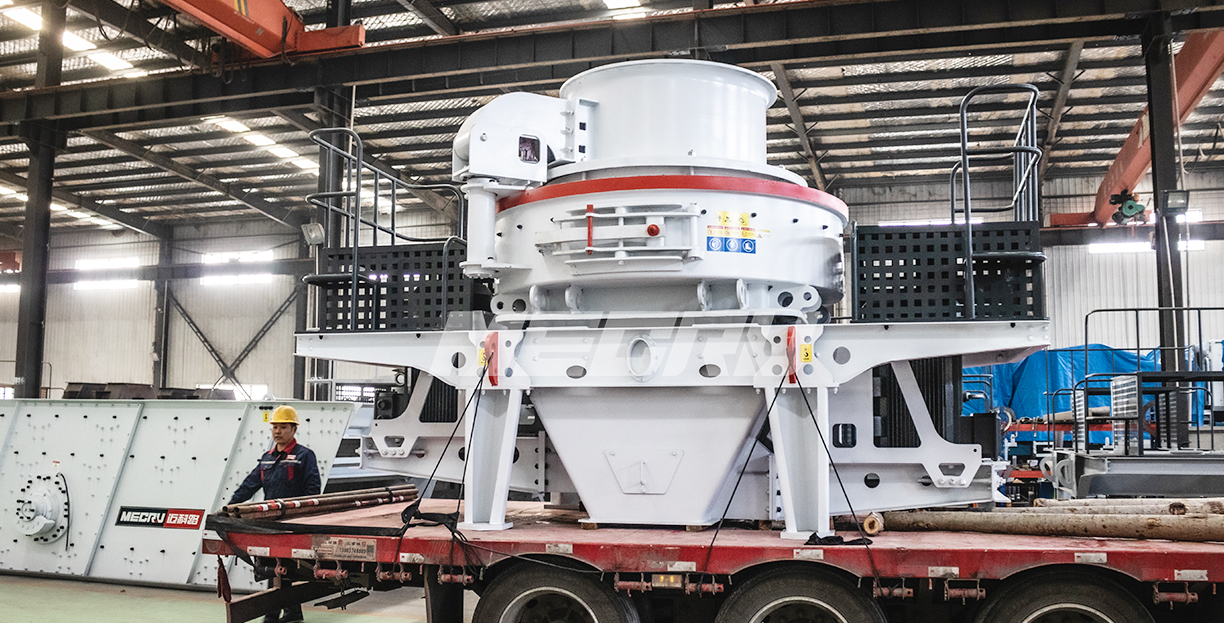

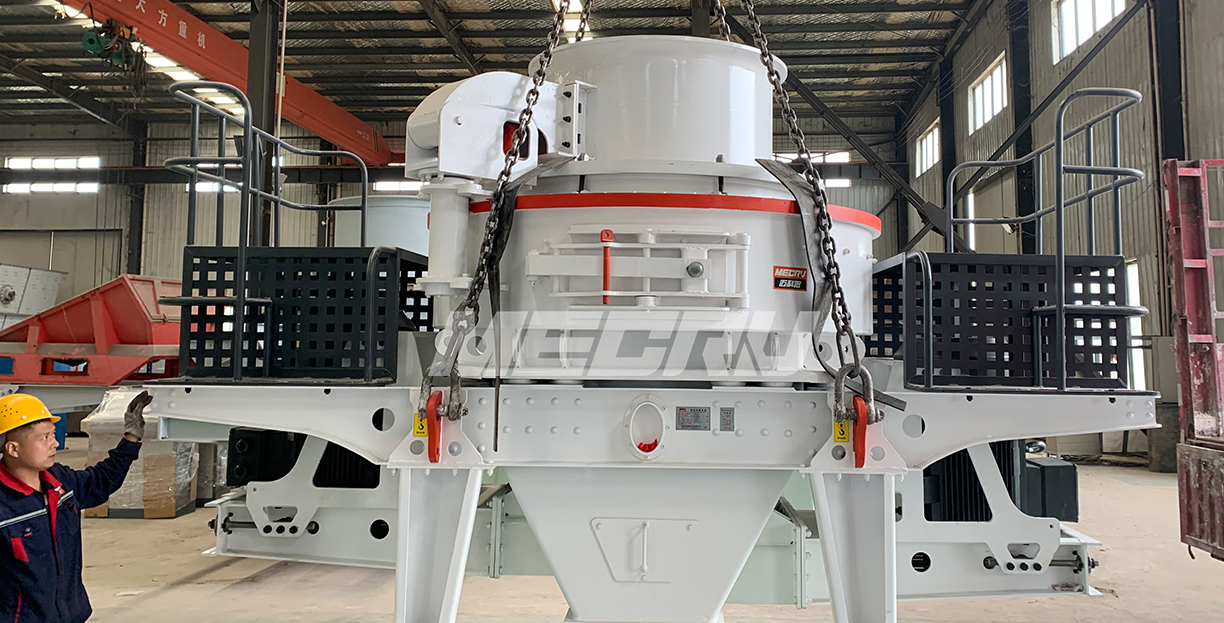

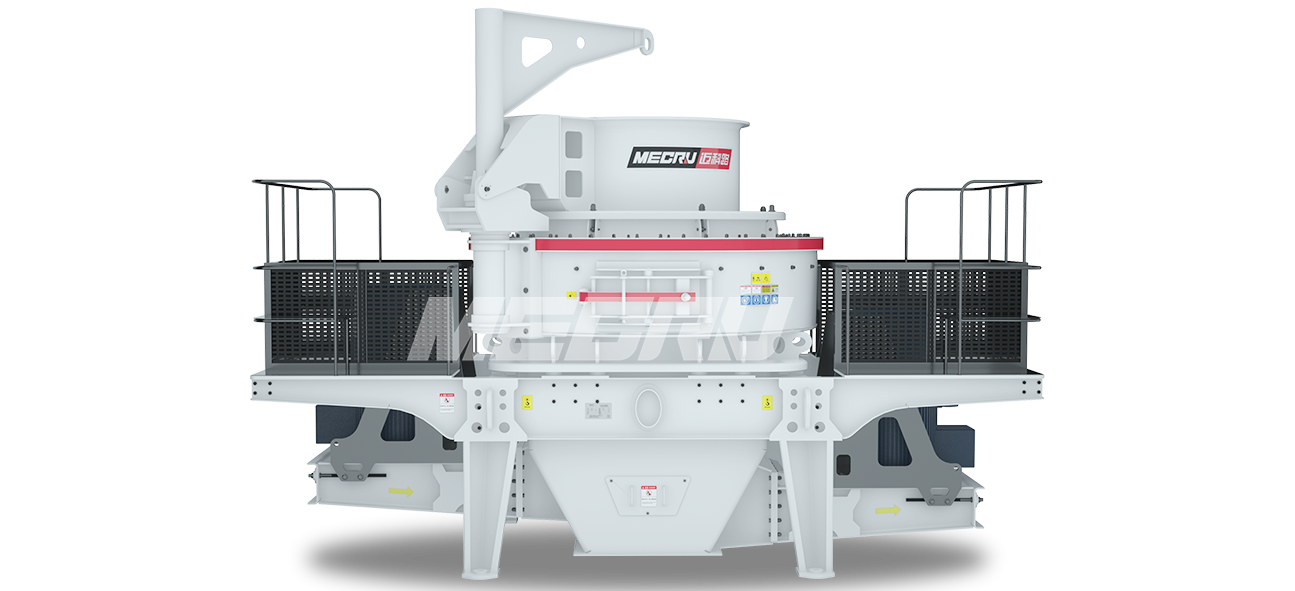

VSI Sand Making Machine

30-60mm

Feeding size

60-580t/h

Capacity

Applicable materials: river pebbles, quartz stone, limestone, cobblestone, coal gangue, basalt, granite, diabase, etc.

Crushing + Sand Making + Shaping

Get a Quote

Product profile

Mecru Vertical Shaft Impact Sand Making Machine (VSI Crusher) integrates three functions of crushing, sand making and shaping. The sand making machine is widely used in metal and non-metal ores, building materials, artificial sand and various metallurgical slag and other materials. The finished sand has good shape, reasonable gradation and stable output. The impact angle of materials in the crushing chamber of Mecru's VSI sand making machine has been specially designed to reduce the wear of wearing parts, which can effectively reduce the cost of equipment use.

Product Advantages

One machine is multi-purpose, using a combination of multiple feeding methods and multiple crushing chamber types, combining the "stone hitting stone" and "stone hitting iron" crushing principles, and enabling the two crusher modes to be flexibly converted to each other. Greatly improve the operating efficiency of crushing sand.

The use of advanced hydraulic cover opening device greatly simplifies the daily mechanical inspection and maintenance process. It is also equipped with an automatic detection and alarm device, which is more stable and safe in operation.

The whole machine adopts high-quality materials and advanced process technology to forge the equipment, which greatly improves the internal quality and appearance quality of the equipment. While reducing the wear rate and failure rate, it can increase the output by 30%.

The product is cubic, with low content of needles and little iron pollution.

Technical Parameters

Model	Max feeder size(mm)		Process ablity(t/h)		Speed of main shaft(r/min)	power(kw)
Model	Hard material	Soft material	Making sand amount	traffic shaping	Speed of main shaft(r/min)	power(kw)
CI7615	≤30	≤35	70-140	150-280	1700-1900	110-150
CI8522	≤35	≤45	130-200	220-300	1500-1700	180-264
CI9532	≤40	≤50	190-280	320-360	1100-1400	320-400
CI1145	≤45	≤55	260-350	420-460	1000-1300	400-500
CI1263	≤50	≤60	450-490	500-580	900-1200	315x2
Thin oil lubrication station	Double oil pump motor power		2x0.25kw
	Safty protection		Double complementary oil supply;Intelligent oil supply short circuit automatic stop;Intelligent control of water cooling;Winter motor heating starts.
	Fuel tank heating power		2kw
	Dimensions (L x W x H)(mm)		825x530x1280

Note：Any change of technical data shall not be advised additionally.

Application Areas

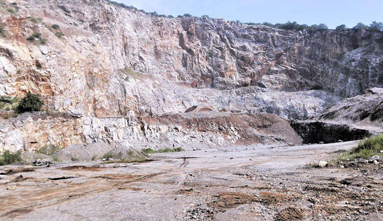

Mines and Quarries

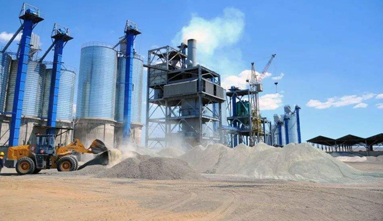

Cement Production
Building Construction
Road Construction

VSI Sand Making Machine

Work Principle

The stone falls directly from the upper part of the machine into the high-speed rotating turntable. Under the action of high-speed centrifugal force, it shunts another part of the target stone around the turntable in an umbrella shape to produce high-speed impact and high-density crushing. After the stones hit each other, And it will form a vortex motion between the turntable and the casing, causing multiple mutual striking, friction, and crushing, and it will be discharged directly from the lower part. Multiple closed loops are formed and controlled by the screening equipment to achieve the required particle size.

Customer Case

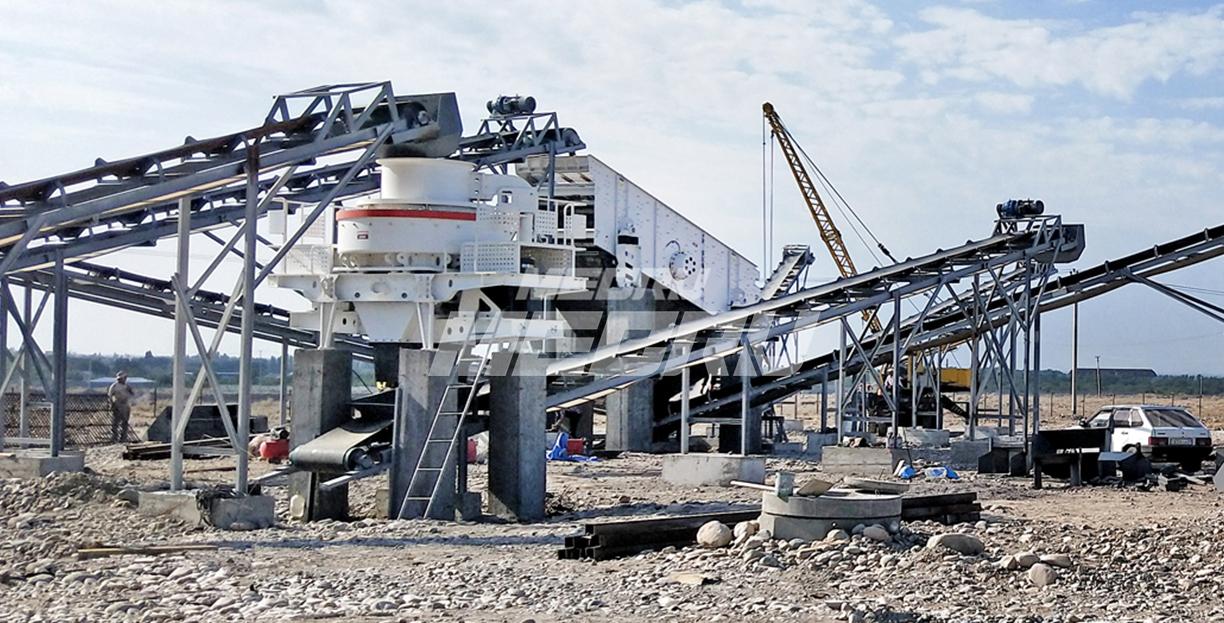

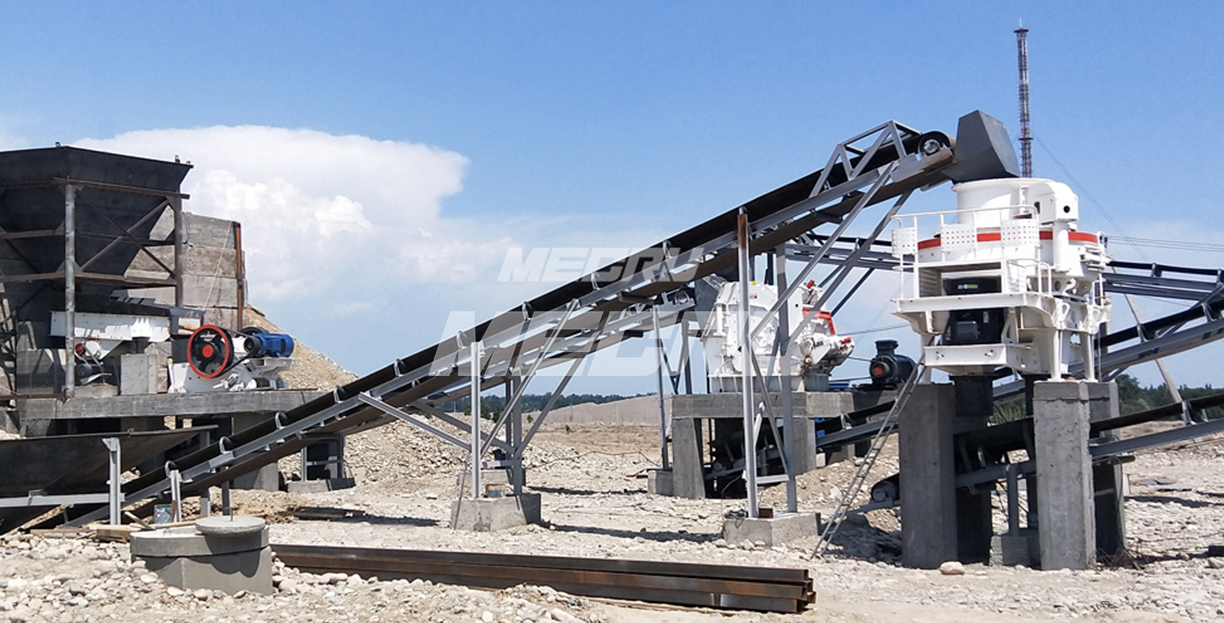

200tph limestone sand production line in Guizhou

The project is located in a mining area in Guizhou. With the development of national infrastructure, mechanism sand has ...

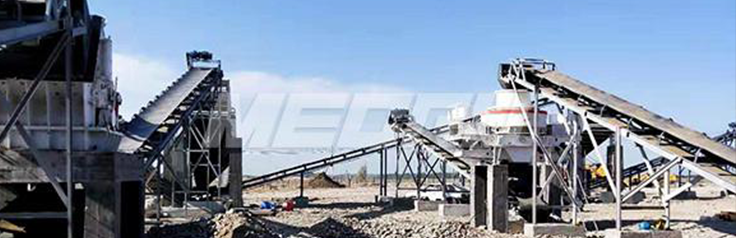

Anhui Liu An 250tph river pebble sand-making proje...

River pebbles is a common mechanism sand project. Because the acquisition of river pebble raw materials is relatively si...

Anhui Liu An 250tph river pebble sand-making project
