Product profile

Mining ball mills are used for grinding various ores and are widely used. Based on decades of customer experience, Mecru continuously improves the performance of the ball mill, so that the ball mill can achieve high stability, long service life and high grinding efficiency. Mecru mining ball mills have stable performance and complete types:

1.According to the grinding medium, it can be divided into ball mills and rod mills;

2.According to the grinding method, it can be divided into wet grinding and dry grinding;

3.According to the unloading method, it can be divided into grid type and overflow type.

Product Advantages

The rolling bearing is used instead of the sliding bearing, the friction force is greatly reduced, the starting is easy, and the energy saving is remarkable.

The use of high-strength and wear-resistant combined hammer head can save materials and reduce waste.

The working principle of the ball mill is relatively advanced, the grinding efficiency of the equipment is very high in the process of grinding materials, which improves the grinding speed of the entire process, and thus also increases the output.

The probability of failure is very low, which reduces the customer's operating costs and maintenance costs to a certain extent.

Technical Parameters

wet overflow ball mill	Cylinder RPM(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity(t/h)	Motor		Dimension(LxWxH)(mm)	Weight(t)
wet overflow ball mill	Cylinder RPM(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity(t/h)	Model	Power(kw)	Dimension(LxWxH)(mm)	Weight(t)
MQY600x1800	45.5	0.5	≤10	0.074-0.5	0.2-0.5	Y160M-6	7.5	3100x1624x1070	2.5
MQY900x1800	38	1.8	≤25	0.074-0.6	0.8-1	Y180L-6	15	4196x2300x1985	5.8
MQY900x3000	37.4	2.7	≤25	0.074-0.3	0.8-1.5	Y200L2-6	22	6170x2034x2074	7.5
MQY1200x2400	32	4.8	≤20	0.074-0.6	1.5-2	Y225M-6	30	6520x2850x2540	9.8
MQY1200x4500	30	5.2	≤25	0.074-0.6	1.5-6	Y280S-6	45	8820x3070x2630	15.5
MQY1300x4000	36	5.8	≤25	0.074-0.4	2-6	Y280S-8	45	7661x2720x2100	16.7
MQY1500x3500	28.8	8.3	≤25	0.074-0.6	3-5	YR280M-8	75	8500x3100x2100	17.6
MQY1500x4500	28.8	10	≤25	0.074-0.4	3-6	JR126-8	110	9680x3200x2114	22
MQY1500x5700	28.8	12	≤25	0.074-0.4	3-8	JR126-8	110	10440x3200x2114	26
MQY1500x6400	28.8	13	≤25	0.074-0.4	3-9	JR127-8	130	11140x3200x2114	29
MQY1830x3600	24.5	12	≤25	0.074-0.4	4-20	JR127-8	130	7880x4000x3370	31
MQY1830x5400	24.5	15	≤25	0.074-0.4	5-25	JR137-8	210	9880x4685x3750	33
MQY1830x6400	24.5	19	≤25	0.074-0.4	6-35	JR137-8	210	11710x4685x3750	36.5
MQY1830x7000	24.5	20	≤25	0.074-0.4	8-40	JR138-8	245	12320x4685x3750	39.6
MQY2100x3600	24.1	21	≤25	0.074-0.6	10-35	YR355L1-8	210	9016x4510x3720	43
MQY2200x3600	21.8	22	≤25	0.074-0.8	8-35	JR138-8	245	10026x4690x3800	47
MQY2200x7500	21.8	35	≤25	0.074-0.6	10-40	JR158-8	380	14580x5465x4210	68
MQY2200x9000	21.4	36	≤25	0.074-0.6	8-16	JR1510-8	475	15180x5465x4210	76
MQY2400x3600	23.26	26	≤25	0.074-0.6	10-40	JR138-8	280	10500x3900x3900	58
MQY2400x7000	22.8	36	≤25	0.074-0.6	10-45	JR1510-8	475	13520x5700x4200	79
MQY2400x8000	22.8	42	≤25	0.074-0.6	10-50	JR630-8	560	14520x5865x4280	85
MQY2400x10000	21	65	≤25	0.074-0.6	15-60	YR560-8	710	17000x5900x4200	116
MQY2600x8000	19.6	52	≤25	0.074-0.6	16-20	JR1512-8	630	14780x5600x4910	97
MQY2700x3600	21.4	39	≤25	0.074-0.4	13-29	JR158-8	380	9965x5496x4140	86.8
MQY2700x4500	21.4	43	≤25	0.074-0.4	13-36	JR1510-8	475	11139x5496x4140	91.88
MQY3000x9000	18.3	78	≤25	0.074-0.6	20-25	YR1000-8/1180	1000	17010x7100x5400	152
MQY3200x3600	18.6	56.5	≤25	0.074-0.4	17.5-39.5	YR6302-8	630	10360x7200x5600	143
MQY3200x4500	18.6	65	≤25	0.074-0.6	20-30	YR6302-8	800	13000x7300x5700	151
MQY3200x9000	18.6	85	≤25	0.074-0.6	25-50	YR6302-8	1250	17500x8200x6400	198
MQY3600x4500	18.6	86	≤25	0.074-0.6	30-70	YR6302-8	1250	15000x7700x6300	190
MQY2400x8000	22.8	42	≤25	0.074-0.6	10-50	JR630-8	560	14520x5865x4280	85
MQY2400x10000	21	65	≤25	0.074-0.6	15-60	YR560-8	710	17000x5900x4200	116
MQY2600x8000	19.6	52	≤25	0.074-0.6	16-20	JR1512-8	630	14780x5600x4910	97
MQY2700x3600	21.4	39	≤25	0.074-0.4	13-29	JR158-8	380	9965x5496x4140	86.8
MQY2700x4500	21.4	43	≤25	0.074-0.4	13-36	JR1510-8	475	11139x5496x4140	91.88
MQY3000x9000	18.3	78	≤25	0.074-0.6	20-25	YR1000-8/1180	1000	17010x7100x5400	152
MQY3200x3600	18.6	56.5	≤25	0.074-0.4	17.5-39.5	YR6302-8	630	10360x7200x5600	143
MQY3200x4500	18.6	65	≤25	0.074-0.6	20-30	YR6302-8	800	13000x7300x5700	151
MQY3200x9000	18.6	85	≤25	0.074-0.6	25-50	YR6302-8	1250	17500x8200x6400	198
MQY3600x4500	18.6	86	≤25	0.074-0.6	30-70	YR6302-8	1250	15000x7700x6300	190

Note：Any change of technical data shall not be advised additionally.

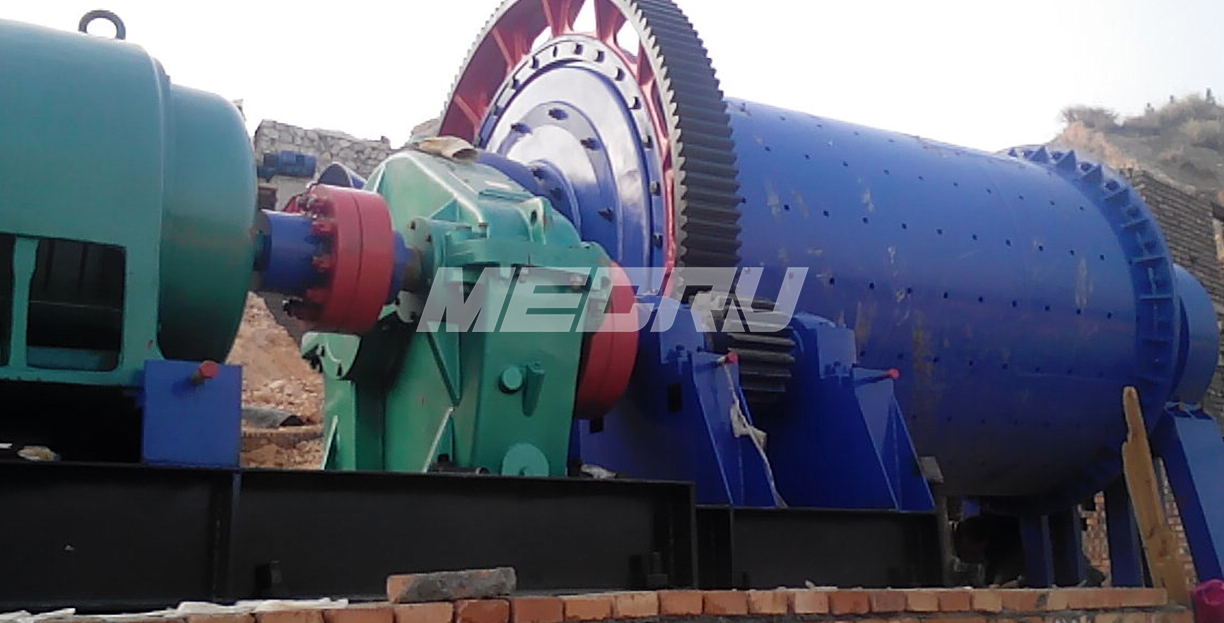

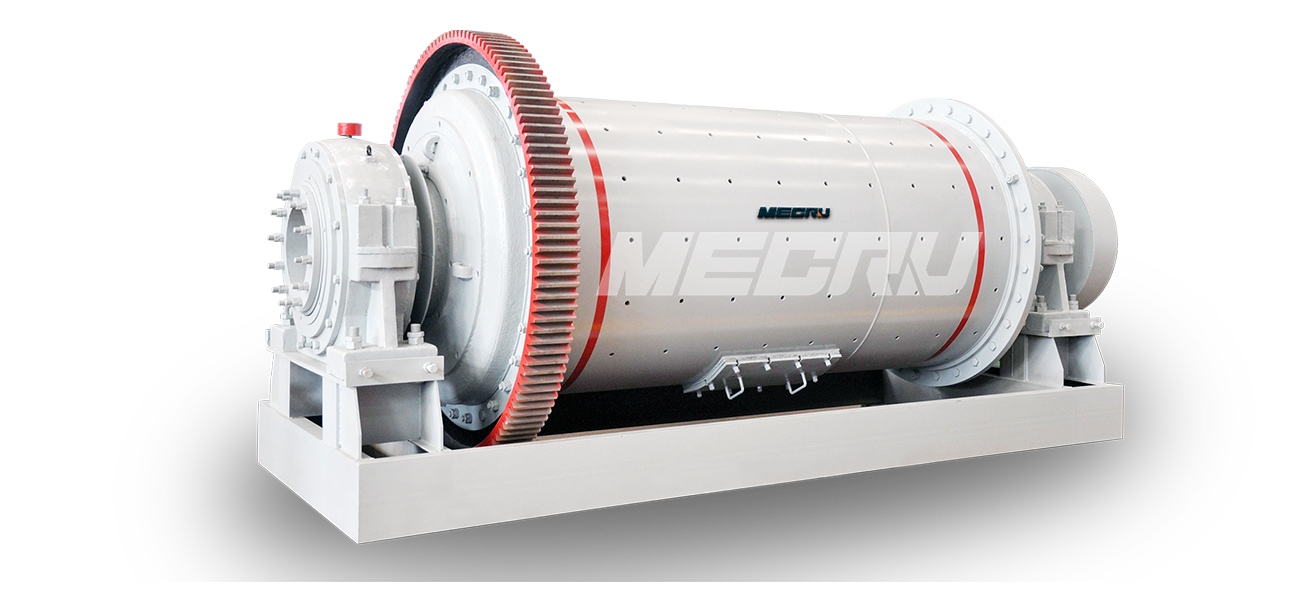

Ball Mill

Work Principle

The material enters the first silo of the mill uniformly through the feeding hollow shaft. The silo has a stepped lining or corrugated lining, which contains various specifications of steel balls. The rotation of the cylinder produces centrifugal force to bring the steel balls to a certain level. After falling down at a high level, it has a heavy impact and grinding effect on the material. After the material reaches rough grinding in the first silo, it enters the second silo through a single-layer partition board. The silo is set with a flat lining plate and contains steel balls to grind the material further. The powder is discharged through the discharge grate plate to complete the grinding operation.
