CG Single-cylinder Hydraulic Cone Crusher

≤560mm

Feeding size

27-1600t/h

Capacity

Applicable materials: iron ore, gold ore, non-ferrous metal ore, granite, quartz stone, basalt and other hard rock in the medium and fine crushing operations.

Multiple-cavity Options

Get a Quote

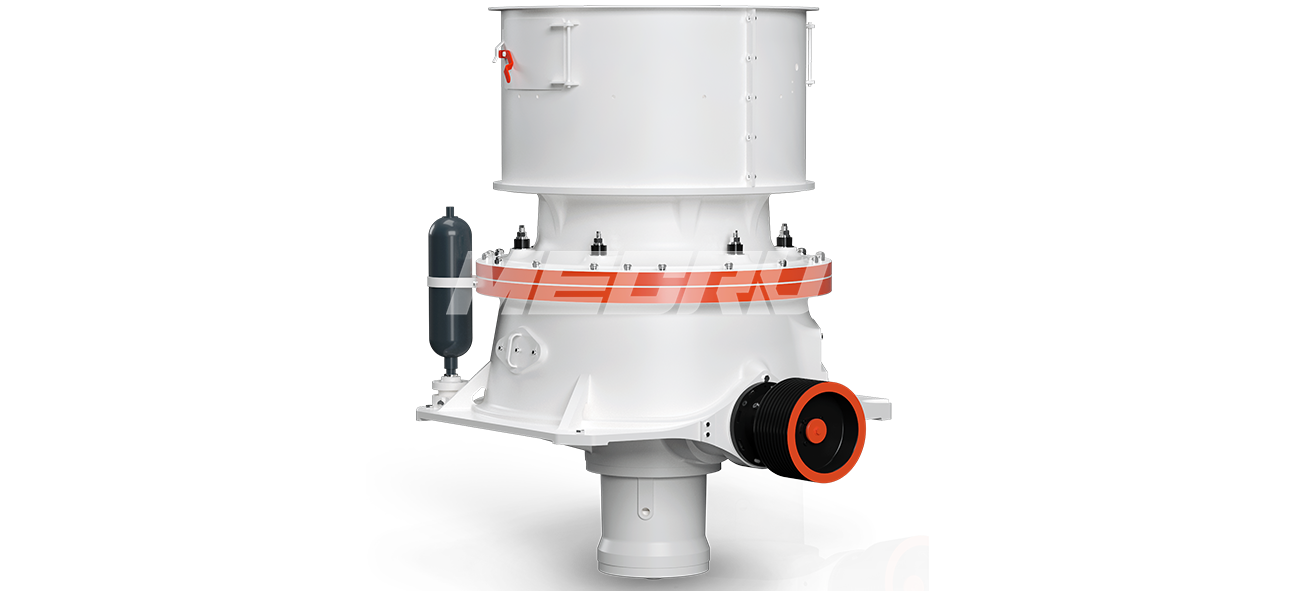

CG Single-cylinder Hydraulic Cone Crusher

Product profile

Mecru single-cylinder hydraulic cone crusher integrates mechanical, hydraulic, intelligent control and other technologies. The cone crusher has a hydraulic lifting cone, which can directly adjust the discharge port during production, and have various functions such as over-iron protection, cavity cleaning protection, and overload protection. Compared with the same type of crusher, it has a larger crushing ratio, higher efficiency and more uniform particle size of finished materials. Mecru single cylinder hydraulic cone crusher is more suitable for medium and fine crushing of various ores and rocks.

Product Advantages

Compared with multi-cylinder cone breaking, the single-cylinder cone breaking structure is relatively simpler, lighter in weight, lower in manufacturing cost and lower in transportation cost.

A labyrinth sealing device is used to replace the water seal so that dust and impurities cannot enter the body. This ensuring the cleanliness of the oil, extending the service life of the sliding bearing and thrust ball bearing, and making the machine operate reliably.

Technical improve on the sliding bearings. The improved equipment can adapt to higher speeds and increase the swing speed of the main shaft, so that the specifications of the finished materials meet the requirements with higher capacity.

A hydraulic system is used to adjust the discharge port, which can be adjusted at any time according to the stone crushing situation during the operation of the equipment, which is very convenient.

Technical Parameters

model	Cavity type	Max inlet size(mm)	Min outlet size(mm)	Capacity(t/h)	Max power(kw)
CSG420	S1(extra coarse)	240	22	85-170	90
CSG420	S2(medium coarse)	200	19	70-130
CHG420	H1(fine)	135	10	45-130
	H2(medium fine )	65	8	35-80
	H3(extra fine)	38	4	27-60
CSG430	S1(extra coarse)	360	25	120-345	160
	S2(medium coarse)	300	22	105-305
	S3(coarse)	235	19	90-275
CHG430	H1(fine)	185	13	60-210
	H2(medium fine )	90	10	65-165
	H3(extra fine)	50	6	48-105
CSG440	S1(extra coarse)	450	35	255-605	250
	S2(medium coarse)	400	29	215-515
	S3(coarse)	300	25	190-490
CHG440	H1(fine)	215	16	110-395
	H2(medium fine )	110	13	115-340
	H3(extra fine)	70	8	90-225
CSG660	S1(extra coarse)	560	41	355-1050	315
CSG660	S2(medium coarse)	500	38	305-895
CHG660	H1(fine)	275	16	170-665
	H2(medium fine )	135	16	190-505
	H3(extra fine)	65	13	205-320
CHG870	H1(fine)	300	22	448-1512	520
	H2(medium fine )	155	19	400-1372
	H3(extra fine)	80	10	280-775
CHG890	H1(fine)	370	25	480-2128	750
	H2(medium fine )	195	22	552-1605
	H3(extra fine)	85	10	365-885

Note：Any change of technical data shall not be advised additionally.

Application Areas

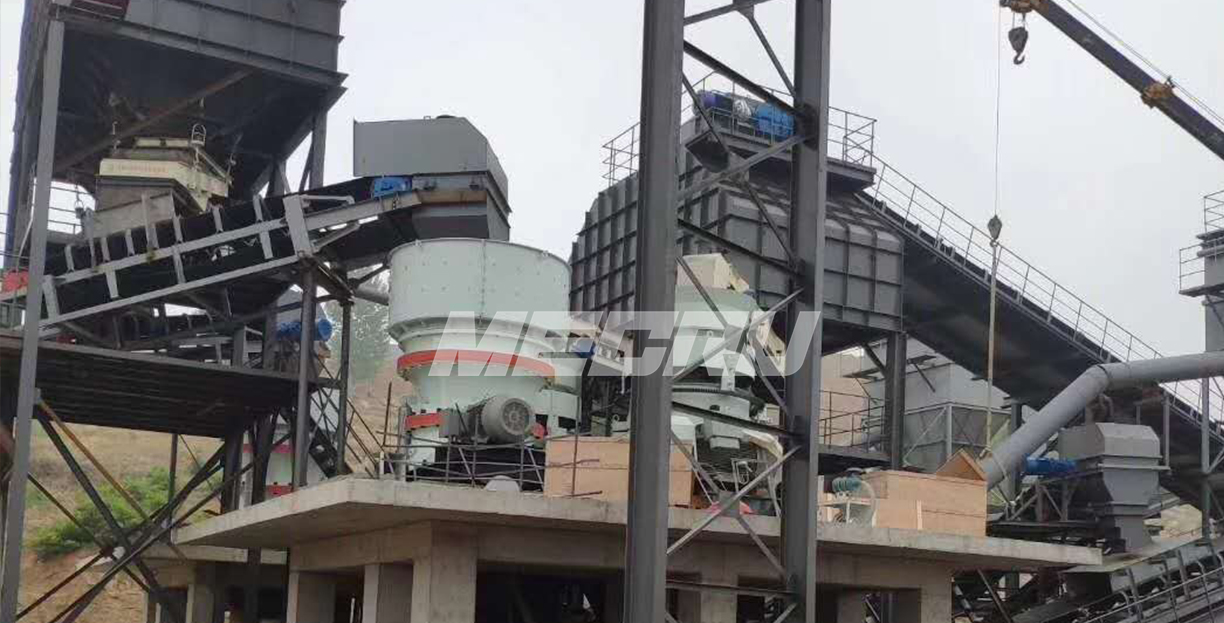

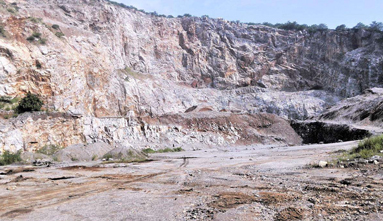

Mines and Quarries

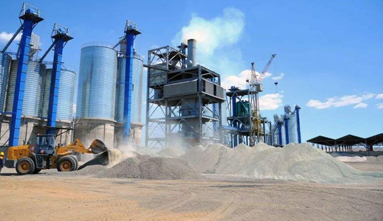

Cement Production
Building Construction
Road Construction

CG Single-cylinder Hydraulic Cone Crusher

Work Principle

The motor drives the horizontal shaft to rotate, the horizontal shaft drives the eccentric shaft to rotate through the gears, and then the eccentric sleeve drives the cone to swing circumferentially, so as to realize continuous extrusion of crushed materials. By adjusting the hydraulic cylinder at the bottom of the moving cone, the moving cone can be moved up and down to conveniently adjust the size of the orifice. At the same time, the hydraulic cylinder also provides iron protection function. When an unbreakable object (such as an iron block) enters the crushing chamber, the hydraulic cylinder automatically drops the moving cone, releases the iron block, protects the crusher, and the moving cone automatically recovers after foreign objects are discharged. The equipment returns to working condition and continues to break.

Customer Case

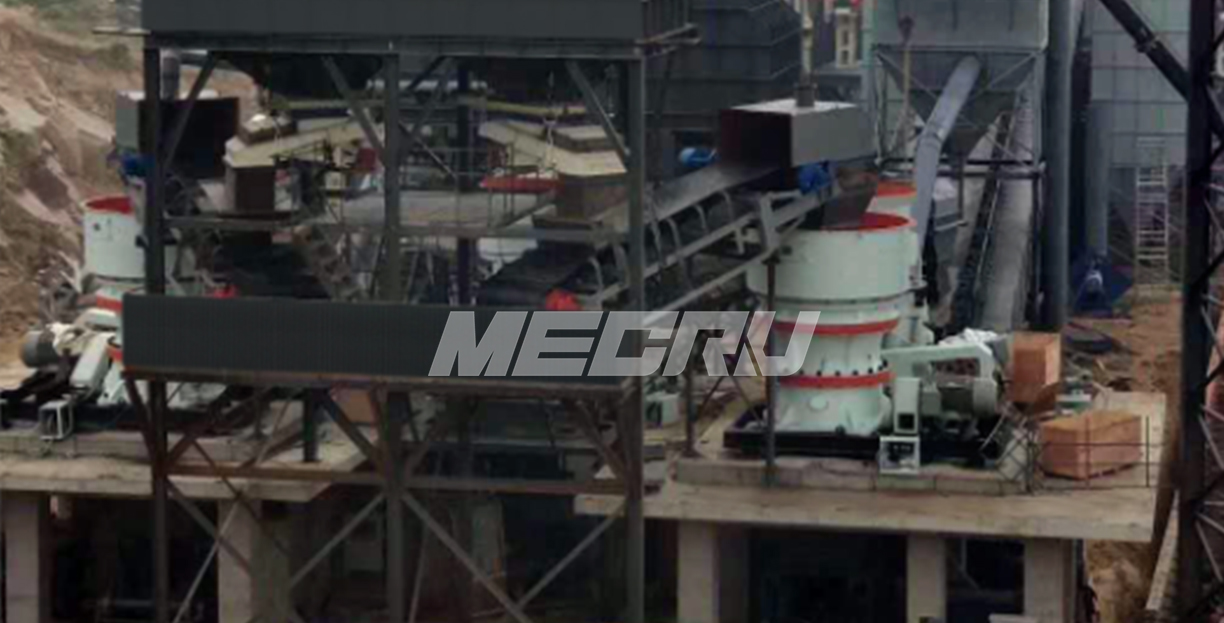

Anhui Liu An 250tph river pebble sand-making proje...

River pebbles is a common mechanism sand project. Because the acquisition of river pebble raw materials is relatively si...
