Introduction

In the general mineral processing process, the flotation separator is an important device for froth flotation. After the slurry is fully aerated and stirred, useful minerals are enriched to complete the flotation operation. The excellent performance of Mecru column flotation cell greatly improves the flotation recovery rate of coarse and fine particles. The operation is simple, the energy consumption and air consumption are very low, and the modular layout is allowed.

Application Areas

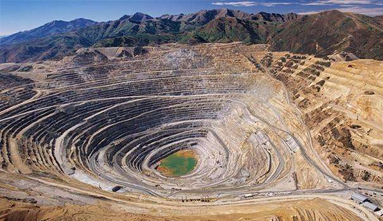

Copper Ore Flotation
Gold Ore Flotation
Iron Ore Flotation
Coal Flotation

Technical Parameters

Model	ΦDiameter	Froth Zone(㎡)	Feed concentration(％)	Capacity(m³/h)	Air Suction Amount(m³/h)
C-500	Φ500	0.196	10－40	3－11	17－25
C-800	Φ800	0.503	10－40	5－18	30－45
C-1000	Φ1000	0.785	10－40	8－28	47－71
C-1200	Φ1200	1.131	10－40	12－41	68－102
C-1500	Φ1500	1.767	10－40	19－64	106－159
C-1800	Φ1800	2.543	10－40	27－92	153－229
C-2000	Φ2000	3.142	10－40	34－113	189－283
C-2200	Φ2200	3.801	10－40	41－137	228－342
C-2500	Φ2500	4.524	10－40	49－163	271－407
C-3800	Φ3800	11.341	10－40	122－408	680－1021
C-4500	Φ4500	15.90	10－40	210－800	830－1560

Note：Technical parameters may change, please contact us for the latest values.

Product Advantages

Wide range of application, can be used in all kinds of mineral processing of coarse, scavenging and cleaning.

The column flotation cell is simple in structure, convenient in manufacturing, and covers a small area.

Power consumption is 50% of the traditional flotation cell, greatly Reduce power consumption.

High separation efficiency, fine powder product quality is good.

Compared with traditional flotation cell, column flotation cell of Mecru has less investment, short construction period and can be put into production quickly.

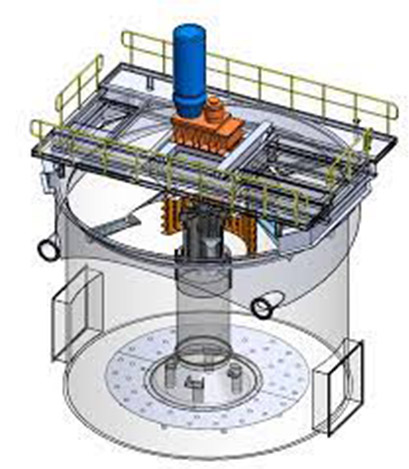

Work Principle

When the flotation column is working, as the impeller rotates, the slurry in the tank is sucked from the bottom of the impeller to the blades of the impeller from the bottom of the tank. At the same time, the low pressure air fed by the blower is into it through the hollow shaft and the air distributor of the impeller. After the pulp and air are fully mixed between the blades, they are pushed out from the upper half of the impeller in an upward direction, and flow stably and oriented by the stator to enter the entire flotation cell for flotation.

Customer Case

Australian iron ore beneficiation case

The Australian customer has been cooperating with Mecru Heavy Industry for a long time, and this time he wants to add a ...

Shanxi potassium feldspar purification case

With the development of glass and ceramic industries, the improvement of people's living standards, and the increas...

Shanxi potassium feldspar purification case
