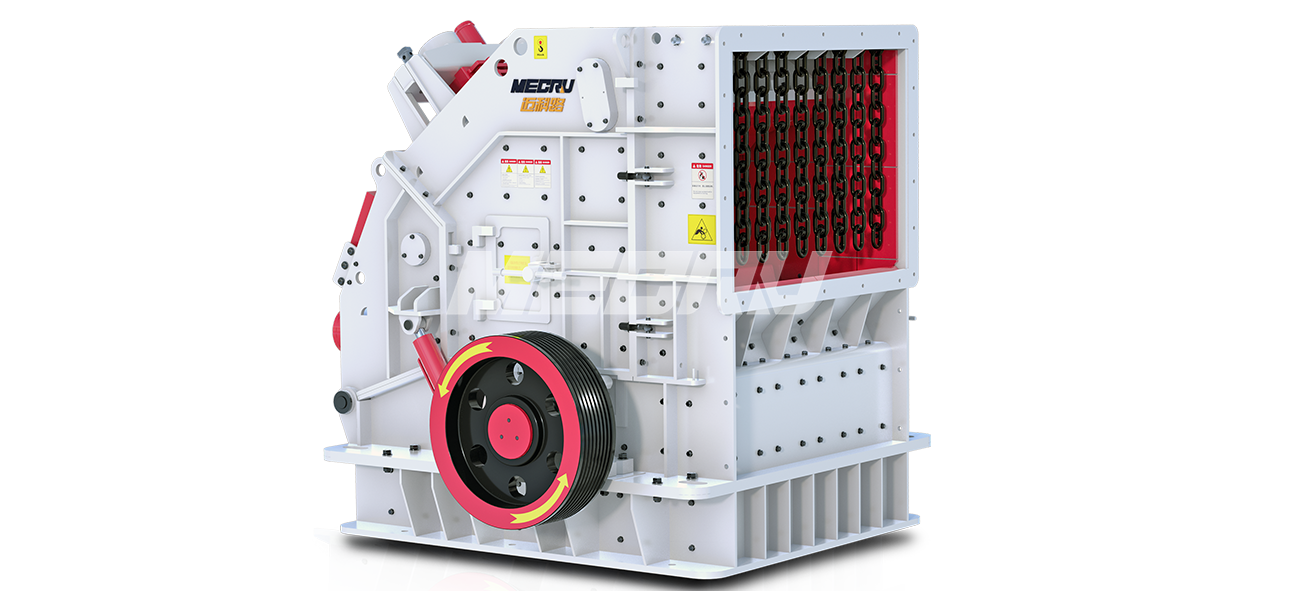

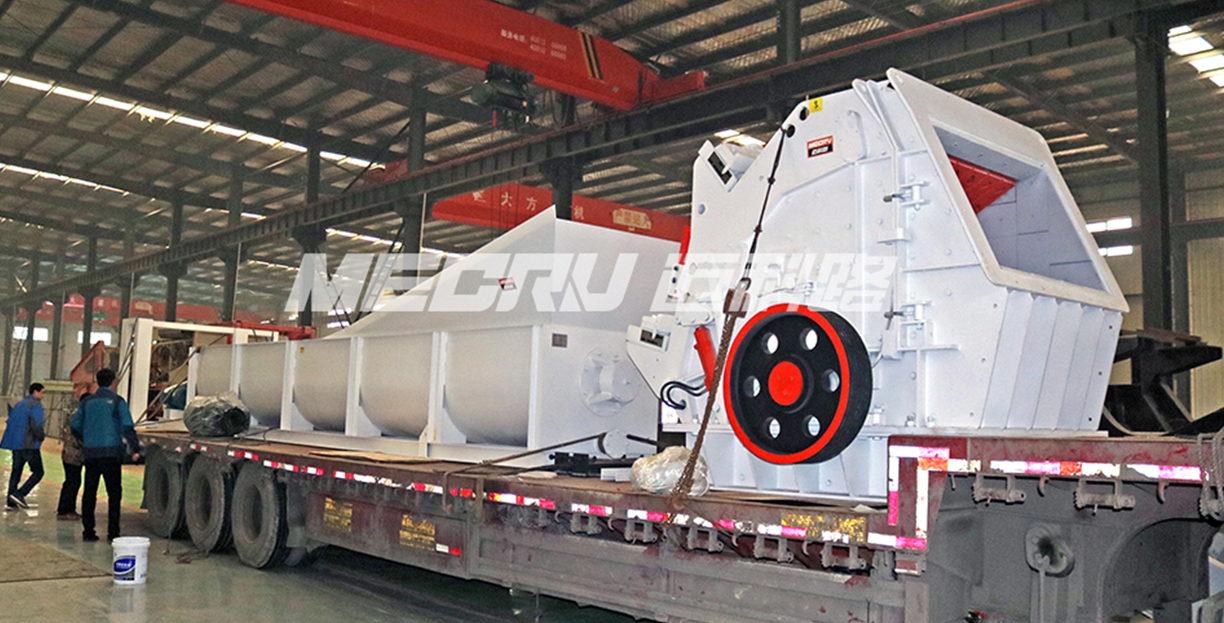

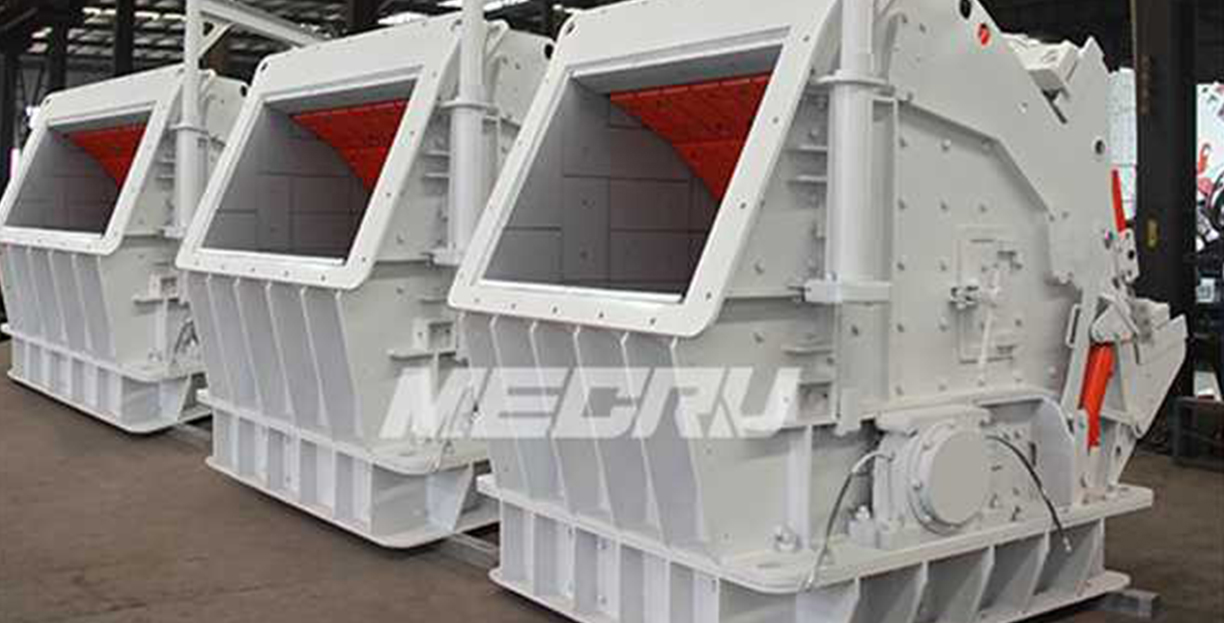

C Series Impact Crusher

≤1000mm

Feeding size

60-700t/h

Capacity

Applicable materials: river pebbles, granite, iron ore, limestone, slag and other ores and construction waste, construction aggregate, etc.

Large Crushing Ratio, High Crushing Efficiency

Get a Quote

Product profile

Mecru C series impact crusher is an improved product that adopts the international advanced crushing technology. The rotor and crushing cavity of the crusher are finely designed for different application industries; A large number of new wear-resistant materials are used, which greatly improves the wear resistance and processing capacity of the impact crusher. Mecru impact crusher is widely used in the crushing of sand and gravel aggregates with medium hardness and low abrasiveness.

Product Advantages

Sturdy heavy-duty rotor structure improves the processing capacity and crushing ratio of the equipment; high-quality welded structure ensures that the machine can withstand large impact force and obtain good crushing effect.

A large number of new high-wear-resistant materials are used to reduce the wear parts, extend the replacement cycle and save costs.

The hydraulic opening of the cover and the hydraulic auxiliary adjustment of the clearance between the impact plate and the hammer reduce the labor intensity and shorten the downtime.

Large feed inlet, high crushing cavity. And it is suitable for high hardness and large lump stones. And the product is with little powder.

Complete crushing function, high productivity, low wear of machine parts, and high comprehensive benefit.

Technical Parameters

model	Feeding size(mm)	max feeding size(mm)	capacity(t/h)	power(kw)	weight(t)
CI411	820*980	600	100-200	90-200	12
CI412	430*980	300	60-130	90-200	12
CI421	960*1360	800	200-400	180-250	17
CI422	450*1360	350	80-250	180-250	17
CI431	1050*1700	800	300-500	200-400	24
CI432	600*1700	350	120-300	200-400	24
CI441	1350*1950	1000	400-700	220-440	29.6
CI442	650*1950	350	150-400	220-440	29.6

Note：Any change of technical data shall not be advised additionally.

Application Areas

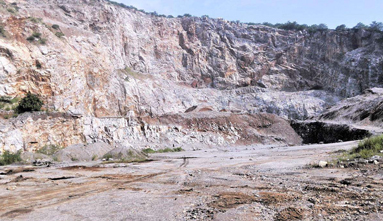

Mines and Quarries

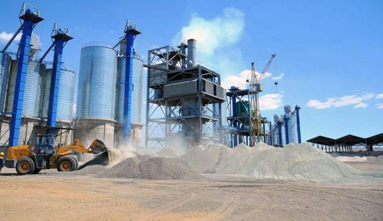

Cement Production

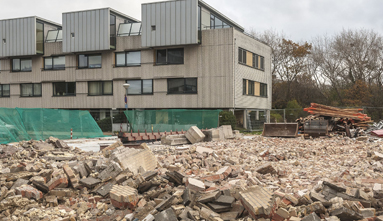

Building Construction
Road Construction

C Series Impact Crusher

Work Principle

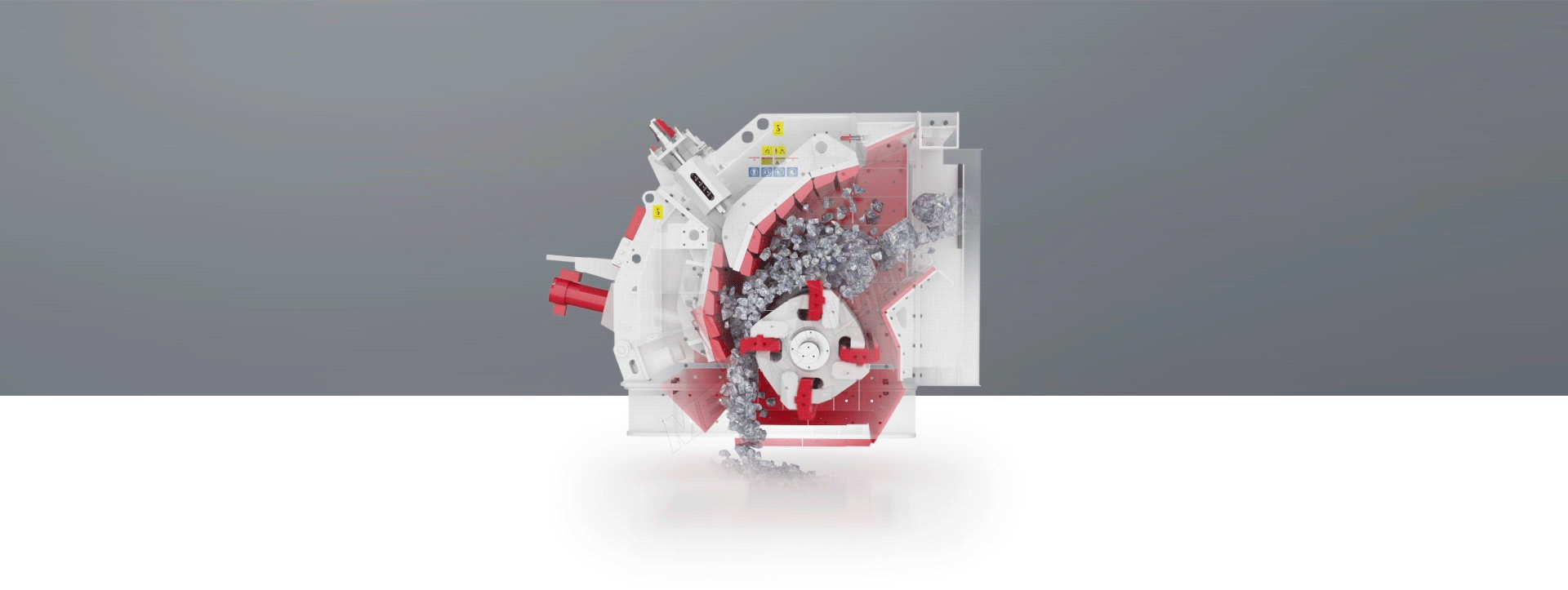

The impact crusher uses impact energy to crush materials. When working, driven by the motor, the rotor rotates at a high speed. When the material enters the action area of the hammer, it strikes and breaks with the hammer on the rotor, and then is thrown to the counterattack device to be broken again. And then rebounds from the counterback liner re-crushing to the action area of the hammer. This process is repeated until the material is crushed to the required particle size, and discharged through the discharge port. Adjusting the gap between the impact rack and the rotor can achieve the purpose of changing the material discharge particle size and material shape.

Customer Case

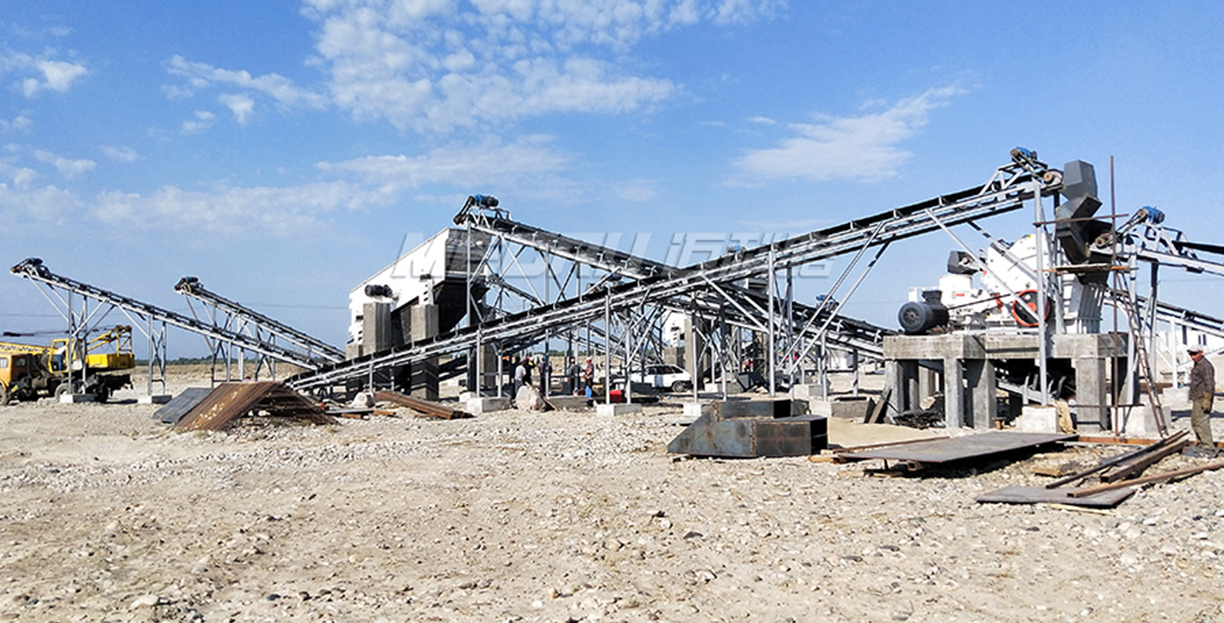

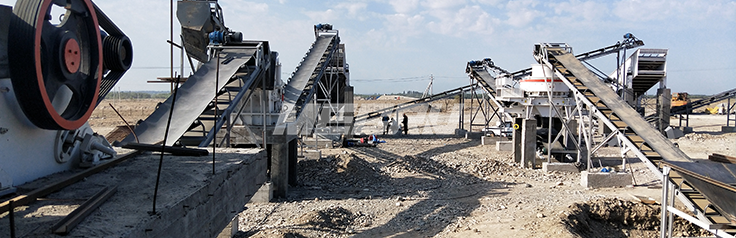

150tph Limestone sand production line

The design of limestone sand production line is a part of our company that is very good at. After long-term accumulation...

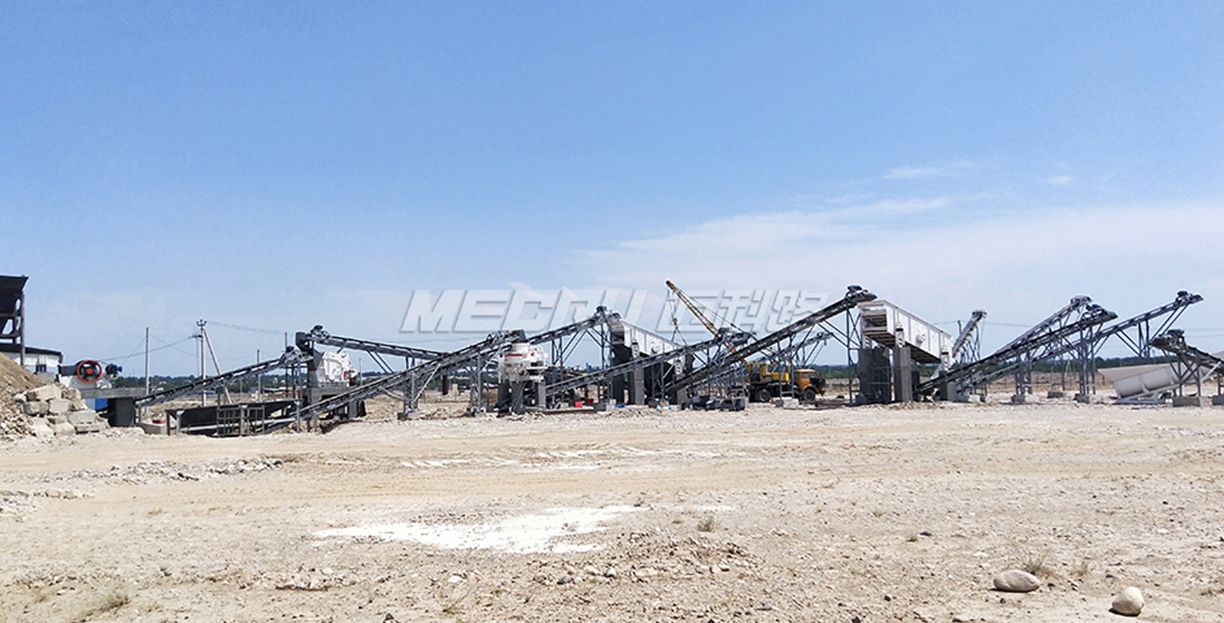

200tph limestone sand production line in Guizhou

The project is located in a mining area in Guizhou. With the development of national infrastructure, mechanism sand has ...

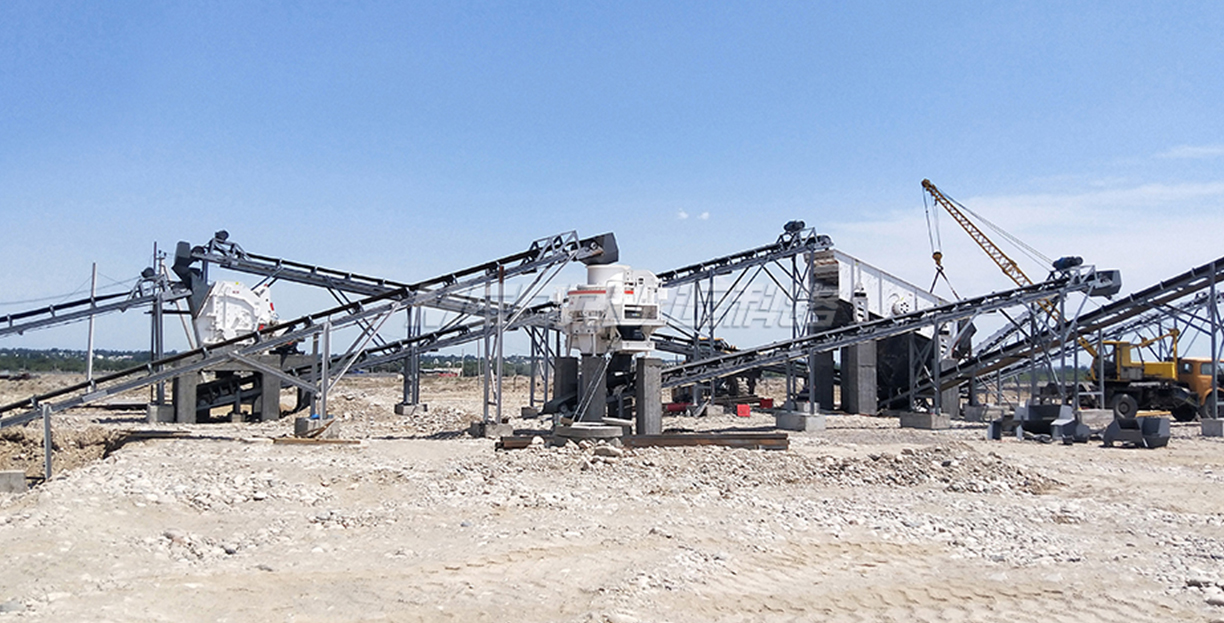

200tph limestone sand production line in Guizhou
