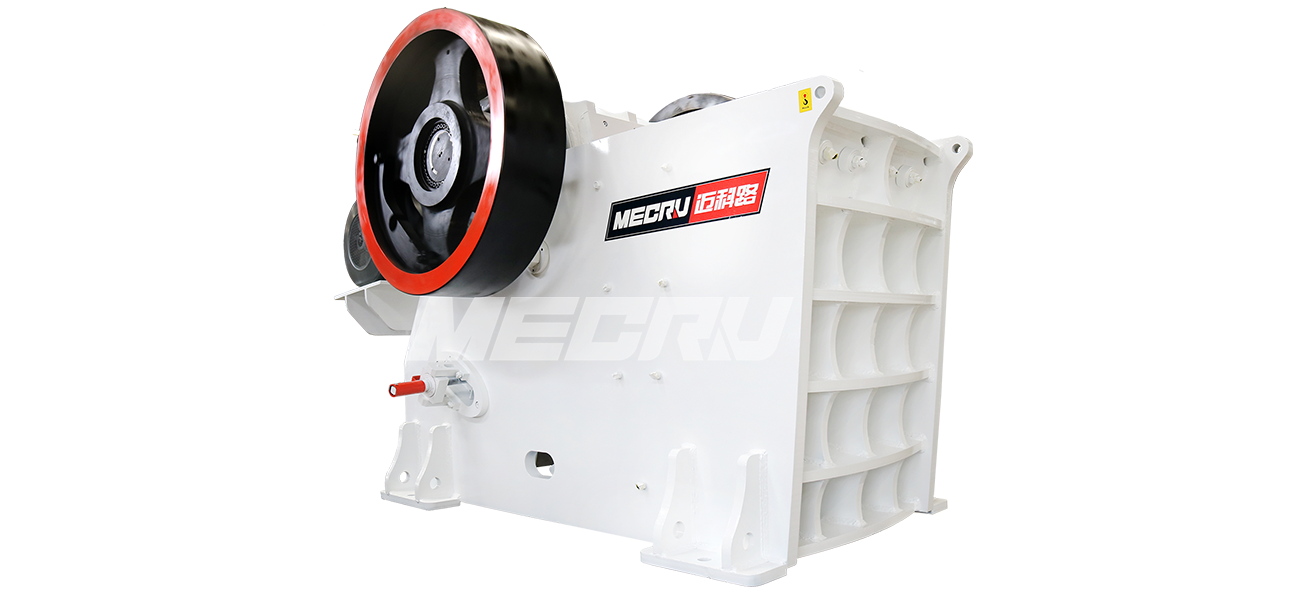

C Series Jaw Crusher

120-1500mm

Feeding size

65-1590t/h

Capacity

Applicable materials: granite, quartzite, marble, iron ore, diabase, basalt, andesite, tuff, diorite, etc.

Large Capacity, Energy Saving

Get a Quote

Product profile

The jaw crusher is a crushing machine composed of two jaw plates, a movable jaw and a static jaw, to complete the material crushing operation by simulating the motion of the two jaws of animals. Mecru's improved C series jaw crusher can save energy by 15%-30%, and can save more than double the energy in a reasonably configured production line.

Product Advantages

The superior motion characteristics and unique "V" type symmetrical crushing cavity structure make the processing capacity is more than 15% larger than other similar machines.

The unique crushing cavity shape makes the jaw plate material utilization rate higher, and the jaw plate can be used interchangeably for four times to achieve uniform wear of the jaw plate crushing surface, which improving the material utilization rate and extending the service life.

The structural design with adjustable transmission angle makes higher capacity under the same discharge port.

The fixed jaw plate and movable jaw plate are common, which can effectively reduce the using of spare parts and make the installation more convenient.

The discharge port adopts double jack hydraulic adjustment method, which makes adjustment faster and more labor-saving.

Technical Parameters

model	Feeding port size(mm)	Max feeding size (mm)	Discharge opening range(mm)	Capacity(t/h)	Eccentric shaft speed(r/min)	Power(kw)	Weight(t)	Dimension(LxWxH)(mm)
C80	510*800	420	40-175	65-380	350	75	9.52	257715261750
C96	580*930	460	60-175	120-455	330	90	11.87	288017551460
C106	700*1060	580	70-200	155-580	280	110	17.05	332020302005
C116	800*1150	680	70-200	170-600	260	132	21.5	360024002730
C125	950*1250	800	100-250	290-845	220	160	43.91	410028002980
C140	1070*1400	920	125-250	385-945	220	200	54.01	440030103140
C145	1100*1400	950	125-275	400-1070	220	200	63.19	460031103410
C160	1200*1600	1020	150-300	520-1275	220	250	83.3	590037004280
C200	1500*2000	1200	175-300	760-1590	200	400	137.16	670040404465

Note：Any change of technical data shall not be advised additionally.

Application Areas

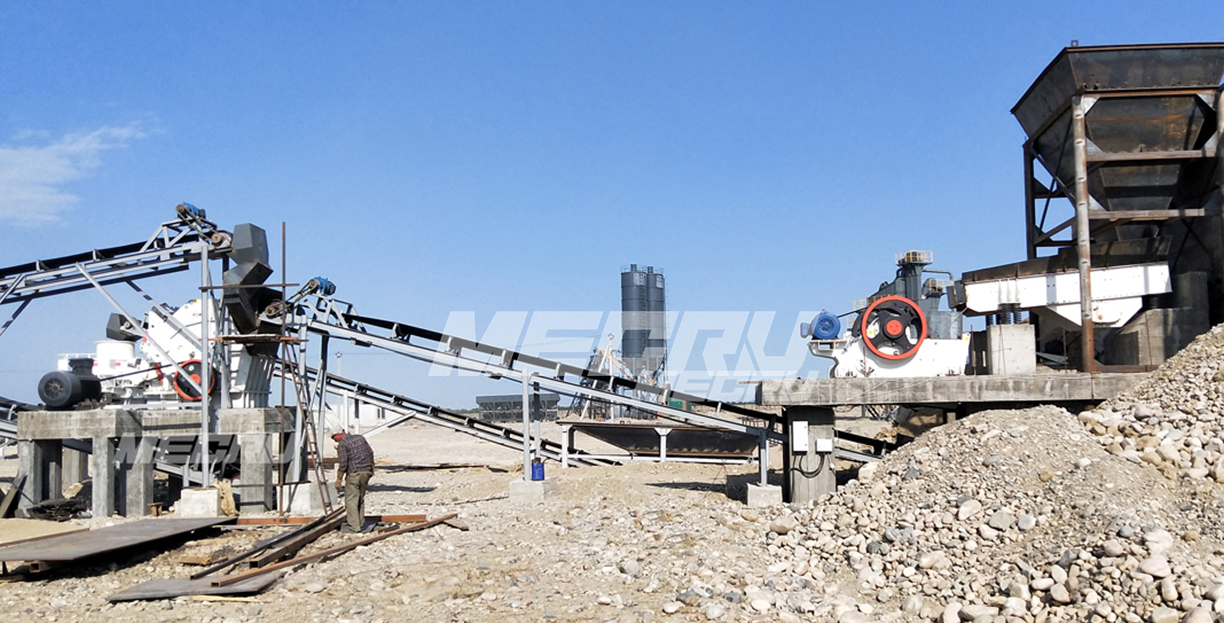

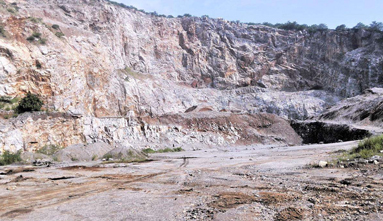

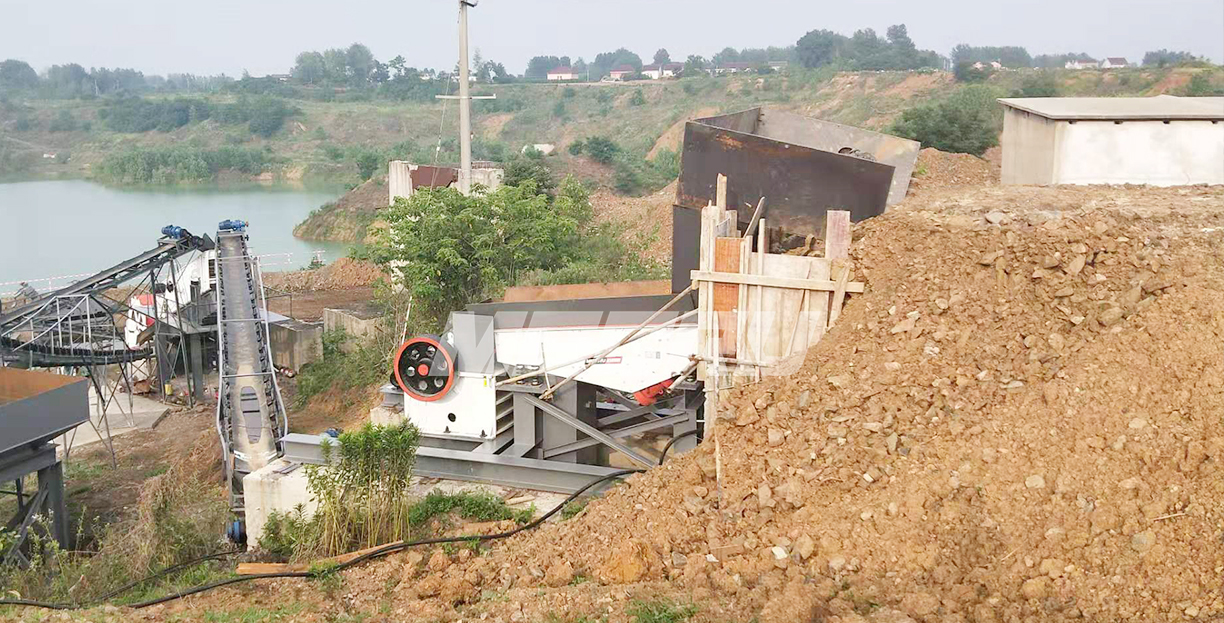

Mines and Quarries

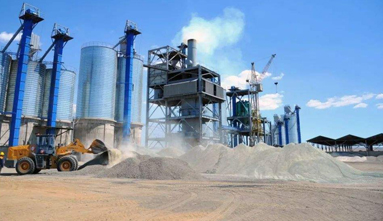

Cement Production

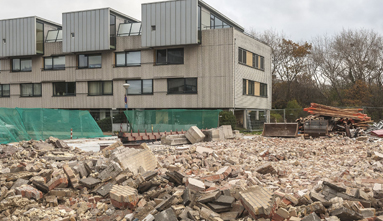

Building Construction
Road Construction

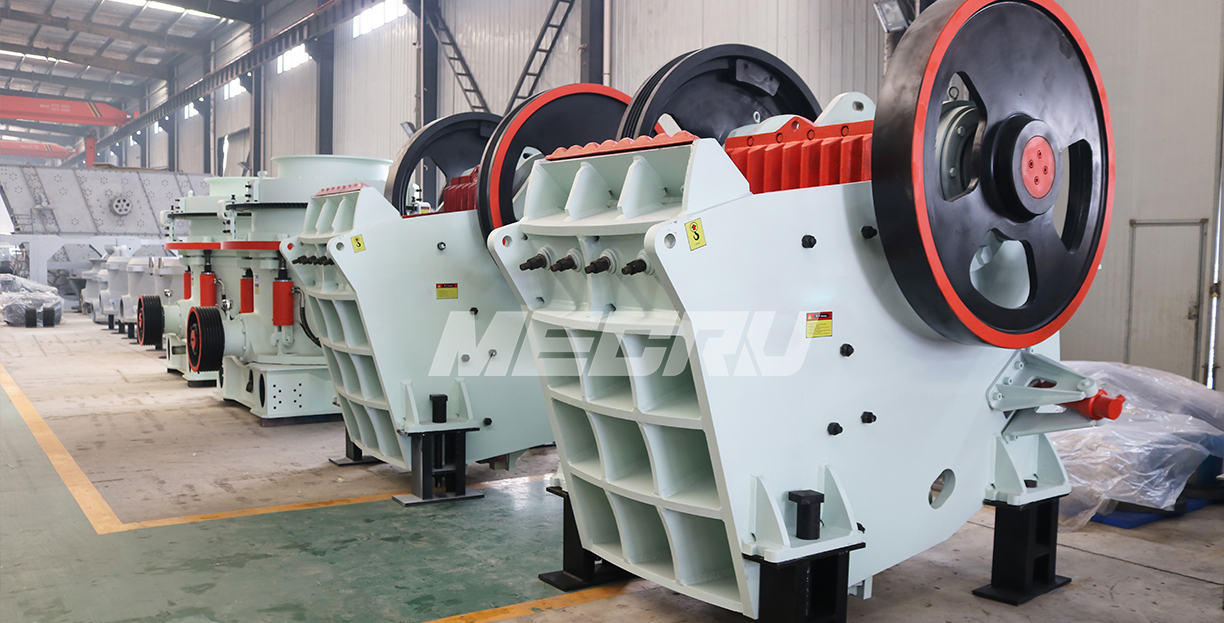

C Series Jaw Crusher

Work Principle

When working, the motor drives the belt and the pulley, and moves the movable jaw up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw plate Approaching the fixed jaw plate, at the same time, the material is crushed or split to achieve the purpose of crushing; when the movable jaw goes down, the angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate is under the action of the tie rod and spring. After leaving the fixed jaw plate, the crushed material is discharged from the lower mouth of the crushing chamber.

Customer Case

Australian iron ore beneficiation case

The Australian customer has been cooperating with Mecru Heavy Industry for a long time, and this time he wants to add a ...

Case of Pakistan Manganese Ore Magnetic Separation...

The customer's manganese ore is mainly produced by rhodochrosite and calcium rhodochrosite, followed by manganese c...

Case of Pakistan Manganese Ore Magnetic Separation Production Line
