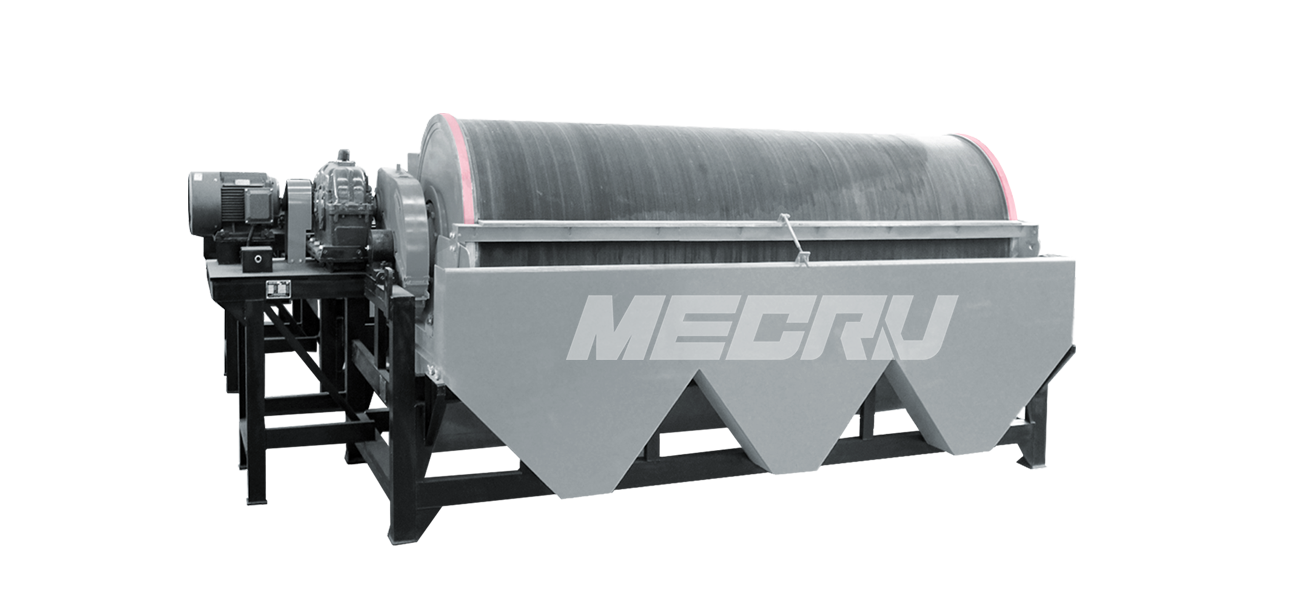

Magnetic Separator

0-3mm

Feeding size

4-350t/h

Capacity

Applicable materials: magnetite, pyrite, roasted ore, ilmenite, manganese ore, wolframite, tantalite, quartz, feldspar, refractory, etc.

High Separation Precision, Low Power Consumption

Get a Quote

Product profile

Mecru mining magnetic separator has a complete range of types, stable performance and long service life, which can meet the requirements of 90% of the ore magnetic separation.

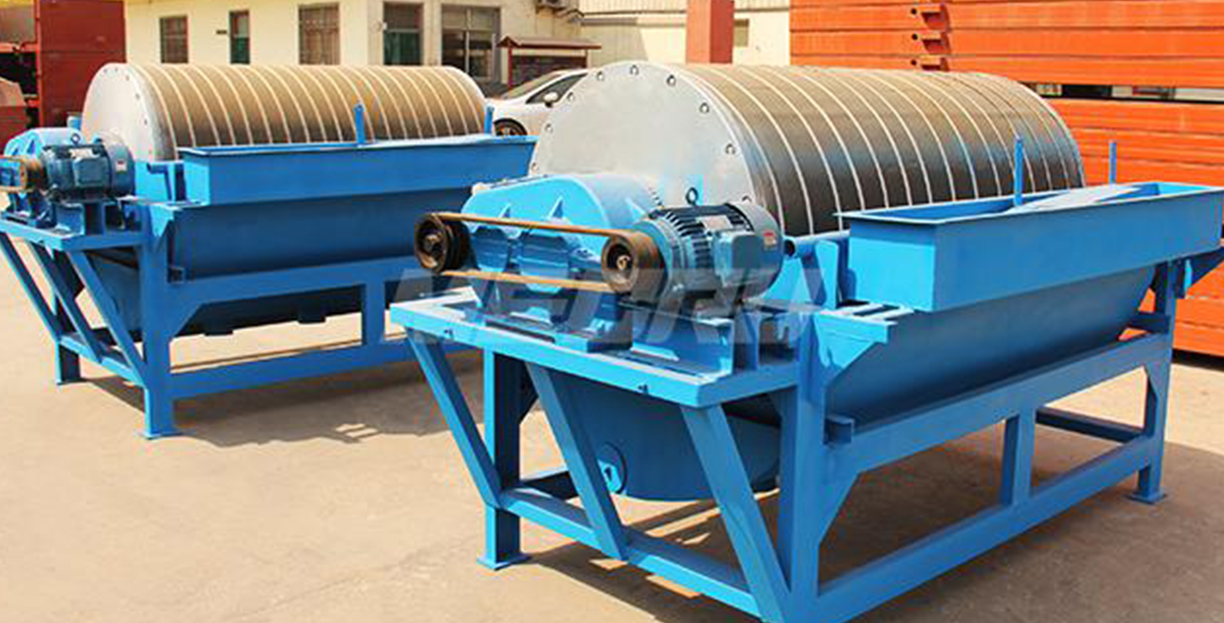

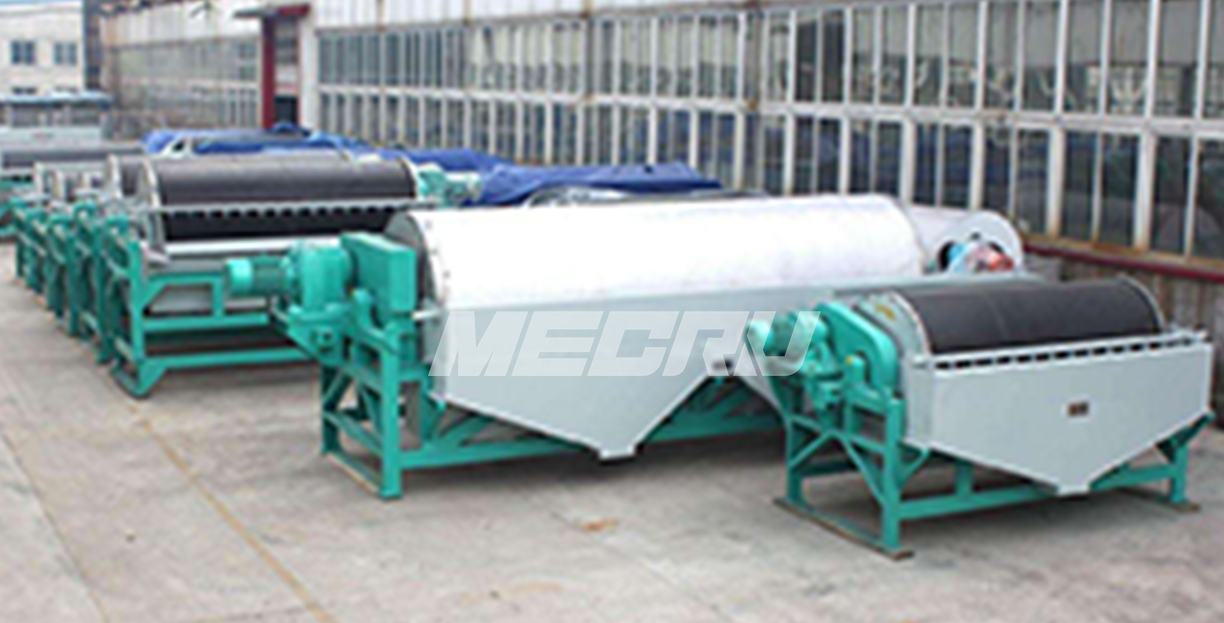

wet drum magnetic separator: simple structure, large processing capacity, easy operation and convenient maintenance. It is suitable for magnetic separation of magnetite, pyrite, roasted ore, ilmenite and other materials with particle size less than 3mm.

dry magnetic separator: wide range of mineral particle size, high separation accuracy, no blockage, and power consumption is only 20% of the electromagnetic strong magnetic separator. It is suitable for separating medium and weak magnetic minerals.

high gradient magnetic separator: taking into account the concentrate grade and metal recovery rate, the separation index can be flexibly adjusted according to needs. It is suitable for roughing and scavenging of metallic ores and purification of non-metallic ores.

Product Advantages

The bearing of the drum magnetic separator has a strong bearing capacity, the equipment runs smoothly and reliably, and there are few failures, which can improve the production capacity of the equipment.

Mecru magnetic separator has high magnetic field performance, high magnetic induction intensity, large magnetic intensity depth, and good magnetic separation effect.

The drum is made of stainless steel, and after special treatment, the separation drum is not only easy to replace, but also has a long service life.

The structure of the magnetic separation processing equipment is simple and easy to maintain.

Technical Parameters

Wet Drum Model	Roller			Mangnetic induction(Gs)	Feeding size(mm)	Capacity(t/h)	Motor power(kw)	Dimension(LxWxH)(mm)	Weight(t)
Wet Drum Model	Diameter(mm)	Length(mm)	RPM(r/min)	Mangnetic induction(Gs)	Feeding size(mm)	Capacity(t/h)	Motor power(kw)	Dimension(LxWxH)(mm)	Weight(t)
CTB612	600	1200	35	1200-1500	0.4-0	10-15	2.2	228013001250	1.2
CTB618	600	1800	35	1200-1500	0.4-0	15-20	2.2	228013001250	1.5
CTB7512	750	1200	35	1200-1500	0.4-0	15-20	2.2	225519701500	1.8
CTB7518	750	1800	35	1200-1500	0.4-0	25-35	3	288019701500	2.1
CTB918	900	1800	31	1200-1500	0.6-0	35-50	4	335019401600	3.5
CTB924	900	2400	31	1200-1500	0.3-0	40-60	4	360020001700	4.2
CTB930	900	3000	31	1200-1500	0.8-0	45-70	5.5	418020001700	5.5
CTB1018	1050	1800	19	1200-2400	0.8-0	45-75	5.5	344022201730	4.1
CTB1024	1050	2400	19	1200-2400	0.8-0	60-120	5.5	414022201830	5.1
CTB1030	1050	3000	19	1200-2700	0.8-0	90-130	7.5	440017001650	6.5
CTB1218	1200	1800	19	1200-2400	0.8-0	100-150	7.5	360023601850	4.5
CTB1224	1200	2400	19	1200-2400	0.8-0	120-160	7.5	424623601850	5.9
CTB1530	1500	3000	14	1200-3000	0.6-0	150-260	11	510028002100	8.7
CTB1540	1500	4000	14	1200-3000	0.6-0	200-350	11	620030002100	9.9

Note：Any change of technical data shall not be advised additionally.

Work Principle

Non-magnetic particles and magnetic particles are attracted to the drum surface by the magnetic force in the magnetic field. Due to different magnetic forces, the non-magnetic and weakly magnetic particles will fall off in different throwing trajectories, and the particles finally adsorbed on the surface of the drum are the concentrates. As the drum turns to the weaker magnetic side of the magnetic system, the concentrate is discharged into the concentrate tank under the action of the flushing water sprayed from the discharge water pipe.

Customer Case

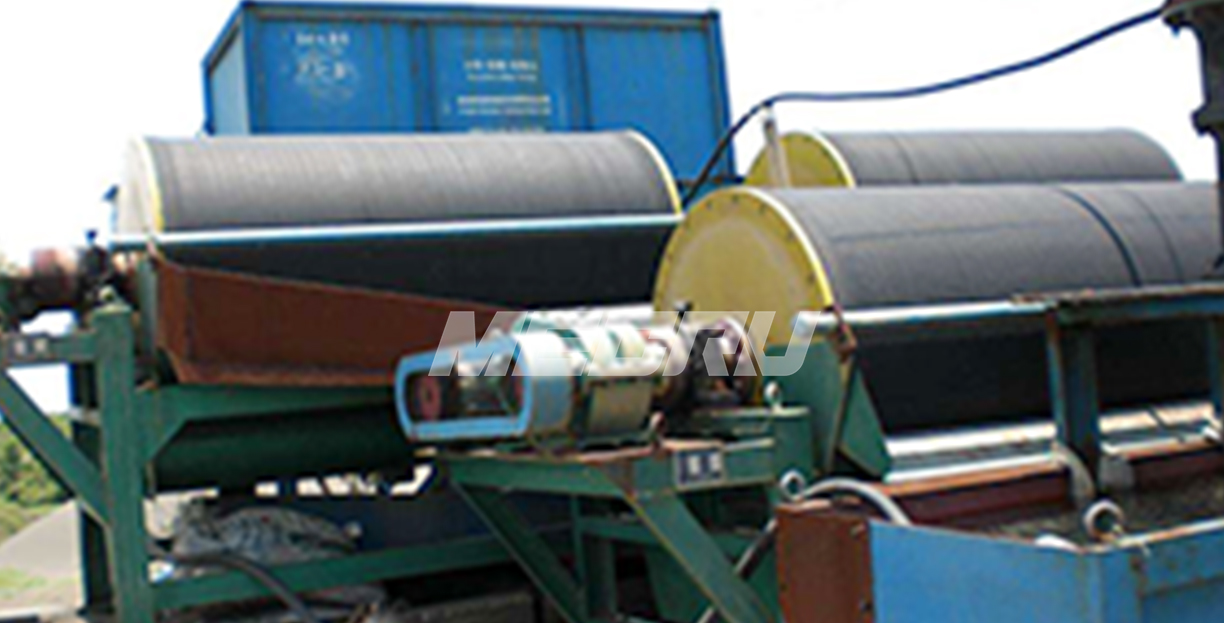

Australian iron ore beneficiation case

The Australian customer has been cooperating with Mecru Heavy Industry for a long time, and this time he wants to add a ...

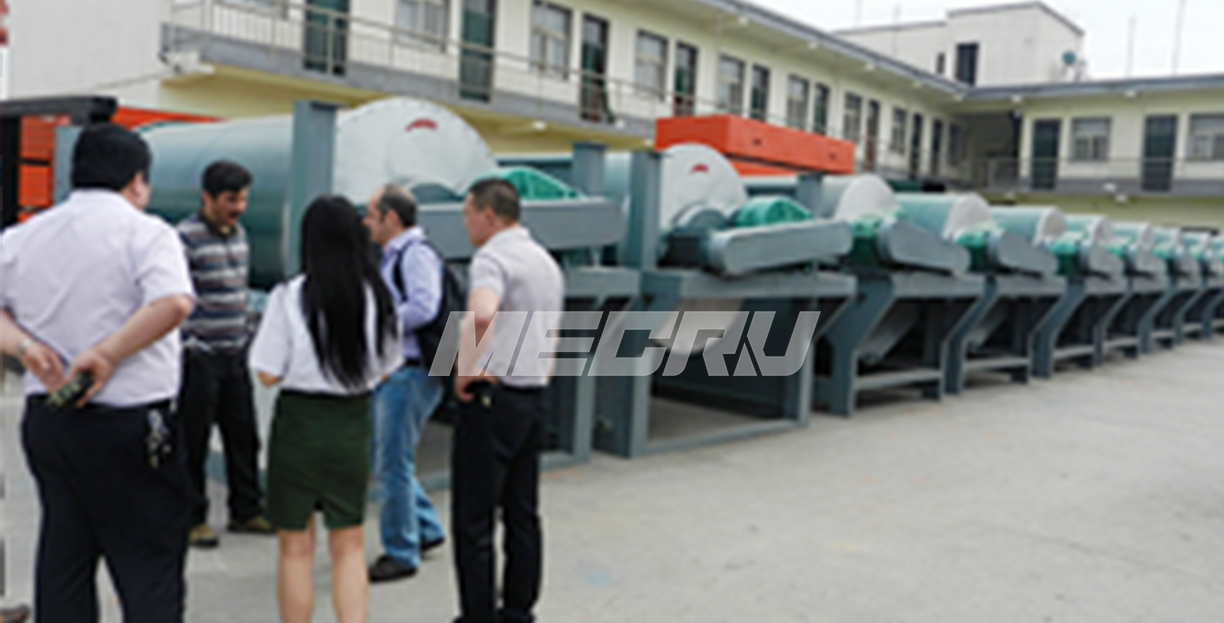

Case of Pakistan Manganese Ore Magnetic Separation...

The customer's manganese ore is mainly produced by rhodochrosite and calcium rhodochrosite, followed by manganese c...

Case of Pakistan Manganese Ore Magnetic Separation Production Line

Mobile crushing plant

Stationary crushing plant

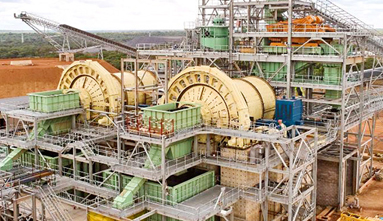

Mineral processing plant
