Raymond Mill

≤30mm

Feeding size

8-176t/h

Capacity

Applicable materials: barite, calcite, potash feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock

Get a Quote

Product profile

Raymond mill is suitable for various ore powder preparation, coal powder preparation, such as fine powder processing of raw material mine, gypsum mine, coal and other materials, and is widely used in mines, cement plants, chemical plants And other fields, it is one of the important equipment for the deep processing of non-metallic minerals. Raymond mill has stable performance, strong adaptability and high cost performance, so it has been widely developed in the application field of ultrafine powder.

Product Advantages

The centralized control electrical system is adopted, and the grinding workshop can basically realize unmanned operation and convenient maintenance.

Three-dimensional structure, small footprint, strong complete set, strong systemic, from block material to finished powder to form a production system.

The finished powder is fine and the screening rate is as high as 99%.

The important parts use high-quality steel, and the wear-resistant parts use high-performance wear-resistant materials, so the machine has high wear resistance.

The transmission device adopts a closed gear box and pulleys, with stable transmission and reliable operation.

Technical Parameters

Model	Max Feeding Size(mm)	Finished Granularity(mm)	Classified Capacity(t/h)	Central Shaft Rotation(r/min)	Ring Inner Diameter(mm)	Main Engine Motor(kw)	Air Blower Motor(kw)	Analyzer Motor(kw)
3R1410	5-8	0.125-0.044	1-10	280	φ405	Y160M-6-7.5	Y132S-4-5.5	Y90L-6-2.2
3R2115	15	0.125-0.044	1-18	180	Φ640	Y200L-8-15	Y132M-4-11	Y112M-6-2.2
3R2615	20	0.125-0.044	2-15	170	Φ780	Y225S-8-18.5	Y180M-4-15	Y112M-6-22
3R2714	20	0.125-0.044	2-28	170	Φ830	Y255M-8-18.5	Y180M-4-18.5	Y112M-6-2.2
4R2714	15-25	0.125-0.044	3-30	170	Φ830	Y225M-8-22	Y180M-4-18.5	Y112M-6-2.2
3R3016	15-25	0.125-0.044	3-34	178	Φ910	Y225M-8-30	Y180L-4-22	Y132S-6-3
4R3016	15-25	0.125-0.044	3-36	178	Φ910	Y225M-8-30	Y180L-4-22	Y132S-6-3
4R3216	25	0.125-0.044	3-38	130	Φ970	Y225S-4-37	Y220M-4-30	YC1200-4A-5.5
5R4119	30	0.125-0.044	6-76	105	Φ1280	Y280S-4-75	Y25M-4-55	YC1200-4B-7.5

Note：Any change of technical data shall not be advised additionally.

Application Areas

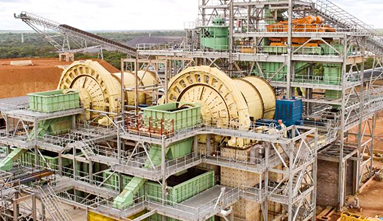

Beneficiation

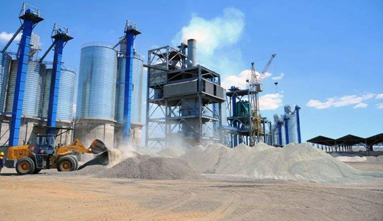

Cement Production

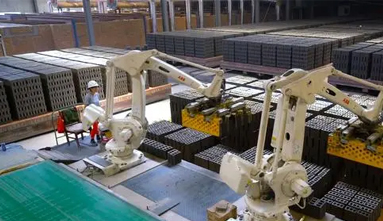

Building Materials Production
$Refractory Materials Production$

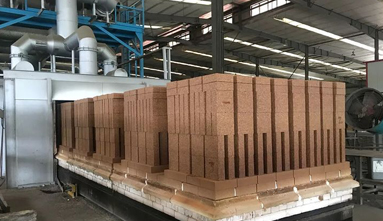

Refractory Materials Production

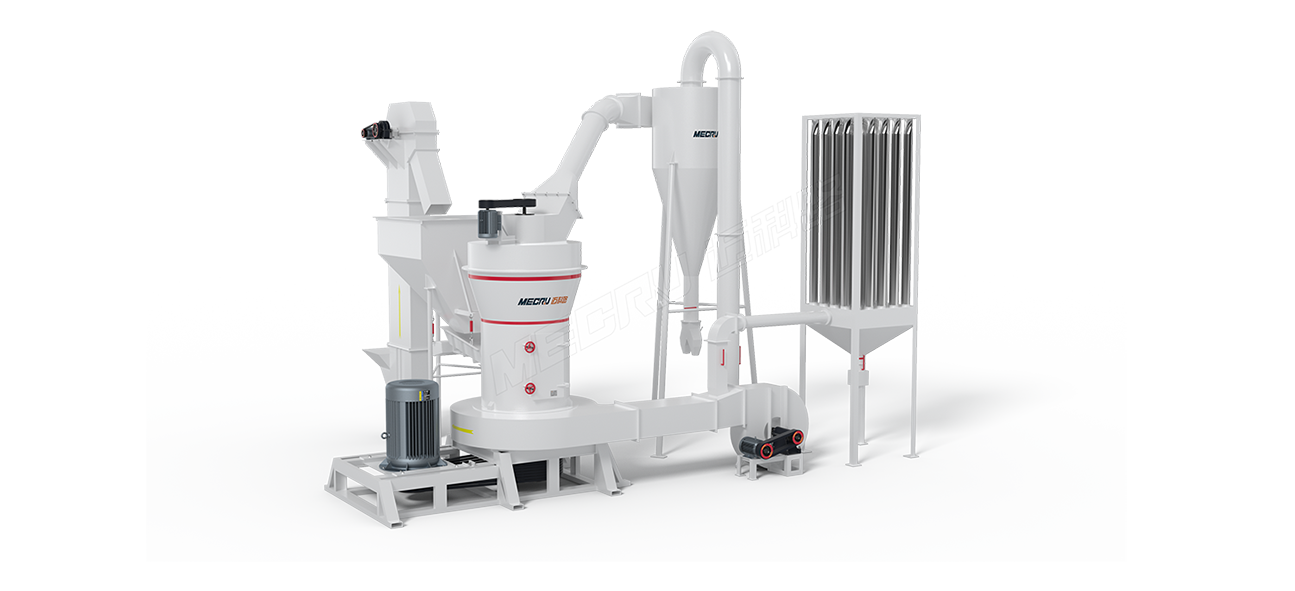

Raymond Mill

Work Principle

The grinding roller is rolled tightly on the grinding ring under the action of centrifugal force. The material is shoveled by the blade and sent to the middle between the grinding roller and the grinding ring. The powdered materials are blown up and passed through the analysis machine, and the materials that meet the fineness requirements pass through the analysis machine, and the grinding materials that do not meet the requirements are returned to the grinding chamber to continue grinding, and the materials that pass the analysis machine enter the cyclone separator for separation and collection.

Customer Case

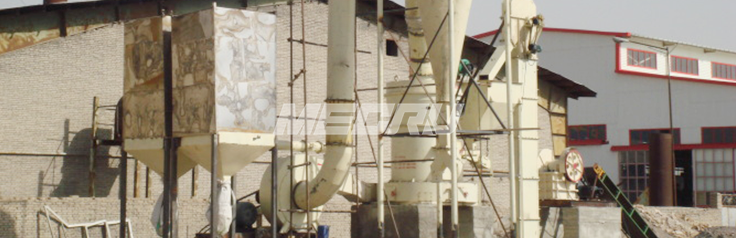

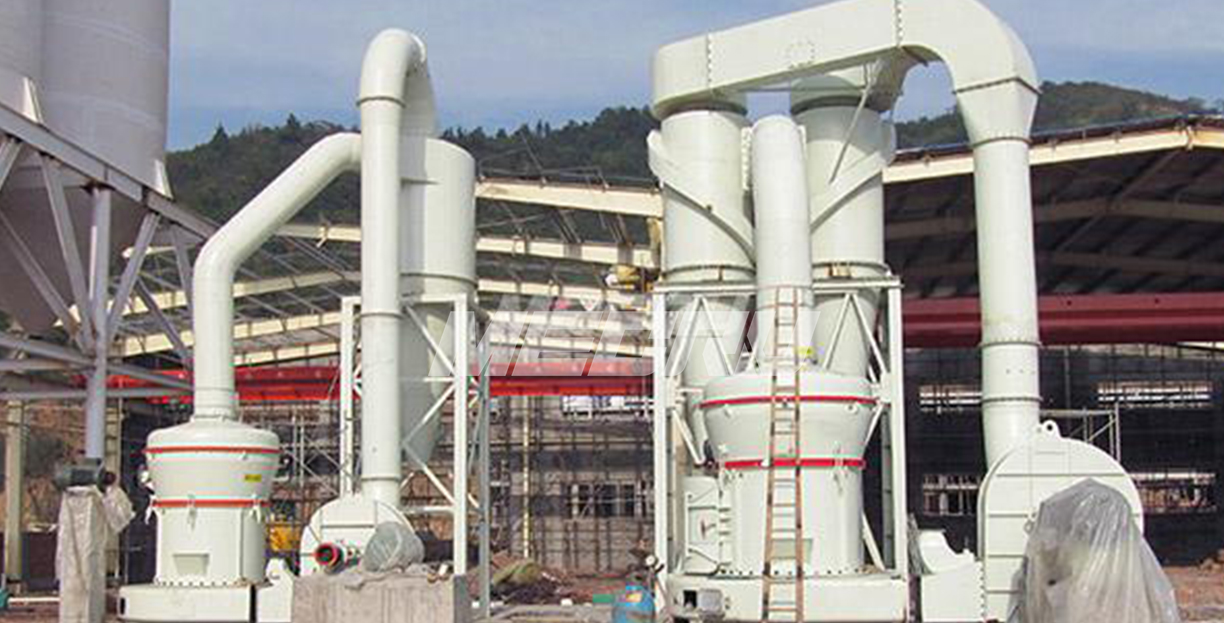

30tph limestone grinding line in Yunnan

Limestone is a large amount of raw materials used in construction materials and industry. It is not only rich in resourc...
