Introduction

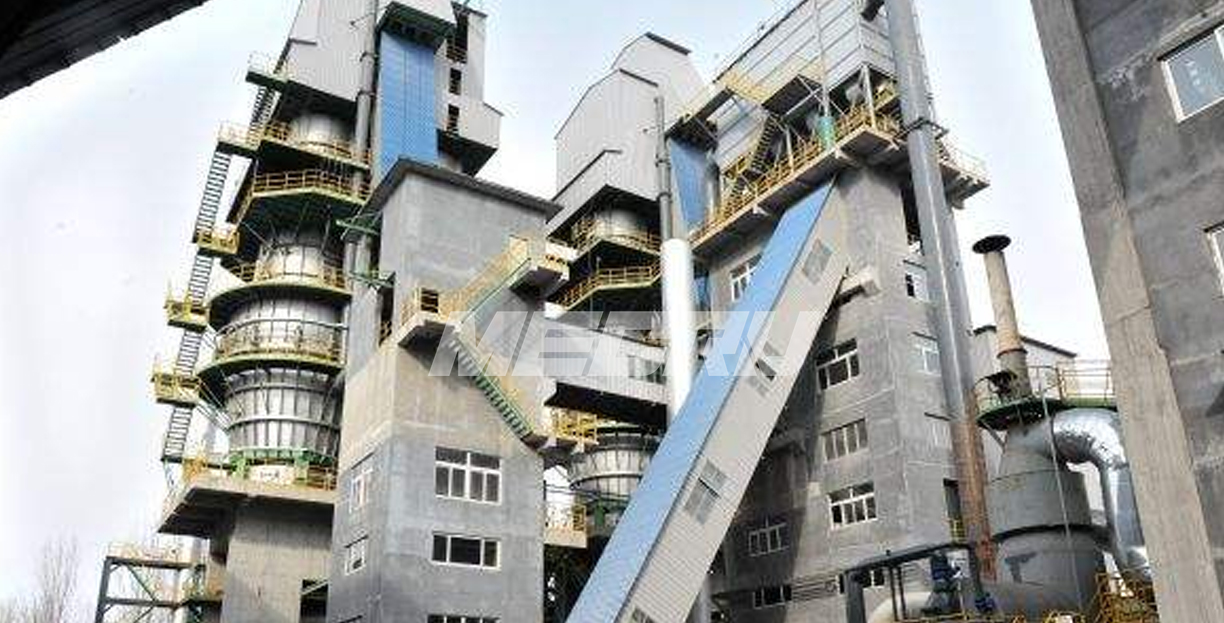

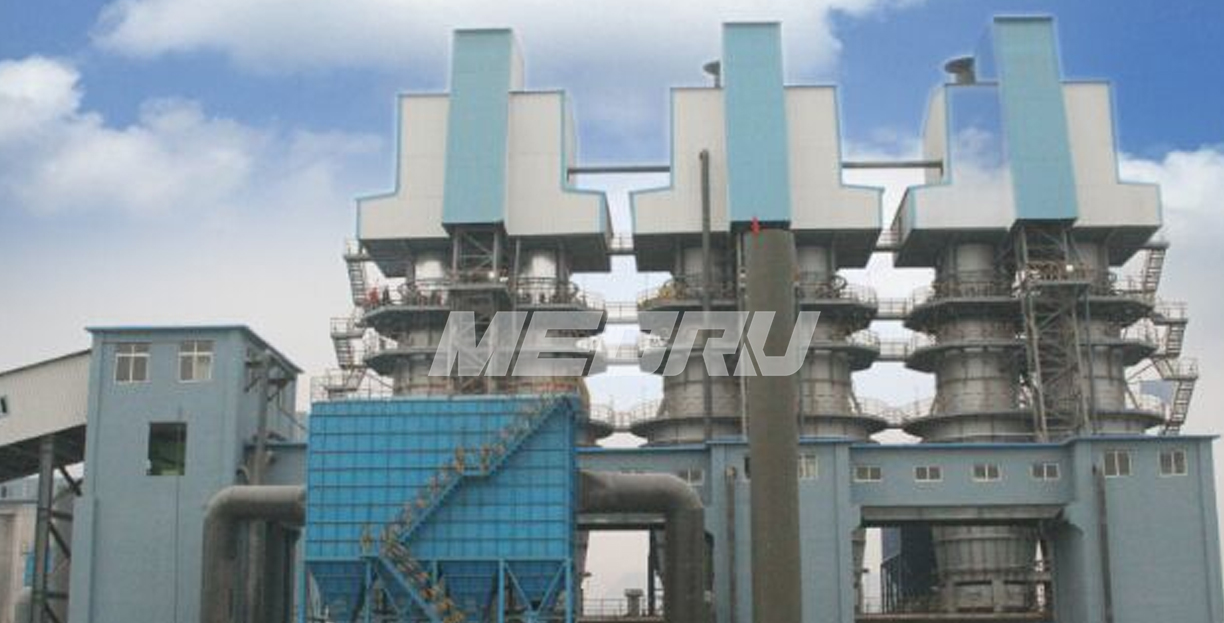

Shaft kiln, also known as vertical kiln, bottle kiln, is a kiln used for forging refractory raw materials and lime. It is composed of kiln body, feeding device and ventilation equipment. Its advantages are less capital investment, less floor space, high cooking efficiency, low fuel consumption, and easy machine automation and automation.

Application Areas

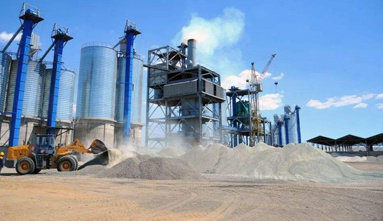

Cement Production

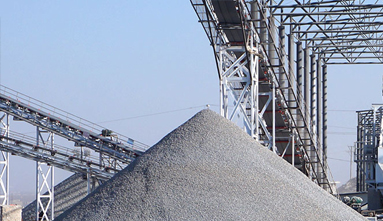

Lime Production

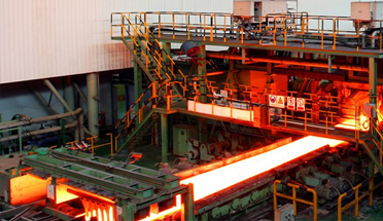

Metallurgical Industry
$Refractory Materials Production$

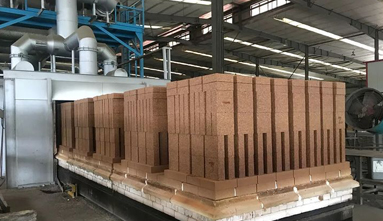

Refractory Materials Production

Technical Parameters

Capacity(t/d)	50	100	150	200	300	400
main equipment	Main supporting equipment models and technical economic indicators
shaft kiln	60m³	150m³	200m³	250m³	400m³	500m³
Kiln chamber section form	circle
calcination temperature/℃	1100±50
energy-consumption index/（kCal/kg lime）	950±50
Power consumption indicators/（kW·h/t lime）	25±5
Lime stone:lime	1.6~1.75:1
Lime raw overburning rate/%	≤13
Lime activity /ml	220~280（The specific composition of limestone is determined）
Ash temperature/℃	environment temperature +60
Size of limestone entering kiln/mm	30~80/80~120
emission concentration	≤30

Note：Technical parameters may change, please contact us for the latest values.

Product Advantages

The equipment is simple, the investment is small, the fuel consumed per unit product is low, the cost is low, the utilization factor per unit volume is large, and the floor area of the equipment itself is small.

Work Principle

Work according to the principle of countercurrent heat transfer. The materials in the kiln move from top to bottom, and the flue gas passes through the entire column from bottom to top. The materials are preheated, calcined and cooled in the kiln, which has strict requirements on the block size of the raw materials entering the kiln, generally 25-150mm, but it must be installed in stages. The ratio of the maximum block size to the minimum block size should not exceed 2-3mm.

Customer Case

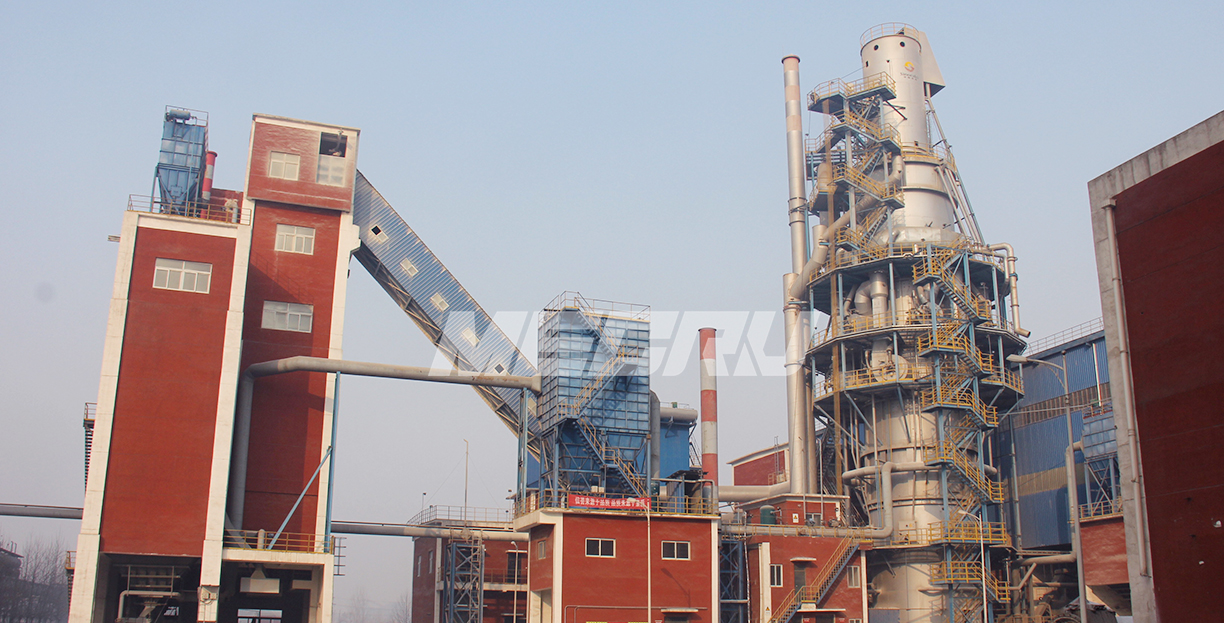

200tpd lime kiln project in Ningxia

After customers from Ningxia left a message on the Internet to consult about the lime kiln project, our project manager ...
