Shaking Table

<3mm

Feeding size

15-108 t/d

Capacity

Applicable materials: Tin, tungsten, gold and silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal etc.
Large Processing Capacity, High Recovery Rate

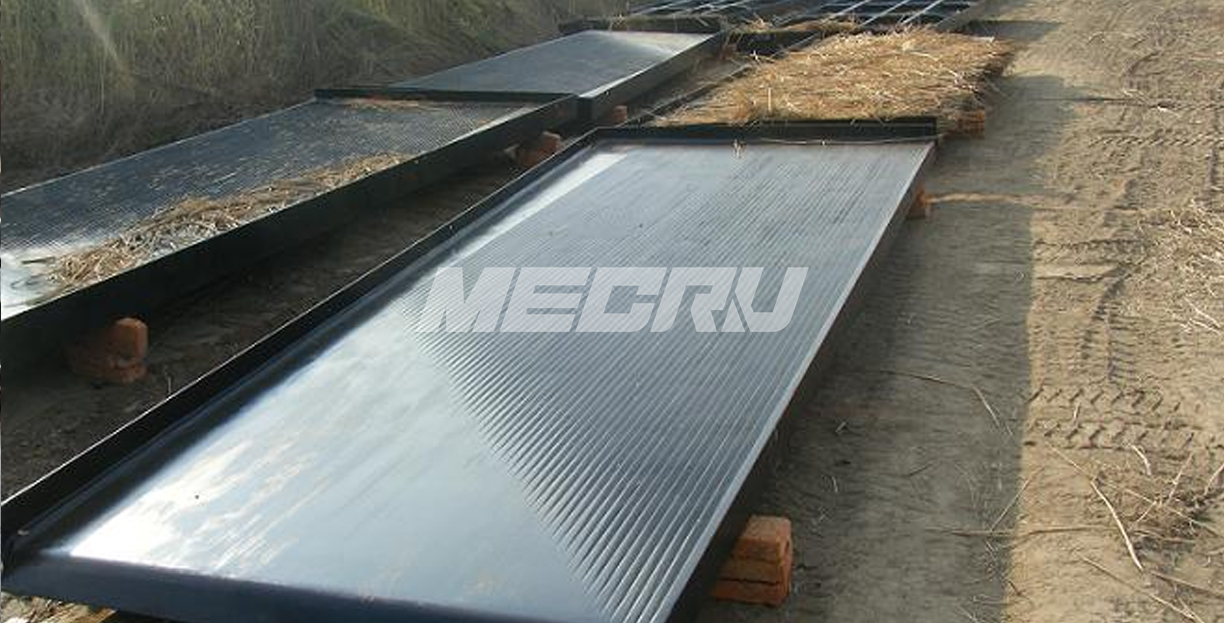

Shaking Table

Product profile

Shaking table is a gravity concentrator used to separate fine-grained materials. It is widely used to separate tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferro-titanium and coal etc. Our factory has a long history of producing shaking table, and continues to develop and innovate to make them have the features of large processing capacity, high recovery rate, and high enrichment ratio.

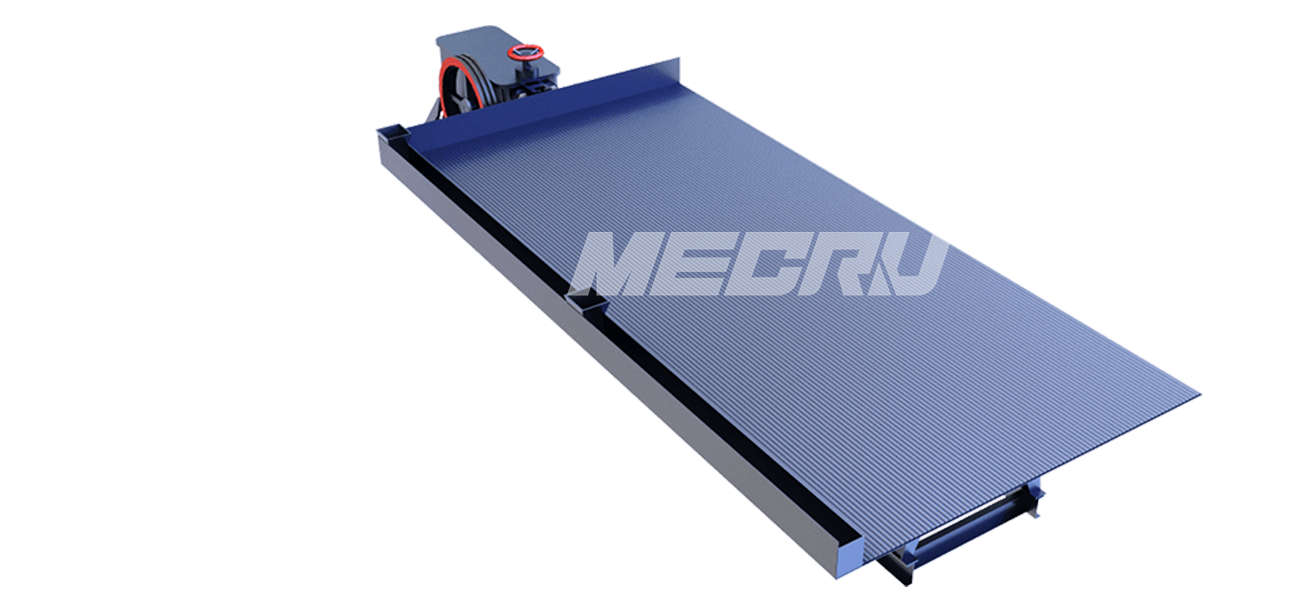

Mouse drag product 360°rotation

Product Advantages

Technical Parameters

Table size(mm)4520x1825x1560
Strokes(mm)Mineral sand10-36
Minearl slime8-20
Stoke frequency(r/min)Mineral sand220-280
Mineral slime310-340
Crosswise Slope(°)0-10
Feeding(mm)<3
Water consumption(t/h)19-75
Capacity(t/h)15-108
Motor ModelY90S-4

Note:Any change of technical data shall not be advised additionally.

Application Areas

Prev
Next

Shaking Table

Shaking Table

Work Principle

The shaking table is mainly composed of electric motor, slope regulator, bed head, bed surface, water tank, ore trough, to multiple bar and other parts. The shaker is a kind of widely used gravity separation equipment, which uses the mechanical shaking and water washing to separate the ore particles according to the density. The remarkable characteristic of the shaker is high rich ore ratio. It is often used to obtain the final concentrate and separate the final tailings, which can effectively process fine materials.

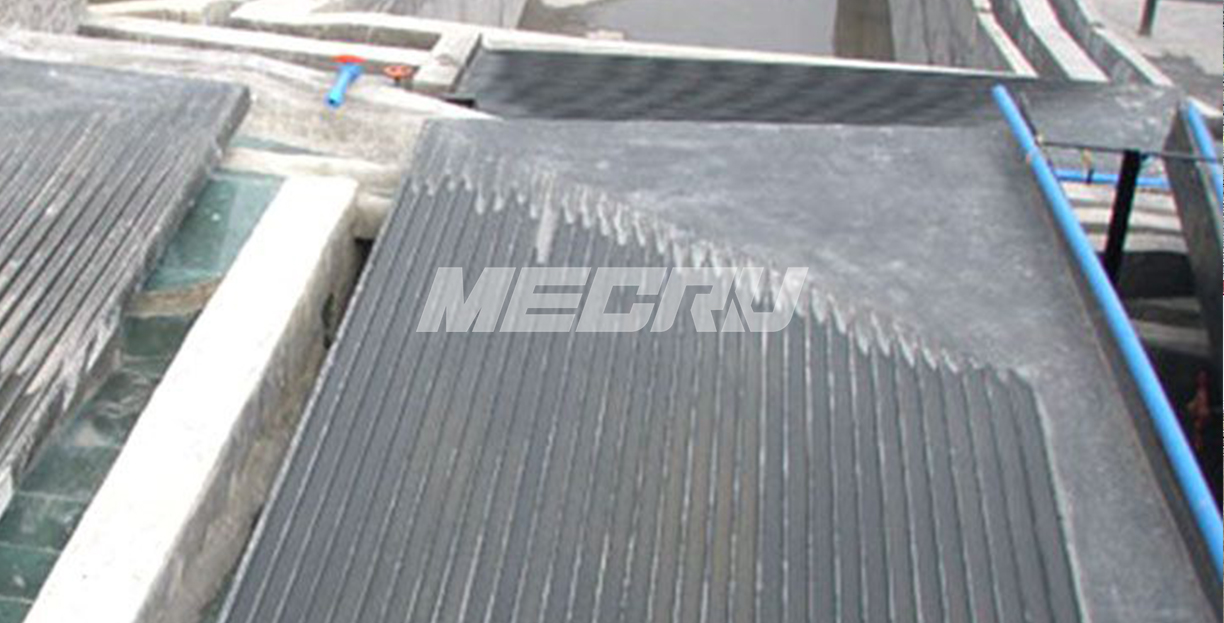

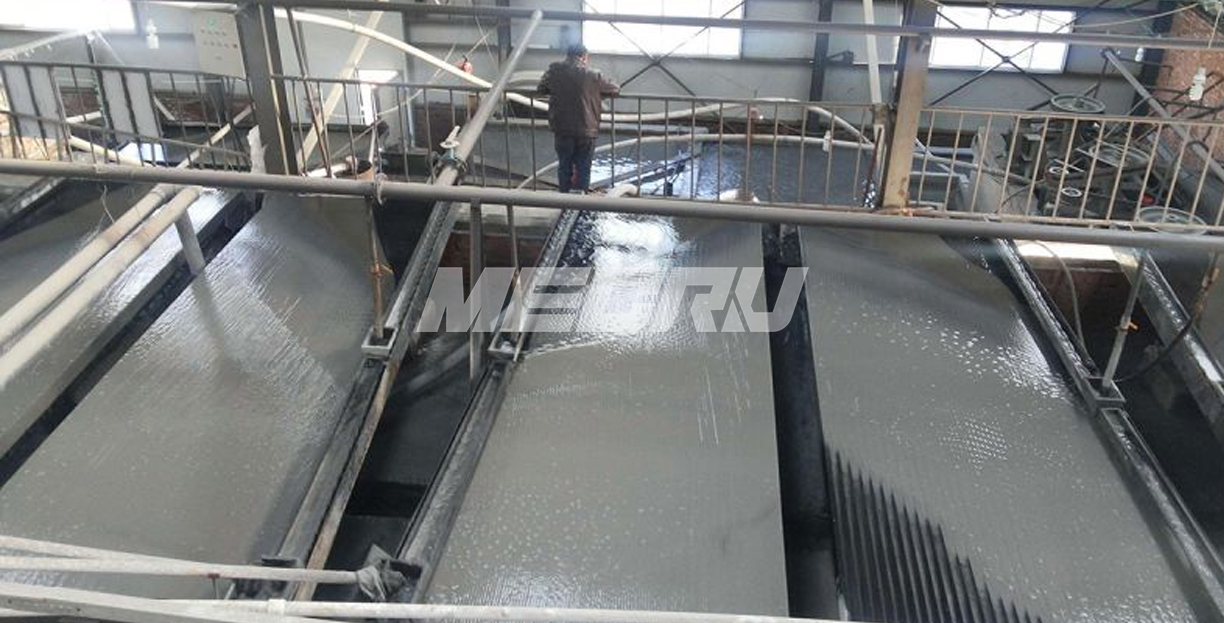

Customer Case
