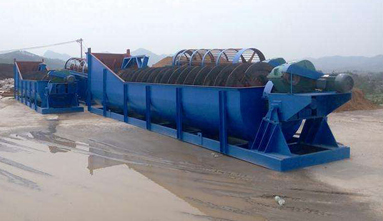

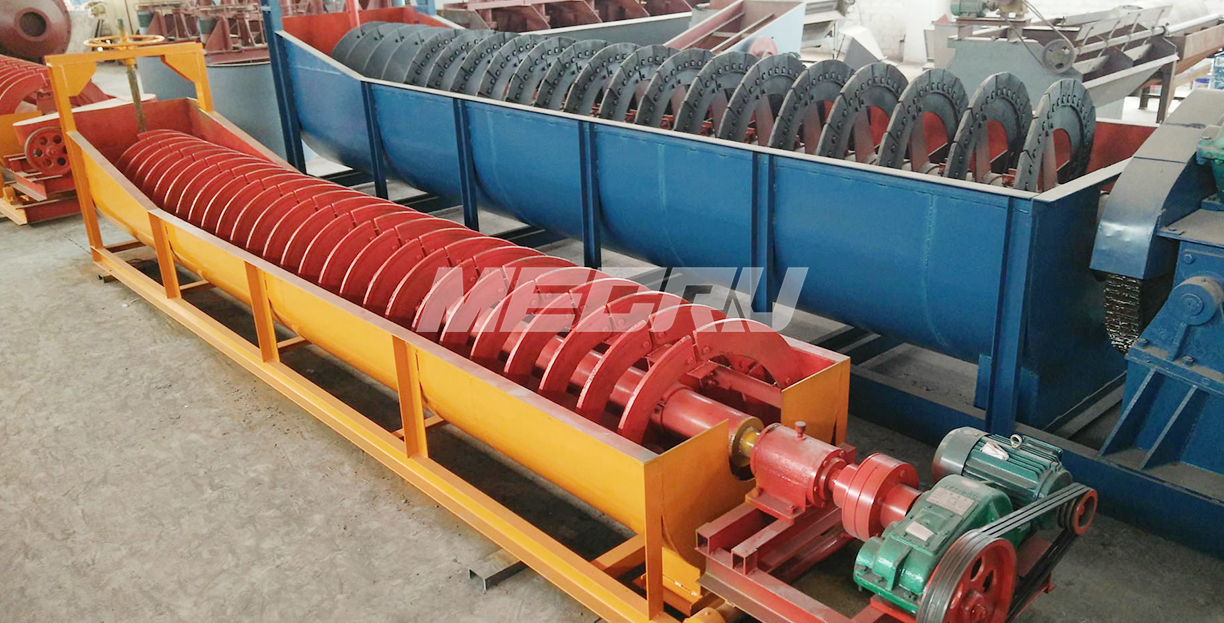

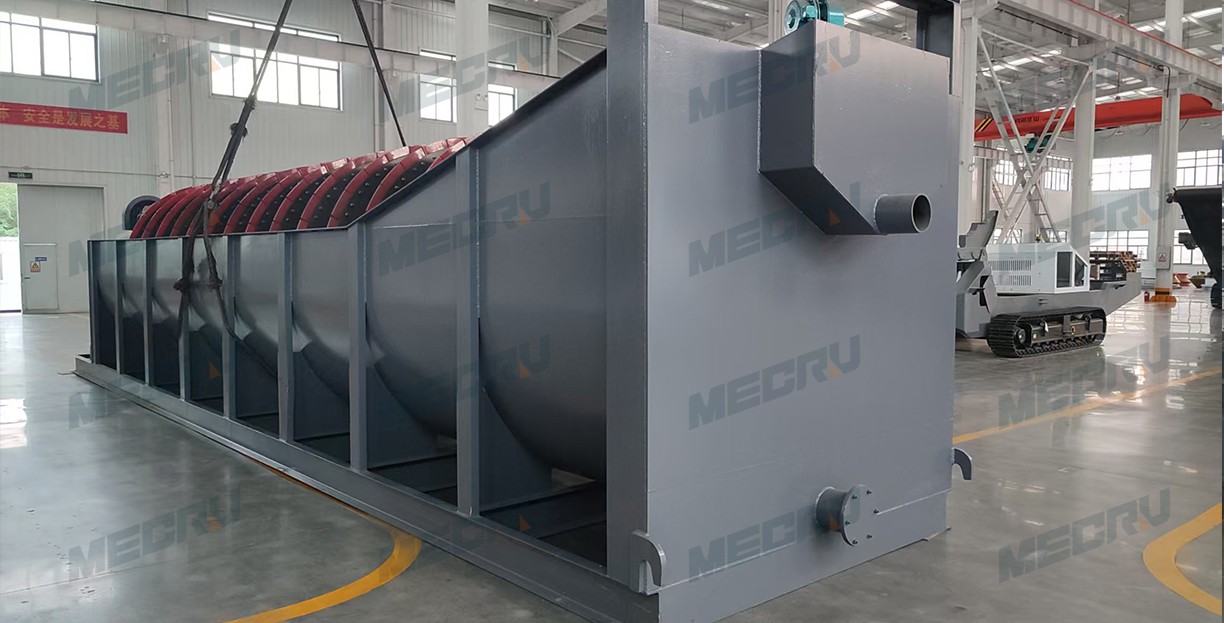

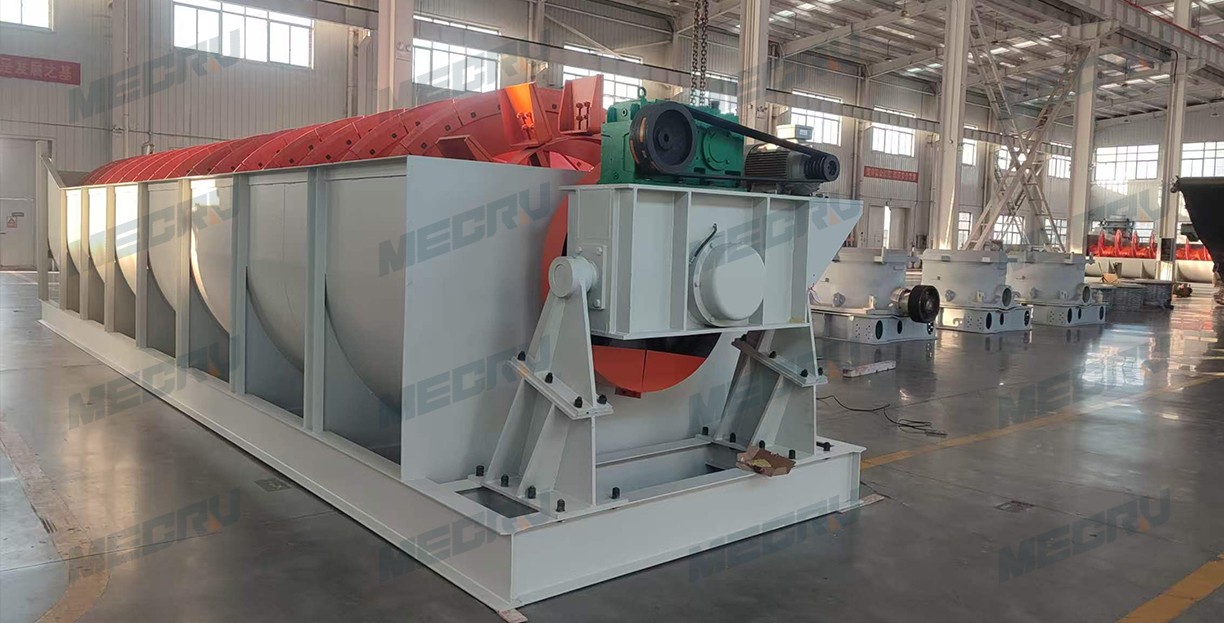

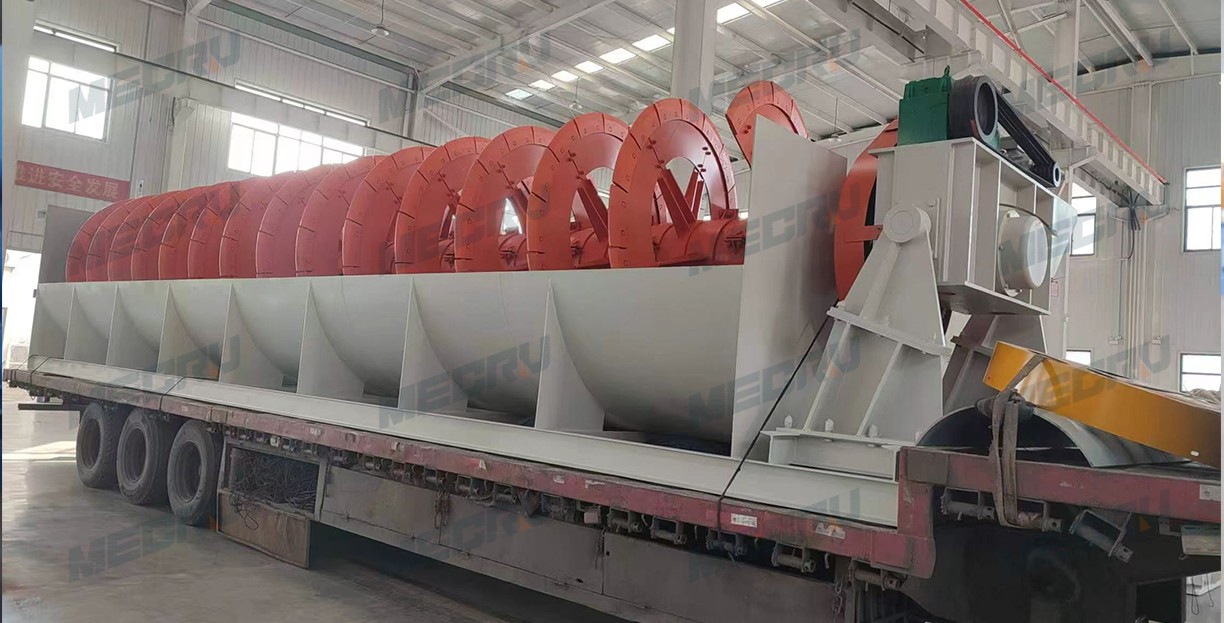

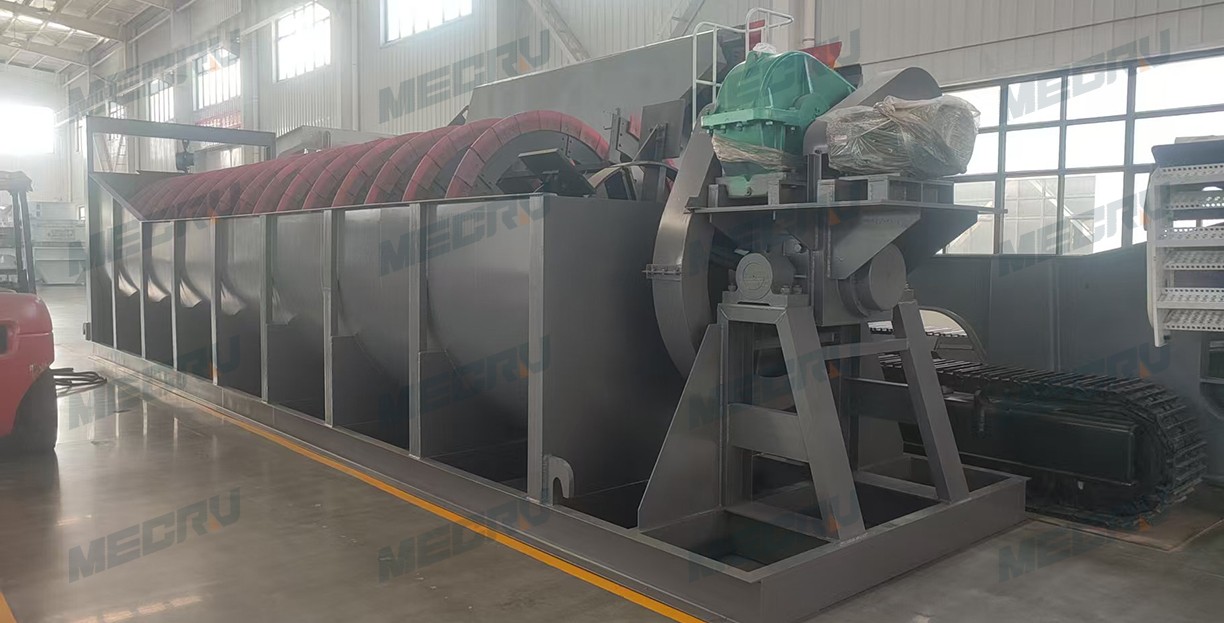

Spiral Classifier

0.07-0.83mm

Feeding size

80-23300t/d

Capacity

Applicable materials: suitable for all kinds of ores with overflow particle size of 0.07mm ~ 0.83mm

Low Energy Consumption and High Precision

Get a Quote

Product profile

The spiral classifier mainly has four types of high weir single screw and double screw, submerged single screw and double screw. It is widely used in concentrators and ball mills to form closed-circuit circulation range split flow ore sand, or used in Gravity beneficiation plants come to classify ore and fine mud, and perform particle size classification of ore pulp in metal beneficiation processes, and desilting and dewatering operations in ore washing operations.

Product Advantages

The structure of the spiral classifier is simple and easy to maintain, greatly reducing the maintenance workload.

High degree of automation, easy operation, stable and reliable work.

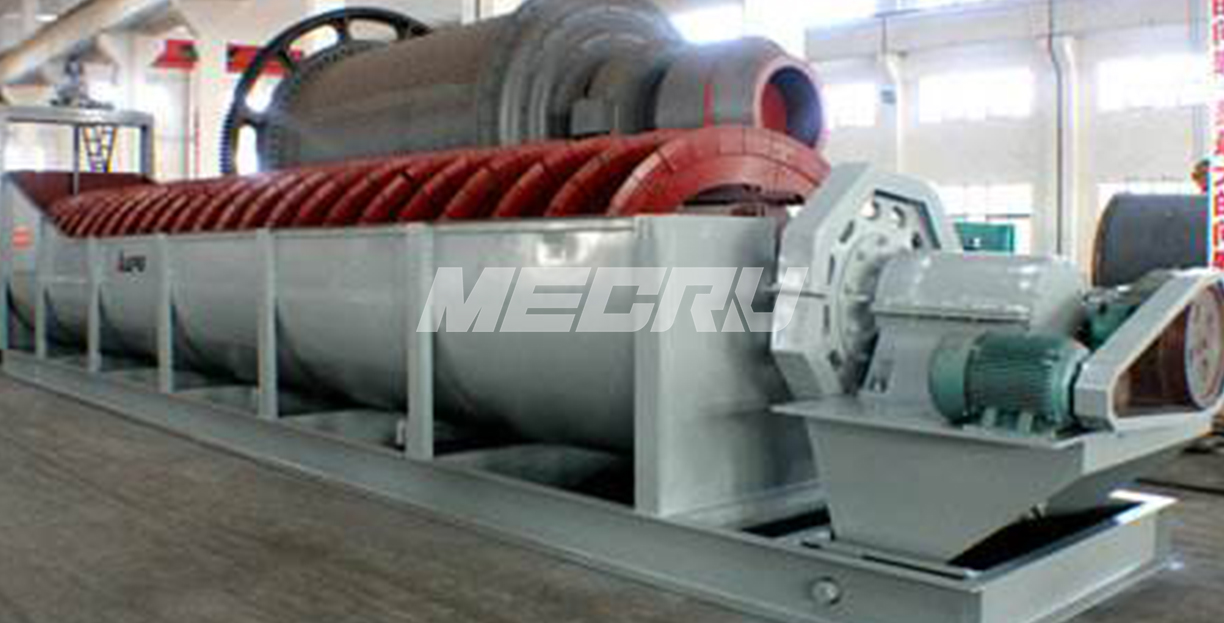

It can be connected with the ball mill self-flow, eliminating the need for slurry pumping.

Large volume, with buffer and transportation functions, which is beneficial to grinding operations.

High precision, high classification fineness, to prevent oversize particles and sieve residues in products.

Technical Parameters

Model	Spiral Diameter (mm)	Trough Length (mm)	Spiral rotate speed (r/min)	Processing capacity (t/d)		Dimensions (mm≤)			Total weight(t)
Model	Spiral Diameter (mm)	Trough Length (mm)	Spiral rotate speed (r/min)	Underflow	Overflow	Length	Width	Height	Total weight(t)
FG-3	300	3000	12-30	80-150	20	3850	490	1140	0.7
FG-5	500	4500	8-12.5	135-210	32	5430	680	1480	1.9
FG-7	750	5500	6-10	340-570	65	6720	980	1820	3.1
FG-10	1000	6500	5-8	675-1080	110	7590	1240	2380	4.9
FC-10	1000	8400	5-8	675-1080	85	9600	1240	2680	6.2
FG-12	1200	6500	4-6	1170-1870	155	8180	1570	3110	8.5
FC-12		8400		1170-1870	120	10370	1540	3920	11.0
2FG-12		6500		2340-3740	310	8230	2790	3110	15.8
2FC-12		8400		2340-3740	240	10370	2790	3920	17.6
FG-15	1500	8300	4-6	1830-2740	235	10410	1880	4080	12.5
FC-15		10500		1830-2740	185	12670	1820	4890	16.8
2FG-15		8300		2280-5480	470	10410	3390	4080	22.1
2FC-15		10500		2280-5480	370	12670	3370	4890	30.7
FG-20	2000	8400	3.6-5.5	3290-5940	400	10790	2530	4490	20.5
FC-20		12900		3210-5940	320	15610	2530	5340	28.5
2FG-20		8400		7780-11880	800	11000	4600	4490	35.5
2FC-20		12900		7780-11880	640	15760	4600	5640	48.7
FG-24	2400	9130	3.67	6800	580	11650	2910	4970	26.8
FC-24		14130		6800	490	16580	2930	7190	41.0
2FG-24		9130		13600	1160	12710	5430	5690	45.8
2FC-24		14130		13700	910	17710	5430	8000	67.9
2FG-30	3000	12500	3.2	23300	1785	16020	6640	6350	73.0
2FC-30	3000	14300	3.2	23300	1410	17091	----	8680	84.8

Note：Any change of technical data shall not be advised additionally.

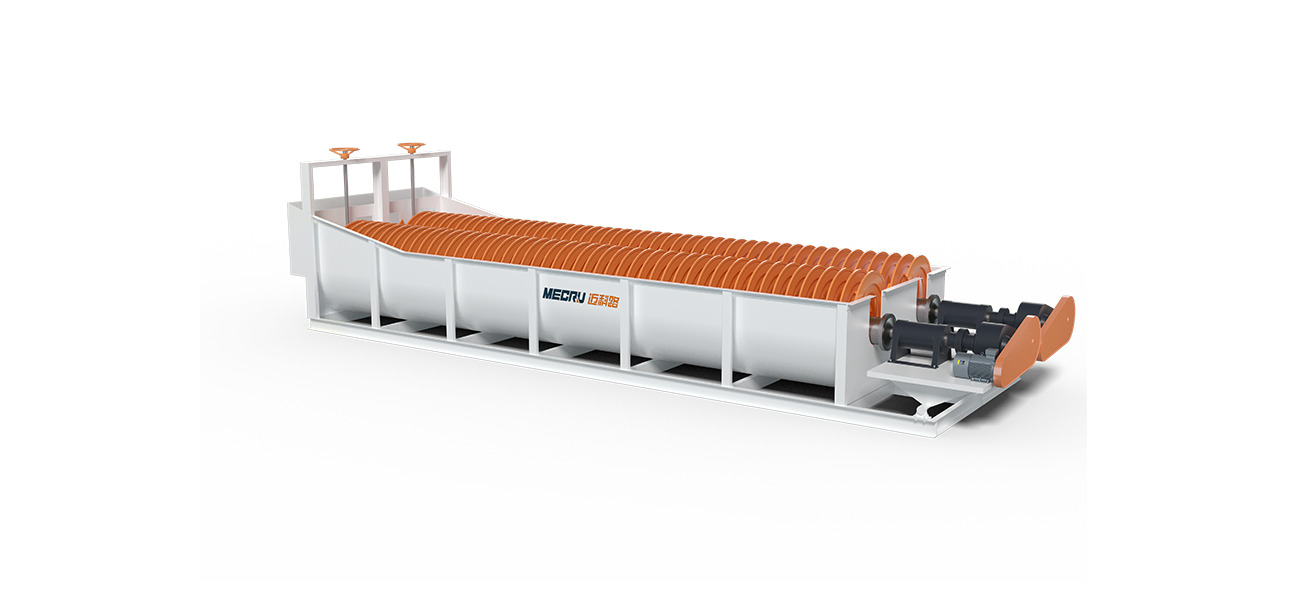

Spiral Classifier

Work Principle

The spiral classifier is based on the principle that the solid particles are different in size and specific gravity, so the settling speed in the liquid is different. The fine ore particles float in the water and overflow, and the coarse ore particles sink to the bottom of the tank and are pushed upward by the screw. To perform mechanical classification.

Customer Case

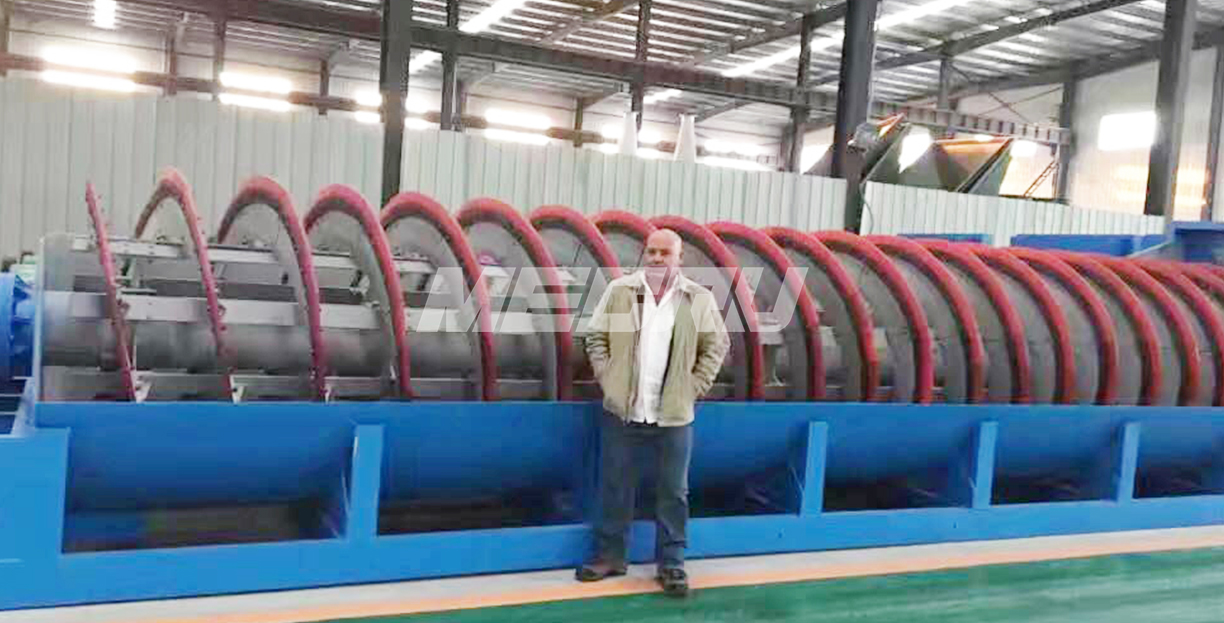

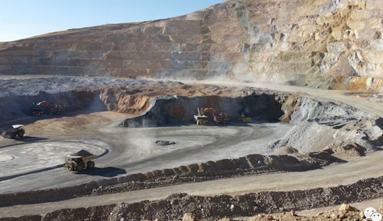

Australian iron ore beneficiation case

The Australian customer has been cooperating with Mecru Heavy Industry for a long time, and this time he wants to add a ...

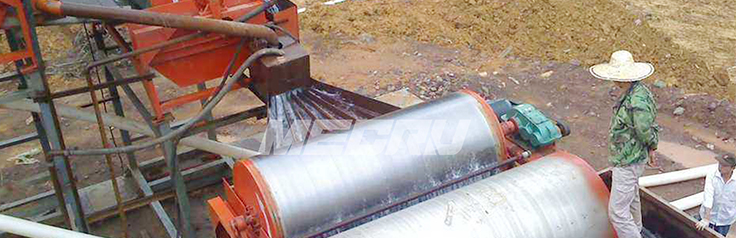

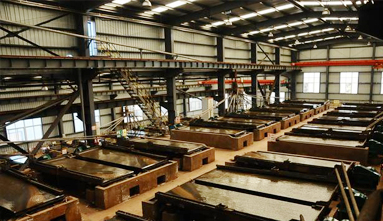

Case of Pakistan Manganese Ore Magnetic Separation...
