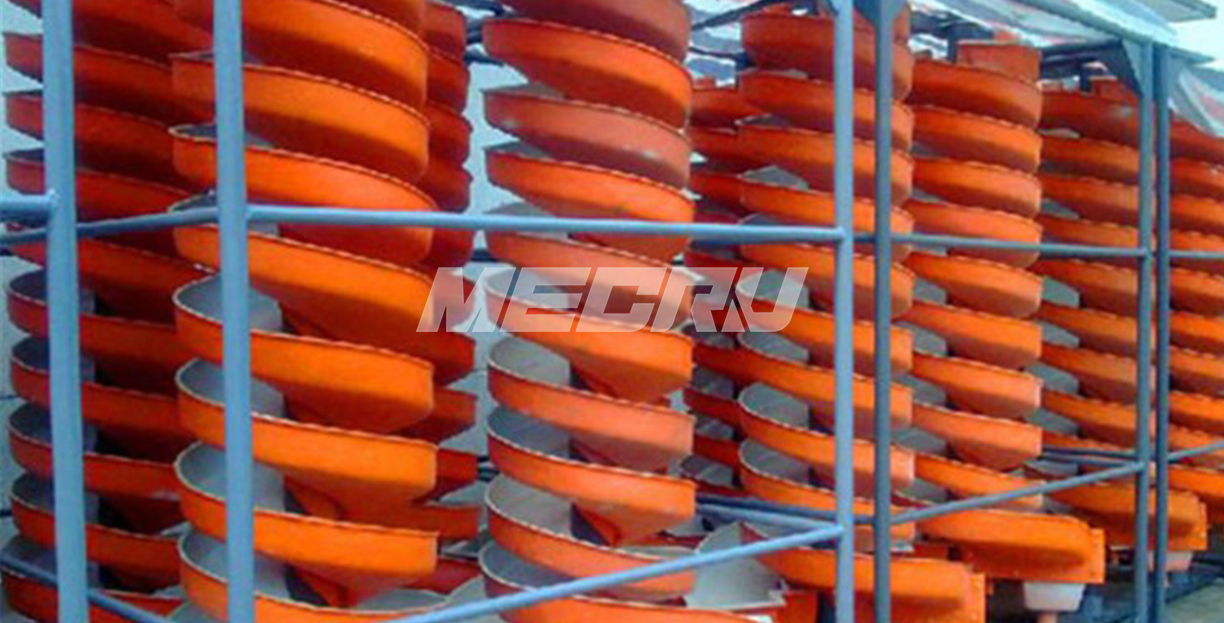

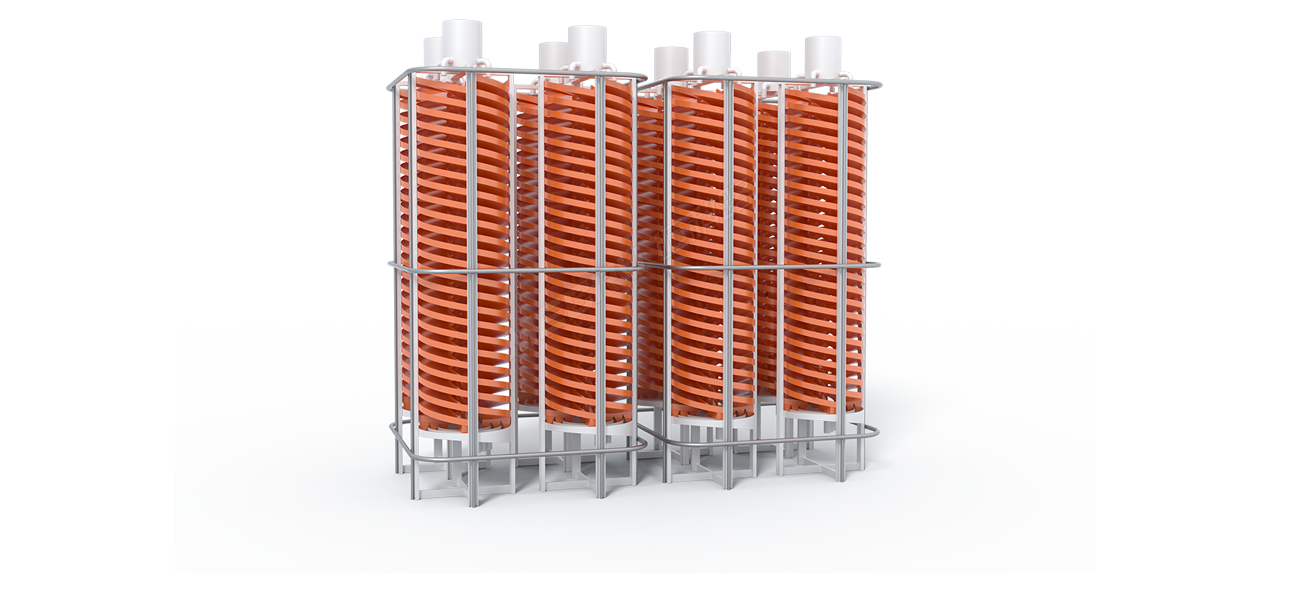

Spiral Chute

0.02-0.4mm

Feeding size

0.2-45t/h

Capacity

Applicable materials: iron ore, ilmenite, chromite, pyrite, zirconite, rutile, monazite, tungsten ore, tin ore, niobium ore, etc

Corrosion Resistance

Get a Quote

Product profile

Spiral chute is a combination of the advantages of spiral classifier, shaking table, centrifugal separator ,it is suitable for the separation size 0.3-0.02 mm fine material of iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphorus ore , tungsten, tin, tantalum, niobium and other non-ferrous metals, rare metals and non-metallic objects which has a specific gravity difference.

Product Advantages

the separation process is stable, easy to control, to allow a wide range of ore concentration, high enrichment ratio, high recovery rate.

simple installation, convenient operation, small investment and quick effect.

mineral processing stability, clear ore separation.

keep away from moisture, rust and corrosion resistance.

Technical Parameters

Model	D\|2000	D\|1500	D\|1200		LI900		LI600		LI400
Outside Diameter(mm)	2000	1500	1200		900		600		400
Inside Diameter(mm)	2000	1500	1200		900		600		400
Pitch of screw(mm)	1200	900	720	540	540	360	390	360	180
Span ratio	0.6	0.6	0.6		0.4	0.6	0.4		0.45
Gradient	9	9	9		9		9		9
Number of threads	2-4	2-4	2-4		2-3		1-2		1-2
Number of Turns	3.5	4	4-5		4-5		4-5		4-5
Max feed size(mm)	0.04-0.4	0.03-0.3	0.03-0.3		0.03-0.3		0.02-0.2		0.02-0.2
Mine density(%)	20-40	20-45	30-50		30-50		30-50		30-50
Capacity (t/h)	15-45	10-25	4-6		2-3		0.8-12		0.5-0.2
floor area(㎡)	5.7	5.8	2		1.2		0.5		0.25
Height(m)	6.8	6.1	5.23		4		2.6		1.3

Note：Any change of technical data shall not be advised additionally.

Application Areas

Iron Ore Separation

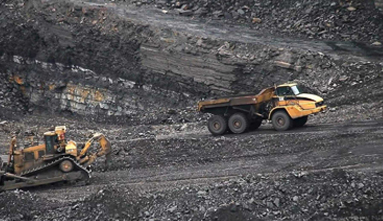

Gold Ore Separation

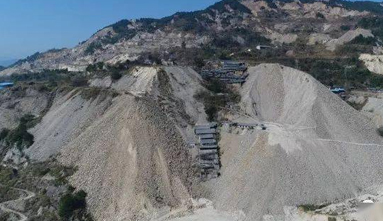

Tungsten Ore Separation

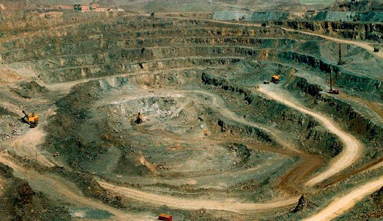

Tantalum Ore Separation

Work Principle

The ore propeller rotates and flows from top to bottom from the two feed ports of the spiral chute. Ore and sand are separated under the action of gravity and centrifugal force due to differences in specific gravity, particle size and shape. The concentrate flows into the concentrate hopper and the tailings flows into the tailings hopper.

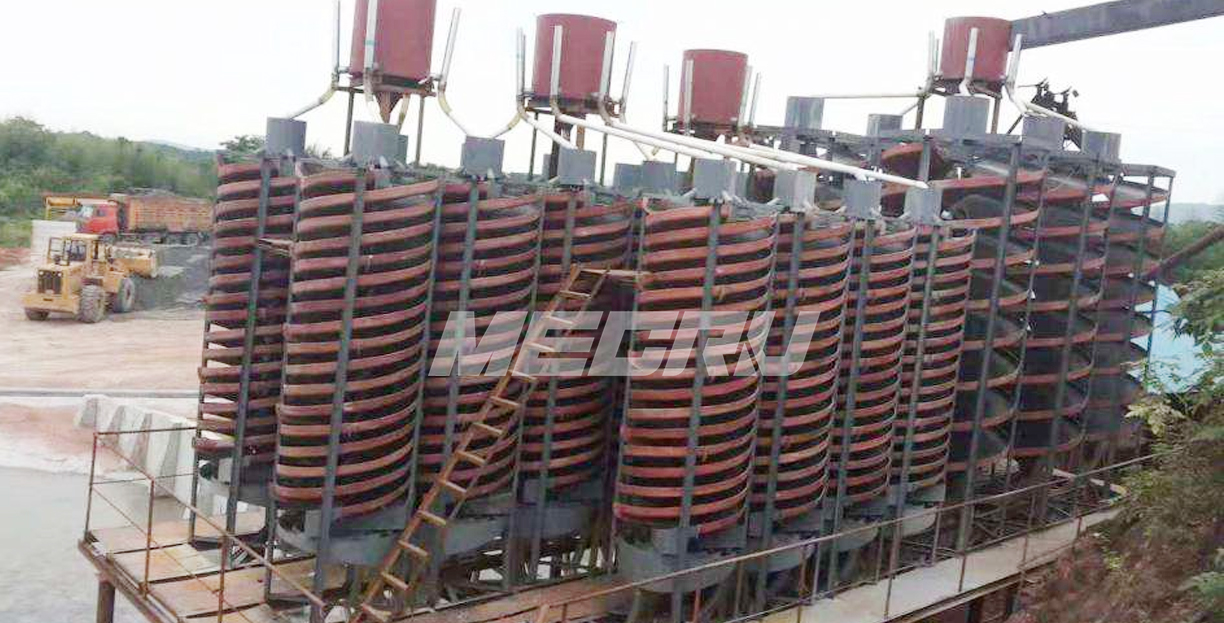

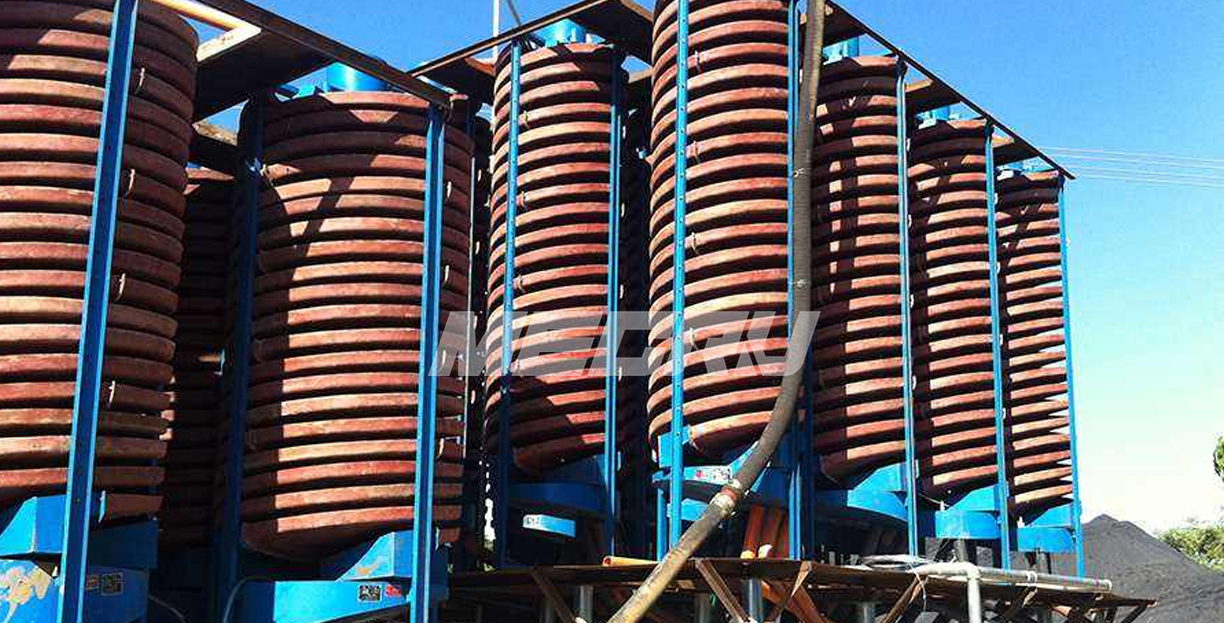

Customer Case
