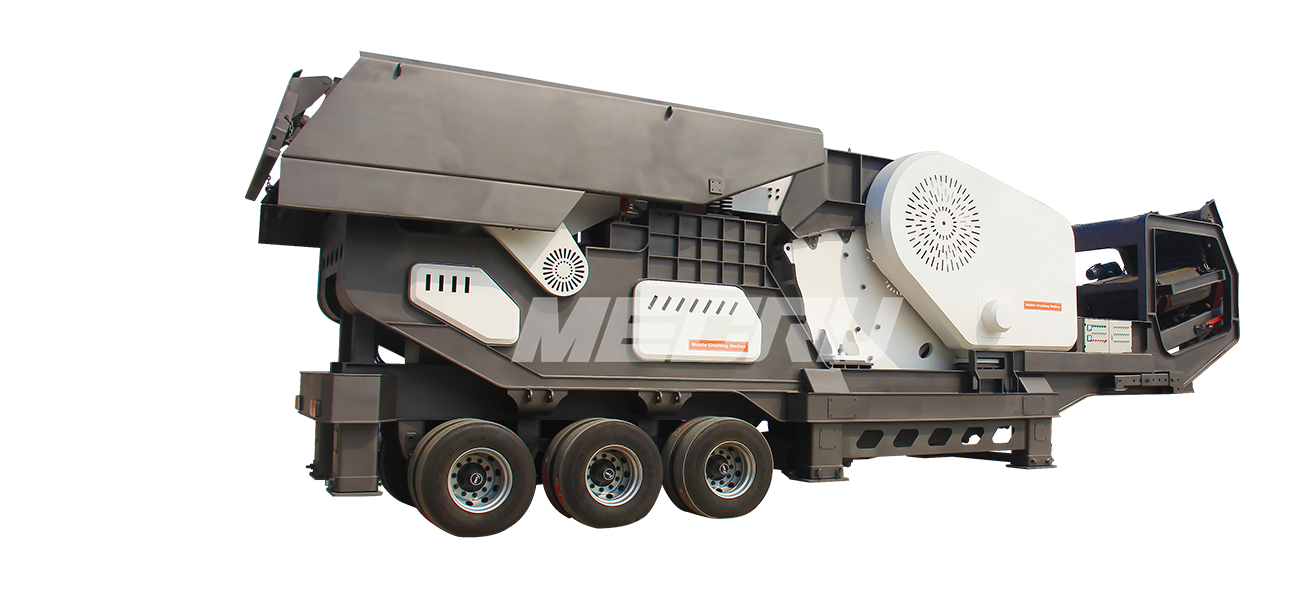

Tyre Jaw Crusher

≤900mm

Feeding size

100-650t/h

Capacity

Applicable materials: granite, quartzite, marble, iron ore, diabase, basalt, andesite, tuff, diorite, etc.

Maneuverable, Nemesis of Hard Rock

Get a Quote

Product profile

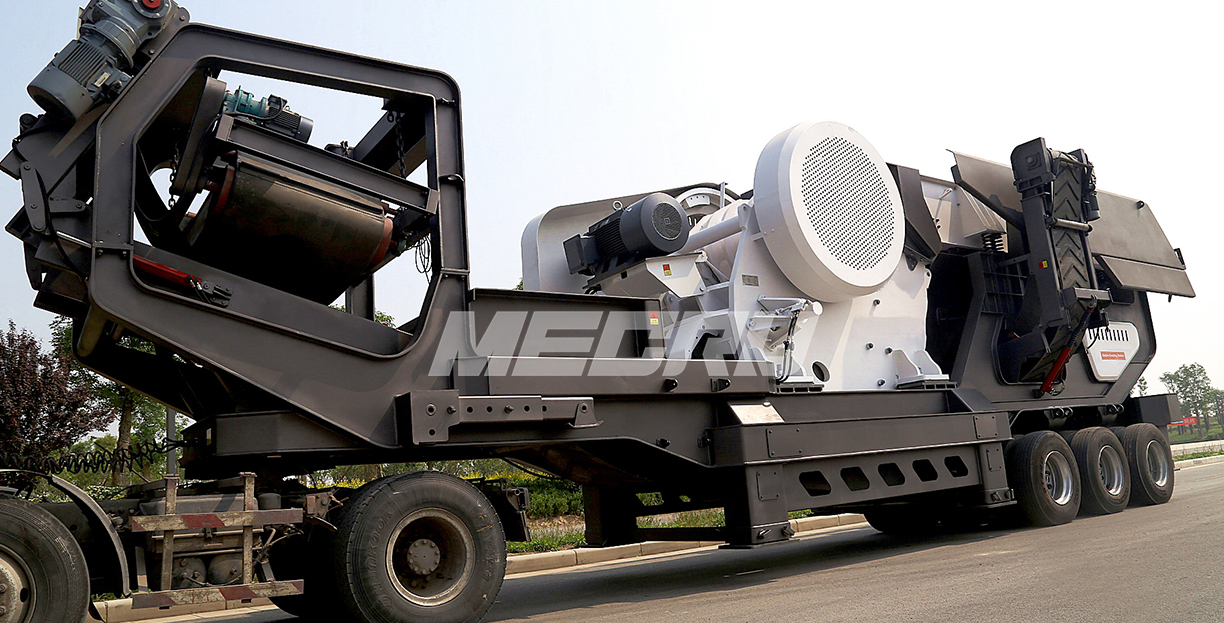

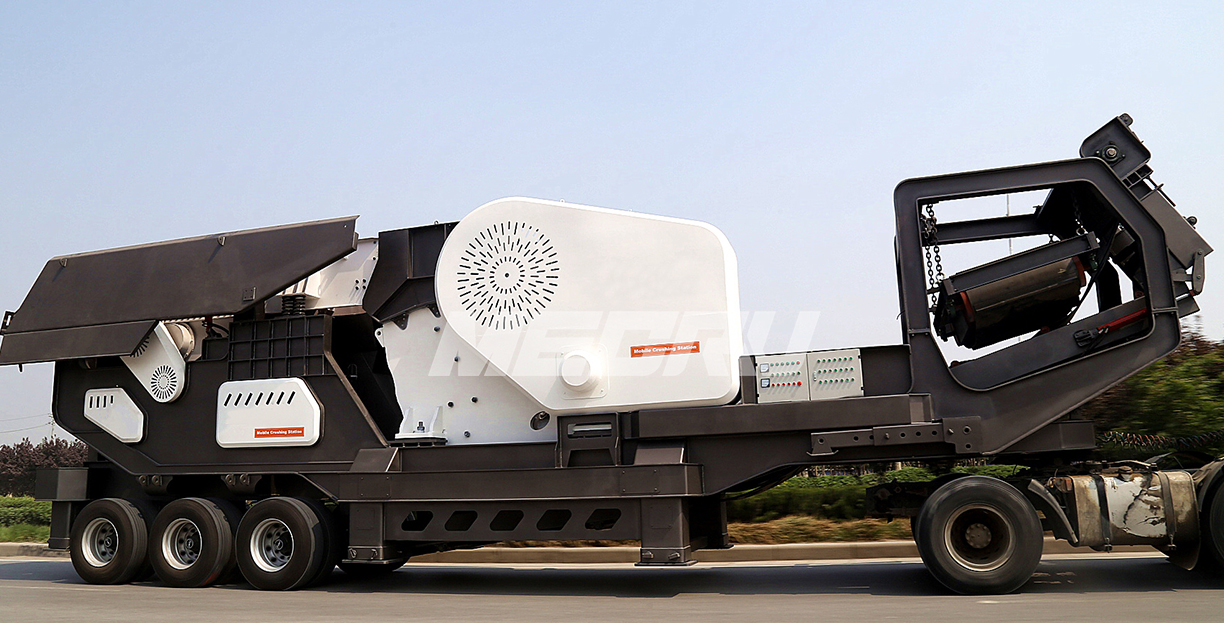

All the equipment of the tire mobile jaw crusher is on-board, including jaw crusher machine, feeder, vibrating screen etc the main equipment, with high flexibility and strong mobility, it can save a lot of capital construction, demolition and transfer costs. The tire jaw-type mobile crusher can crush high-strength, high-hardness, highly abrasive materials. The crushing strength can reach 320MP. It can be crushed to medium particle size at one time, with high production capacity and low operating cost. It is suitable for various materials.

Product Advantages

The ship-shaped steel frame structure is adopted, low chassis, light weight, reasonable volume control, small turning radius, flexible and fashionable modeling, which can meet the needs of customers to the maximum extent.

Integrated unit design, flexible equipment battlefield, on-site crushing can be achieved, and raw material transportation links and costs are eliminated.

Automated control system, high degree of mechanization, simple and convenient operation, convenient for the construction of automated production lines.

The configuration of Mecru tire mobile jaw crusher is flexible, which can be operated independently by a single machine or combined by multiple machines to meet the larger production needs.

Diesell and electricity dual purpose design can be equipped with diesel generator set to meet the needs of different customers in different working environments.

Technical Parameters

Model	Feeder Model	Jaw Crusher Type	Belt Conveyor Type	Extended Conveyor	Dymano	Capacity(t/h)	Power(kw)
YG938E69	ZSW-380*96	PE600*900	B650*7M	adapting	adapting	70-150	91.5
YG1142E710	ZSW-420*110	PE750*1060	B800*9M	adapting	adapting	80-200	134
YG1349E912	ZSW-490*130	PE900*1200	B1000*11M	adapting	adapting	150-300	146

Note：Any change of technical data shall not be advised additionally.

Application Areas

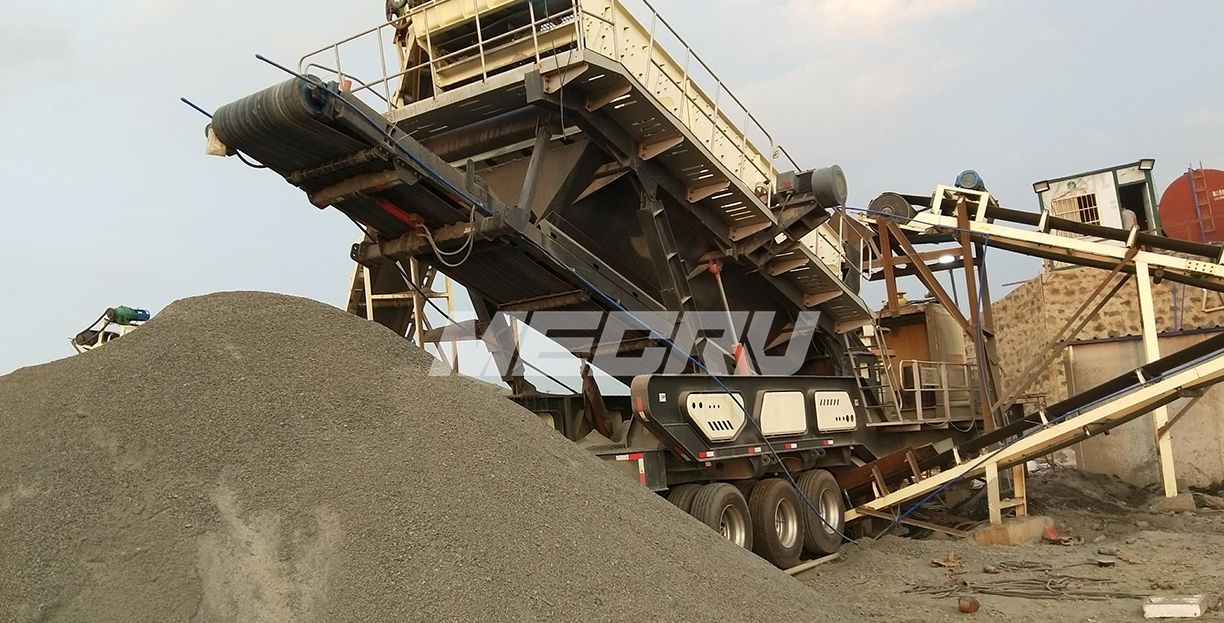

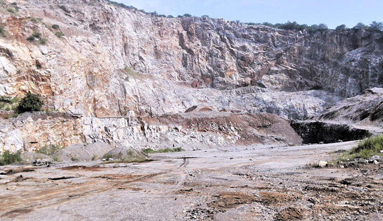

Mines and Quarries

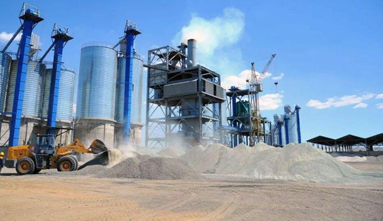

Cement Production
Building Construction
Road Construction

Work Principle

The material is fed into the silo by the loader and falls into the feeder. A part of the fine material falls into the discharge belt through the grate of the feeder and is sent to the pile. The large material is fed into the jaw type through the feeder to vibrate evenly crusher, the crushed materials fall into the belt conveyor, and then sent to other mobile crushing and screening equipment to complete the preliminary coarse crushing operation.

Customer Case

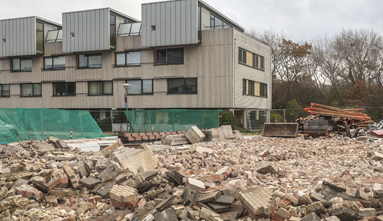

Guangzhou 300t/h construction waste treatment line

The disposal of construction waste in my country has always been a major obstacle to urban development, but at the same ...

Venezuela 220t/h limestone crushing production lin...

Limestone is abundant and is in demand by many industries because of its properties. Due to the rapid development of so...

Venezuela 220t/h limestone crushing production line
