≤800mm
Feeding size
100-500t/h
Capacity

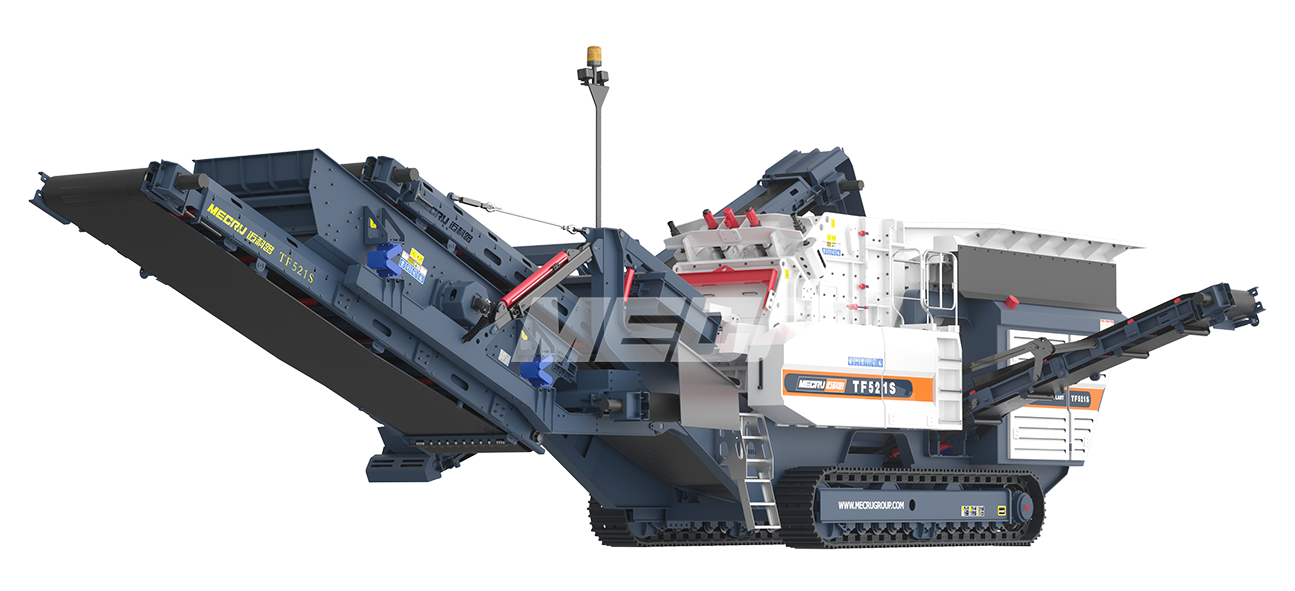

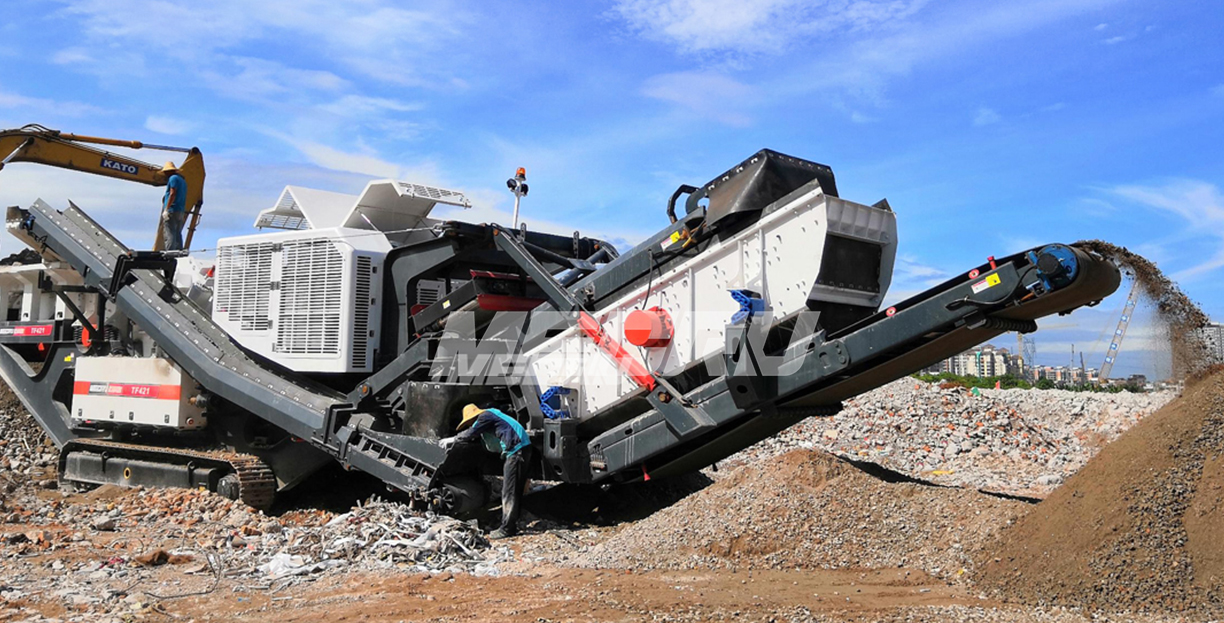

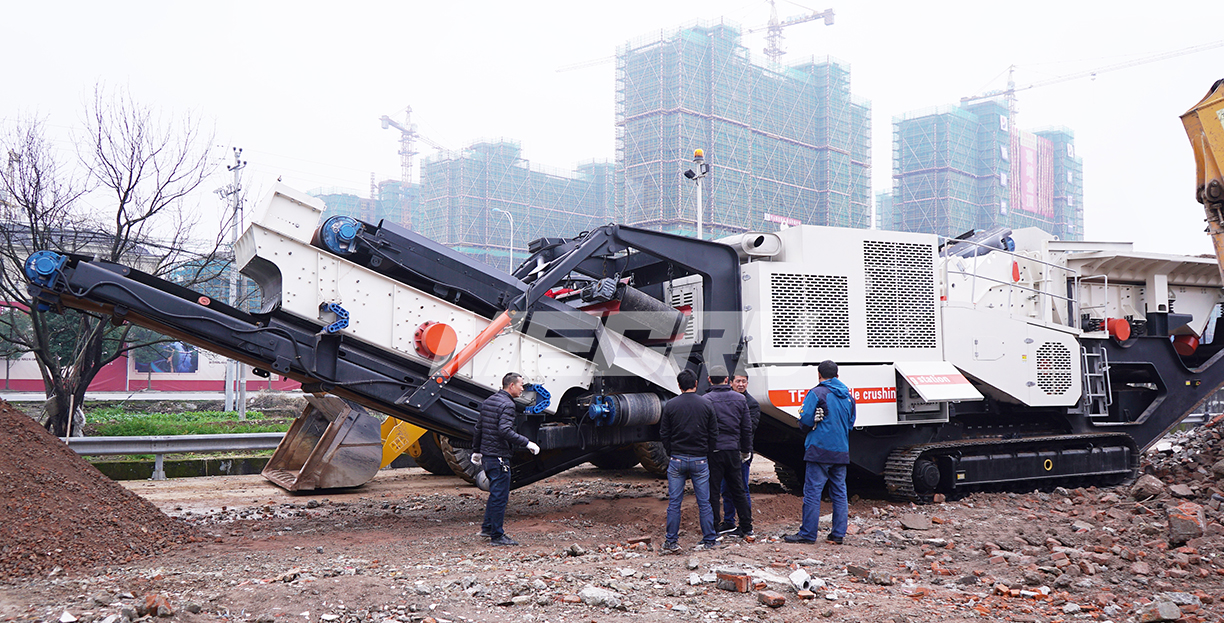

The tracked impact crusher is a crawler-type mobile crushing equipment specially designed for quarrying, mining, solid waste recovery and reuse, with the impact crusher as the main engine. It has the characteristics of fast movement and convenient transition. Mecru tracked impact crusher has reasonable configuration, strong adaptability, large crushing ratio and good product shape.
Vibrating feeder with heavy grate bars has a complete pre-screening function, which can discharge fine materials that do not need to be crushed from the side belt conveyor for further processing.
The on-board feeder, vibrating screen, and belt conveyor are convenient and reliable in operation, efficient and energy-saving.
Stable performance, easy maintenance and flexible configuration.
Crawler walking, can climb the slope to meet the crushing requirements of mines, hydropower stations, coal mines and other projects.
Mecru tracked mobile impact crusher has low requirements on the operation site, and it is more convenient to adjust the turning, and has greater mobility flexibility, and can adapt to more complicated operation sites.
Items | Crusher model | Feeder model | Screen model | Capacity(t/h) | Feeding size(mm) | Transportation size (mm) | Working size(mm) | Weight(t) |
TF411/TF411S | CI411 | ZSW3896 | YK1225 | 100-200 | 930*580 | 12450*2500*3100 | 12450*2500*3100 | 30/38 |

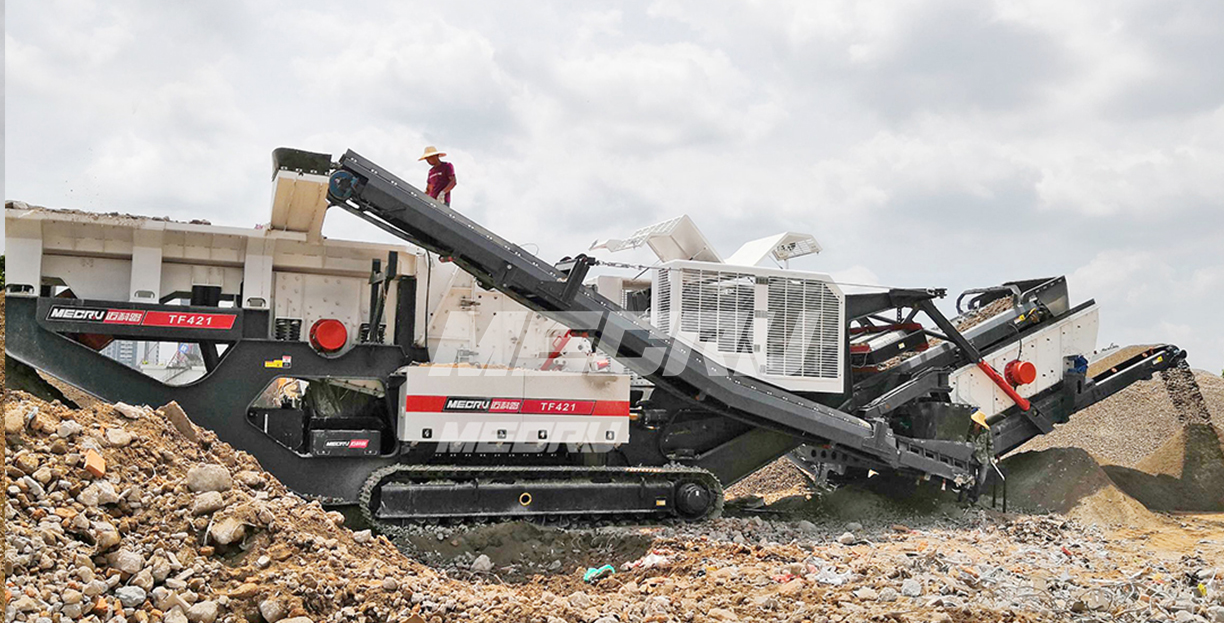

TF421/TF421S | CI421 | ZSW4211 | YK1330 | 200-350 | 960*1360 | 15000*3000*3800 | 16618*3388*3800 | 46/55 |
TF431/TF431S | CI431 | ZSW4913 | YK1445 | 250-450 | 1050*1700 | 15200*3200*3800 | 17100*3400*3800 | 53/60 |
TF521/TF521S | CI521 | ZSW1242 | 200-300 | 1380*1000 | 16335*3675*3750 | 16335*6805*5060 | 60 | |
TF531/TF531S | CI531 | ZSW1344 | 300-500 | 1570*1050 | 17375*4240*3920 | 17375*8050*5030 | 72 |
Note:Any change of technical data shall not be advised additionally.

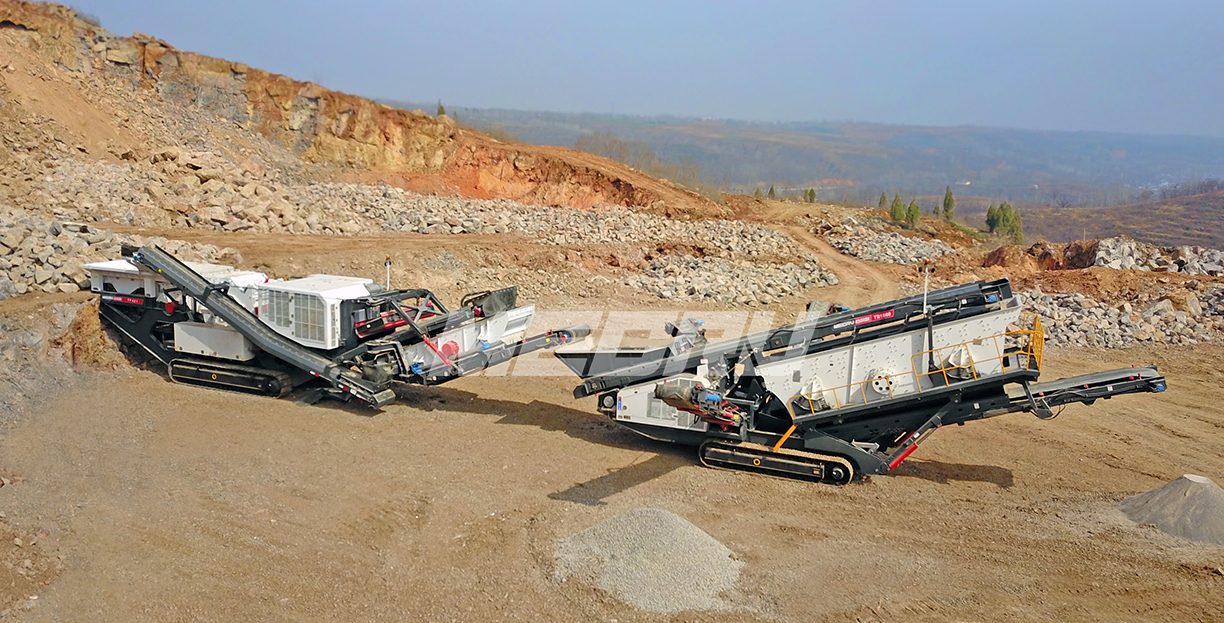

Mines and Quarries

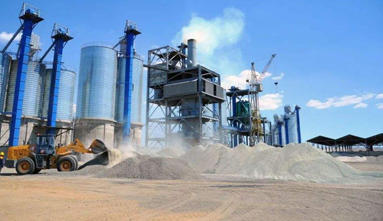

Cement Production

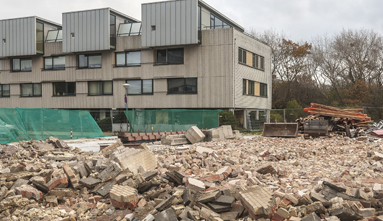

Building Construction
Road Construction
The materials are evenly conveyed into the crusher by the feeder. After the initial crushing by the impact crusher, a closed circuit system is formed by a circular vibrating screen to realize the cyclic crushing of the materials. The finished materials are output by the conveyor for continuous crushing operations.
