Tracked Jaw Crusher

400-1200mm

Feeding size

100-450t/h

Capacity

Applicable materials: granite, quartzite, marble, iron ore, diabase, basalt, andesite, tuff, diorite, etc.

Maneuverable, Nemesis of Hard Rock

Get a Quote

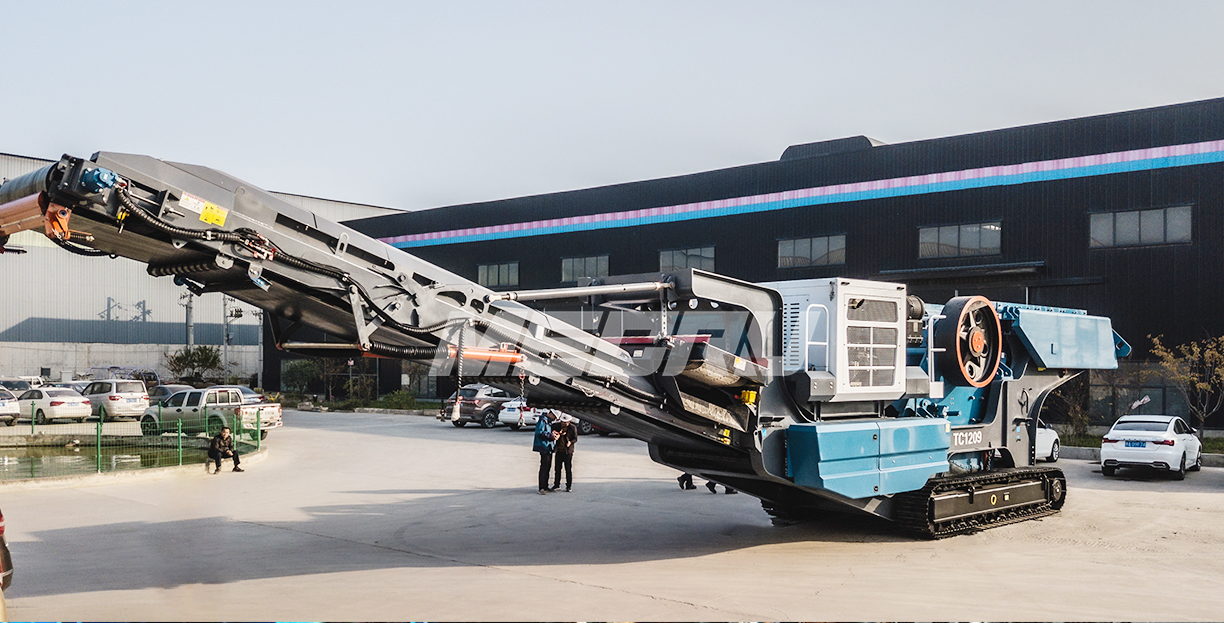

Product profile

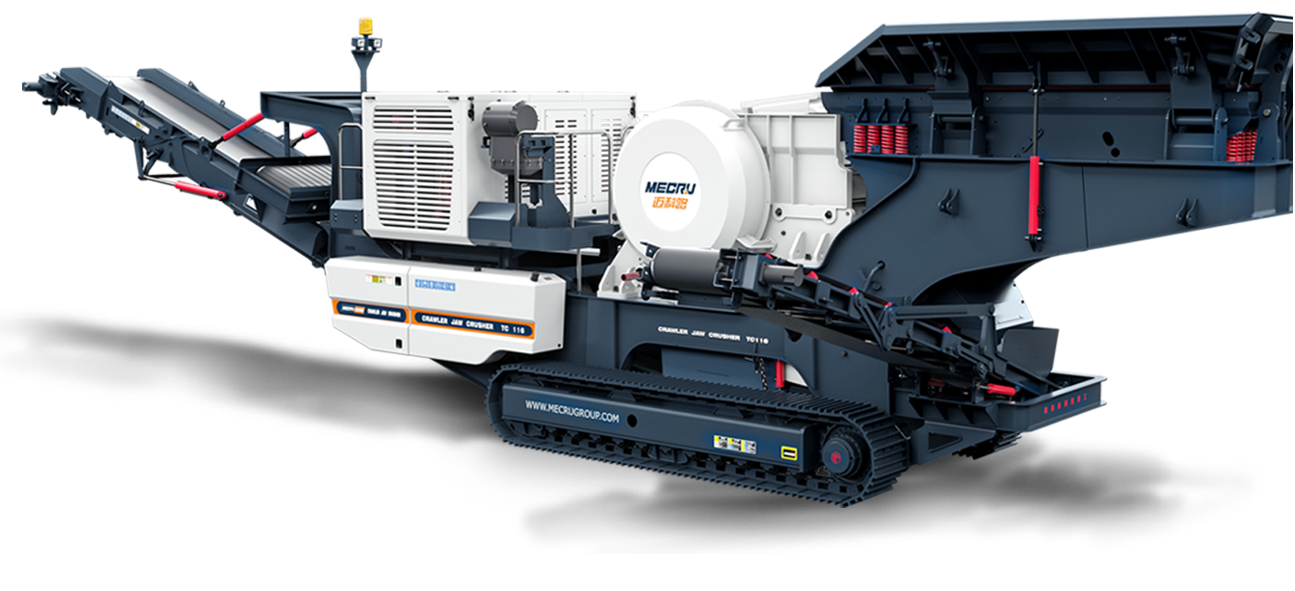

Mecru tracked jaw crusher is a mobile crusher with full hydraulic drive and crawler chassis. The mobile crusher combines the feeder, jaw crusher, belt conveyor and other equipment into one to form an integrated operation mode. It can effectively shorten the crushing process and save time. The tracked jaw crusher is suitable for operations with complex terrain or frequent transfer.

Product Advantages

Mecru tracked jaw crusher has the functions of feeding, crushing, screening and conveying, with reasonable and compact layout.

Intelligent automation control, fully hydraulic drive, efficient jaw crushing host, high-strength car body and chassis.

Convenient transportation, especially suitable for narrow and complex area. Remote control, crawler walking, equipped with multi-functional appliances, wide range of applications.

Mecru tracked jaw crusher adopts hydraulic adjustment of ore discharge opening and compact design, which can quickly and conveniently adjust the clearance of discharge opening.

Technical Parameters

project	TC96	TC106	TC116	TC120
Crusher model	C96	C106	C116	TC120
Inlet size (mm)	930*580	1060*700	1150*800	1200*850
Discharge opening size (mm)	60-175	70-200	70-200	70-200
Feeder model	ZSW3896	ZSW4211	ZSW1342	ZSW1342
Length(mm)	3800	4200	4210	4210
Width(mm)	900	1100	1255	1255
Feeding height (mm)	3500	3800	4390	4390
Unloading height (mm)	3200	3500	3870	3860
magnetic separator			RCYQ-1300	RCYQ-1500
Transport size (length * width * height) (mm)	1245025003100	1400031473700	1641133753788	1848533753788
Processing capacity (t/h)	100-200	155-350	170-600	170-600
Weight(t)	30	46	60	65

Note：Any change of technical data shall not be advised additionally.

Application Areas

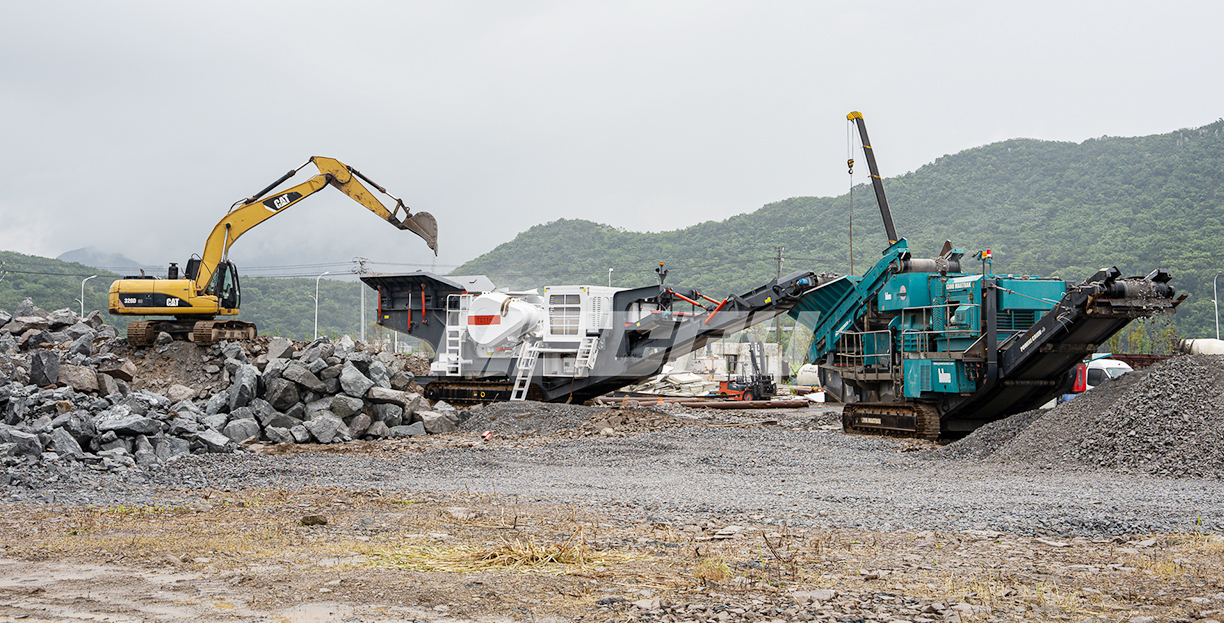

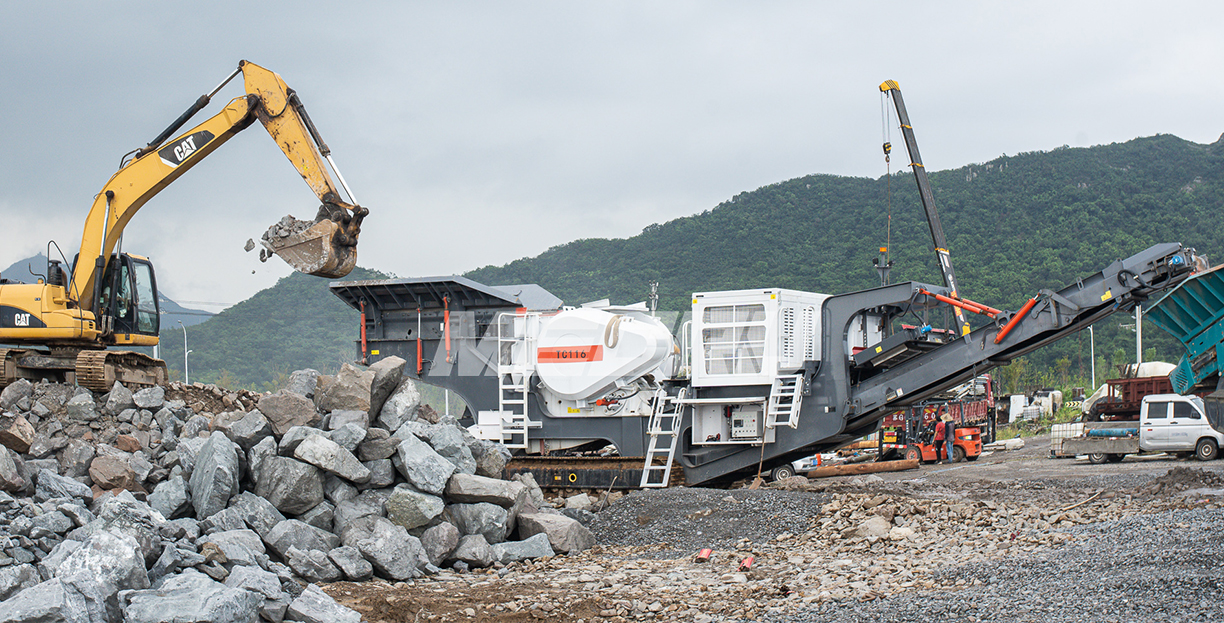

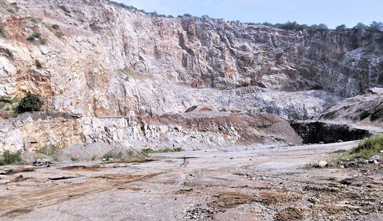

Mines and Quarries

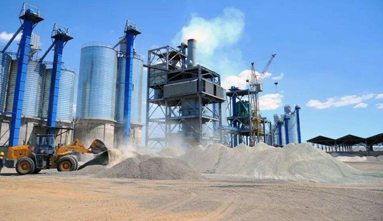

Cement Production

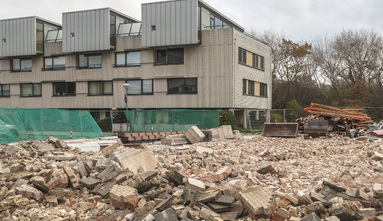

Building Construction
Road Construction

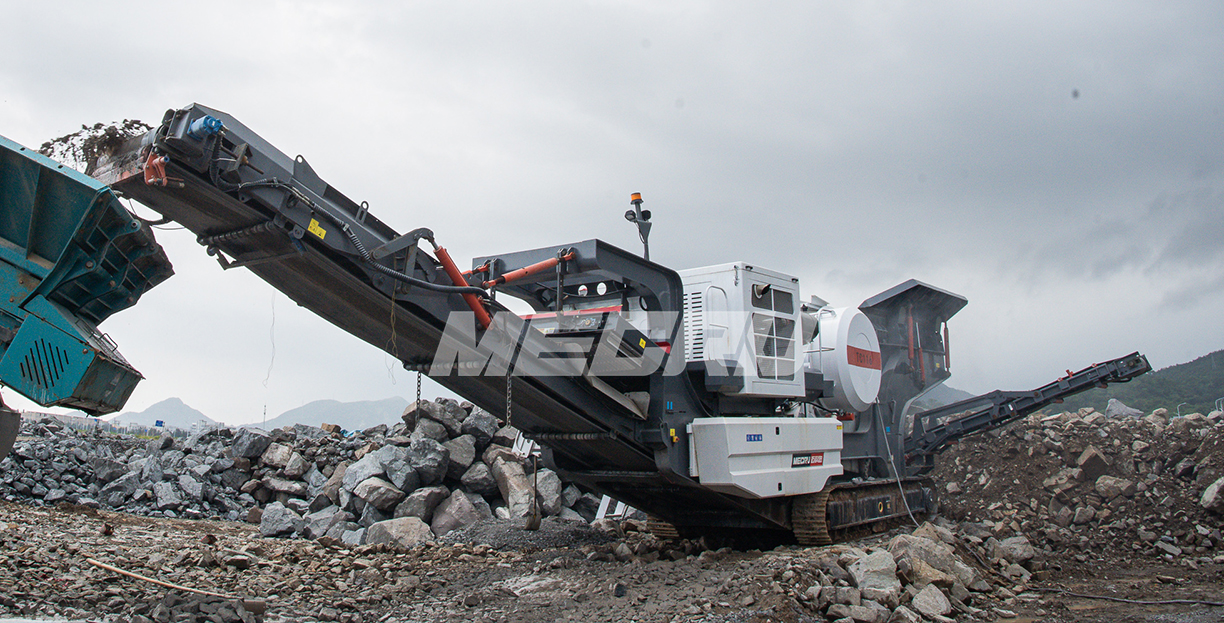

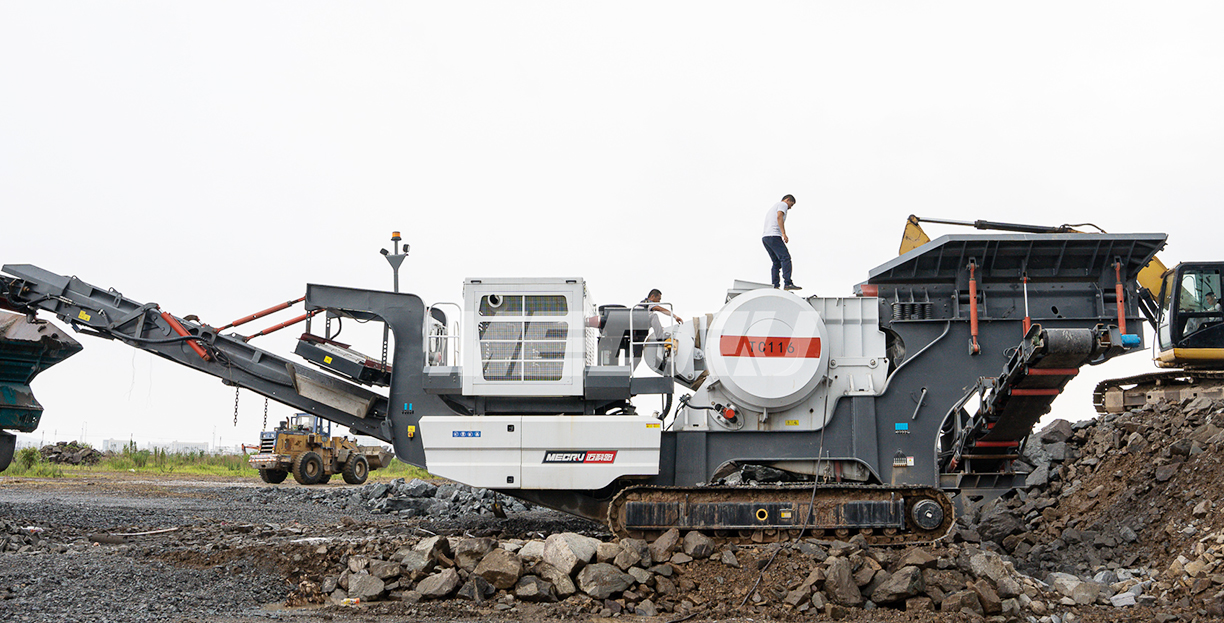

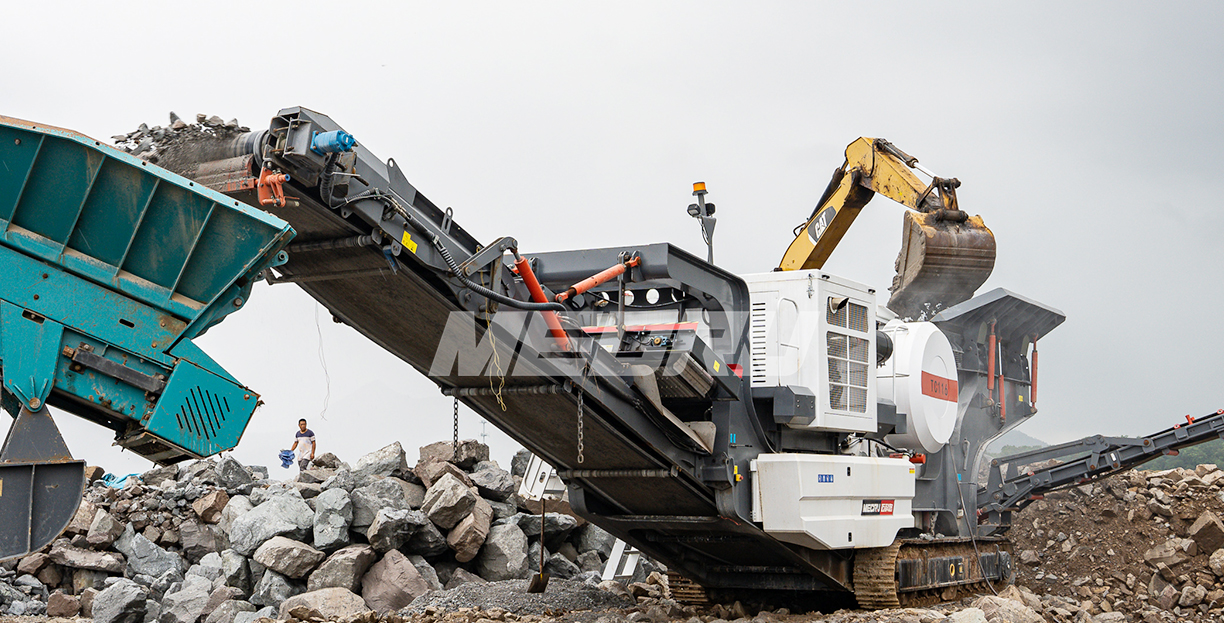

Tracked Jaw Crusher

Work Principle

The materials are evenly transported to the jaw crusher by the feeder. After the preliminary crushing by the jaw crusher, a closed-circuit system is formed through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The mobile crushing plant of jaw crusher can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It can be used together with other crushing equipment, and the operation is convenient and flexible.
