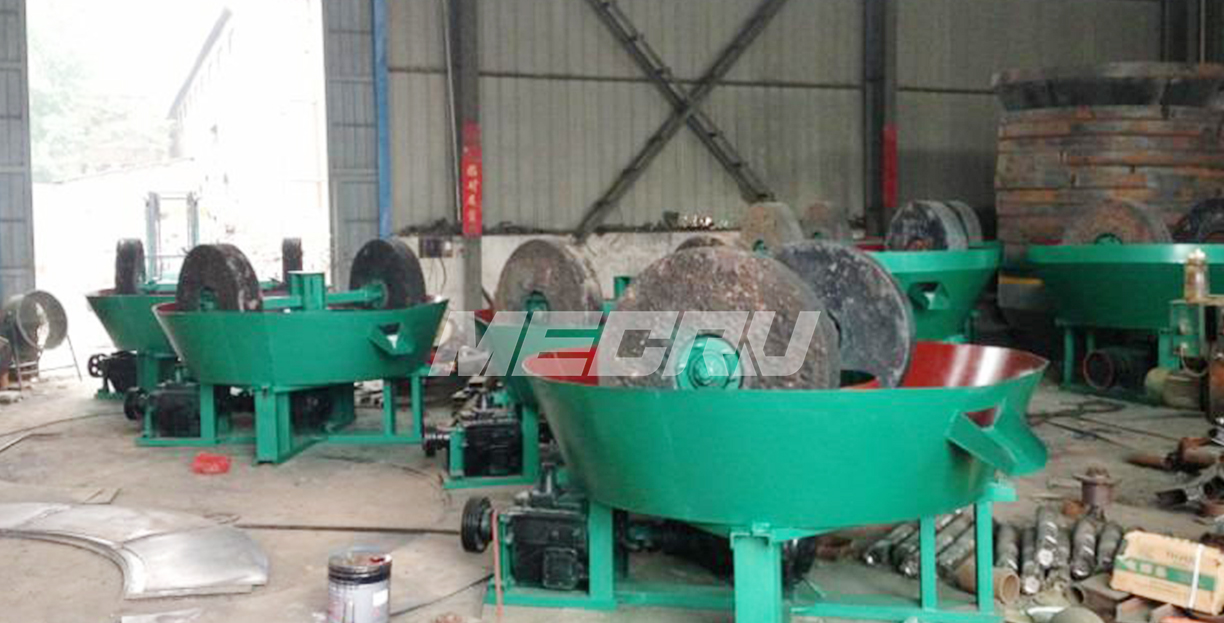

Wet Pan Mill

fixed/wheeled, mature technology

Introduction

The wet pan mill is mainly reached by the stirring, rolling, breaking and rolling of the raw materials, and the moisture ratio is uniform, low gas content, improve the molding rate and molding quality, and the material of the material, It has the characteristics of high density, good intensity, no gas hole ratio. And the mounting machine is convenient for installation, small investment, high production, fast effective, low production costs, is an ideal equipment for the mineral industry. The gold mill is mainly used for the choice of gold, silver, lead, zinc, iron, molybdenum, copper, antimony, etc., all the ball mills can be selected, the gold mill can be used.

Application Areas

Technical Parameters

ModelSpecification(mm)Feeding size(mm)magnetic pole-Power(kw)Weight(t)
1600-A1600×400×200×500±20<30mm            Y6-2514.5
1500-B1500×350×150×460±20Y6-2212.3
1500-C1500×300×150×420±20Y6-2211.3
1400-A1400×250×150×350±20Y6-18.58.5
1350-B1350×250×150×350±20Y6-18.58
1300-B1300×250×150×350±20Y4-157.5
1200-B1200×200×80×250±20Y4-7.55.5
1100-A1100×200×80×250±20Y6-7.55
1100-B1100×200×80×250±20Y4-7.55
1000-A1000×200×80×250±20Y4-5.54.5

Note:Technical parameters may change, please contact us for the latest values.

Product Advantages

Prev
Next

Work Principle

The wet pan mill is mounted on the spindle and rotates by the motor. The two rolling are movable on the horizontal axis, and both ends of the horizontal axis are supported on both bearings on both sides of the rack, and the middle is attached to the spindle through the movable sleeve. The tank of the bearing can slide upwardly from the guide slots on the rack, so that the height of the roller can be automatically up and down, and it is contemplated.

Customer Case

The case of tailings recycling in India
The case of tailings recycling in India

The customer is for iron beneficiation. Due to the expansion of the production line, the amount of tailings is also incr...

Read more
