30+ Years of Flotation Experience Accumulation and Technological Innovation

Ultra-high Concentrate Recovery

Ultra-low Reagent Cost

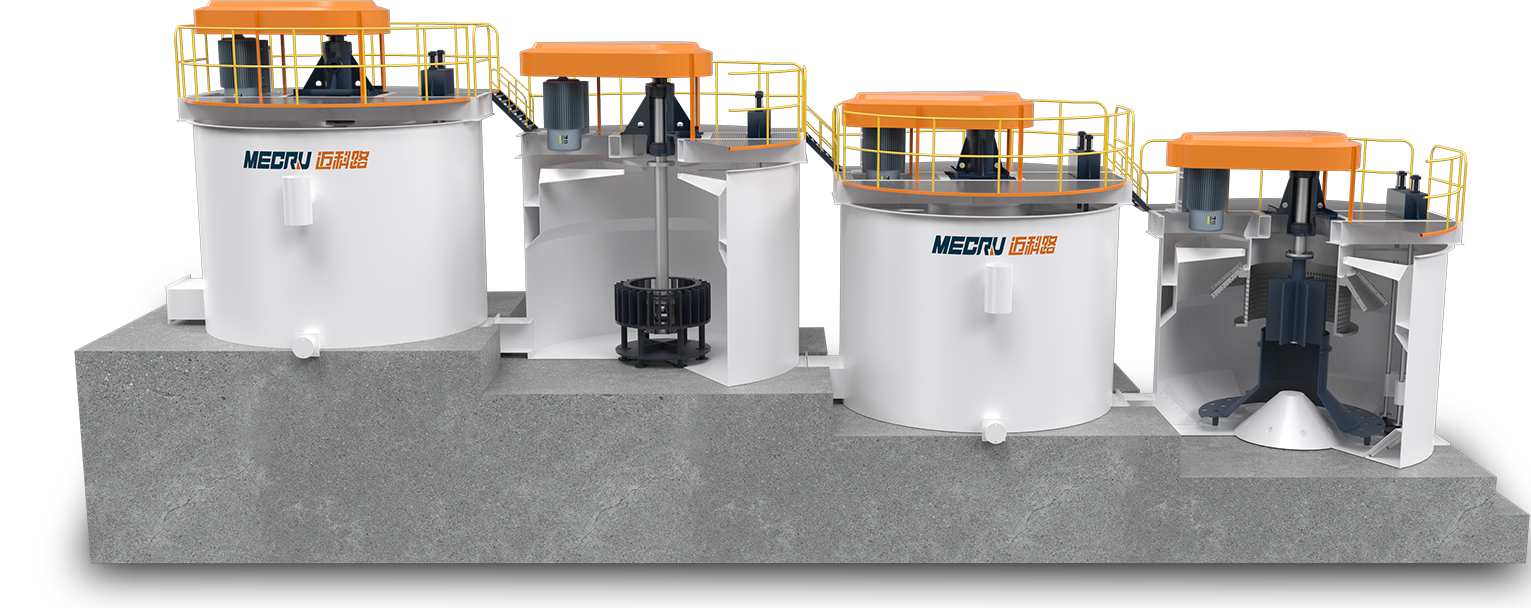

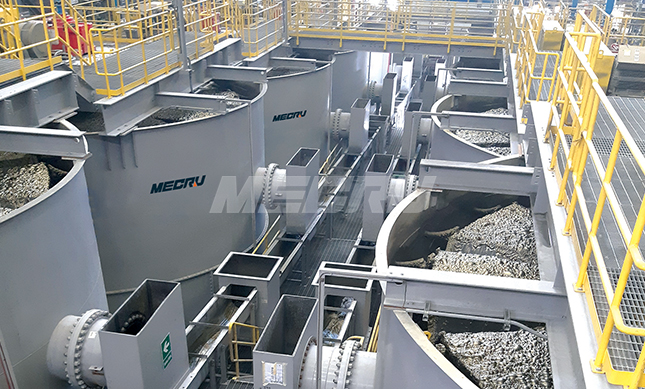

Why choose Mecru round tank flotation machine?
01

Mecru round tank flotation cell is equipped with an auxiliary overflow groove on the annular overflow weir to ensure that the upper froth can enter the overflow groove faster.

02

Mecru round tank flotation cell adopts pneumatic cone valve to control the liquid level to make the response more sensitive.

03

The tank volume of a single circular tank flotation machine is equivalent to that of multiple square tank flotation machines, which greatly simplifies the production process and reduces failure points, flotation plant area, maintenance costs and energy consumption.(When the tank volume is <5m³, SF series square tank flotation cell is recommended)

  • YFC Series Air-inflation Flotation Cell

  • YFX Series Self-aspirated Flotation Cell

   Advantages

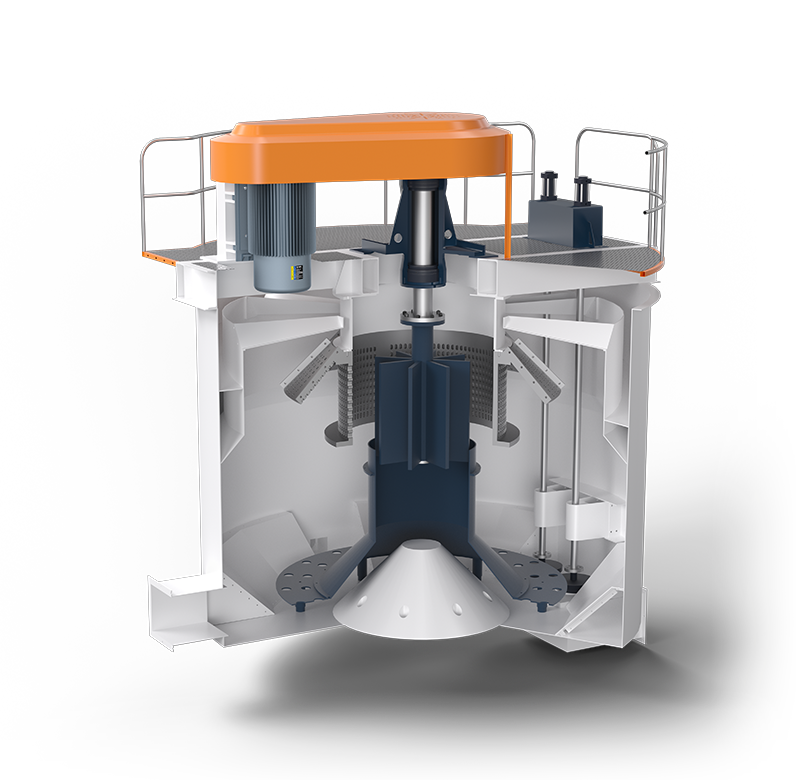

01The air does not enter the center of the rotor, but instead enters the tank from the air holes between the blades, reducing the friction between the air and the pulp in the rotor, and reducing energy consumption. At the same time, the air is thrown out by the impeller to ensure even distribution. 02The air holes are much larger than those of similar air distributors, which avoids downtime and maintenance caused by blocked air holes, reduces maintenance costs, and ensures the stability of the production line. 03The special blade structure allows the impeller to rotate in the opposite direction while ensuring the discharge volume of the impeller, which has a longer service life and lower costs.

Technical Parameters

ModelTank Volume(m³)Tank Diameter(mm)Motor Power(kw)
YFX-55215015
YFX-1010270022
YFX-1515308035
YFX-2020337037
YFX-3030380045
YFX-4040424055
YFX-5050450075
YFX-7070500090
YFX-1001005650110
YFX-1301306150132
YFX-1601606500160
YFX-2002007100200

Note:Technical parameters may change, please contact us for the latest values.

   Advantages

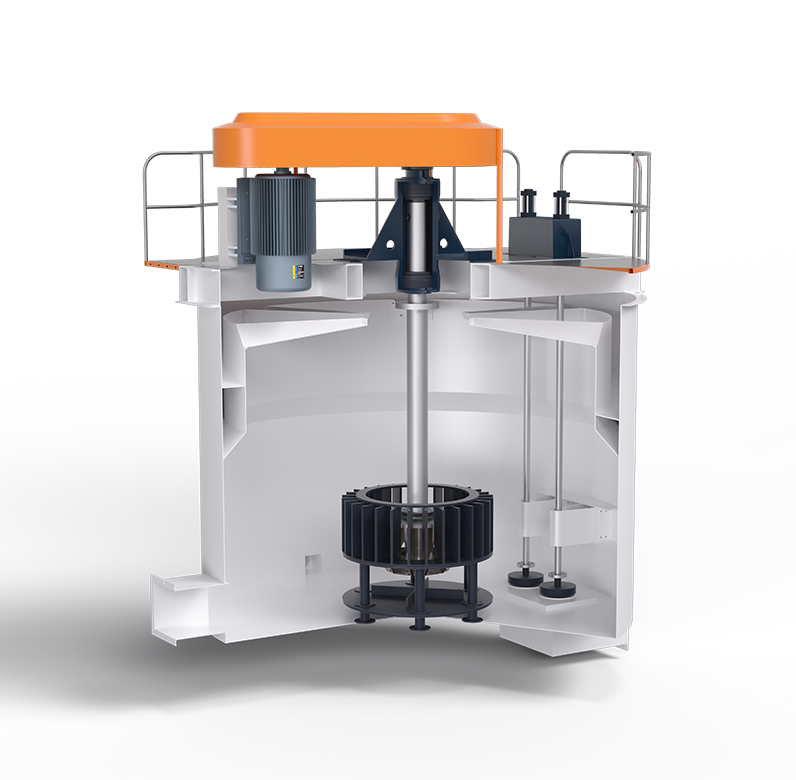

01The main shaft of Mecru YFX flotation machine is shorter than similar products, and the suction effect is stronger. 02The position of the impeller is higher, after a long time of shutdown and maintenance, the load can be started without failure. 03The flotation process is mature and reliable, and the impeller can rotate in both directions, which is suitable for most ores and has excellent flotation performance. 04The technology has been optimized, the recovery rate has been improved, and the improved control system can adapt to the changes of different feeding grades and processing volumes.

Technical Parameters

ModelTank Volume(m³)Tank Diameter(mm)Motor Power(kw)Air-inflation(m³/min)Air-inflation(kPa)
YFC-55215015317
YFC-1010270022522
YFC-1515308035725
YFC-2020337037827
YFC-30303800451031
YFC-40404240551234
YFC-50504500751538
YFC-70705000901842
YFC-10010056501102247
YFC-13013061501322751
YFC-16016065001603054
YFC-20020071002003558

Note:Technical parameters may change, please contact us for the latest values.

Case of Australian Pyrite Concentrator

90% of Australia's proven iron ore resources are concentrated in Western Australia, mainly distributed in two regions: the Pillbara region and the Midwest region.

Read more
Graphite flotation case in Henan, China

Graphite is one of the minerals bonded by elemental carbon. It has excellent properties such as light weight, high temperature resistance, thermal conductivity, electrical conductivity, lubrication

Read more
